Search › Model › XZU410

XZU410

Toyota DYNA-TOYOACE · 1999 · 4,617 parts · 215 categories

4,617 items

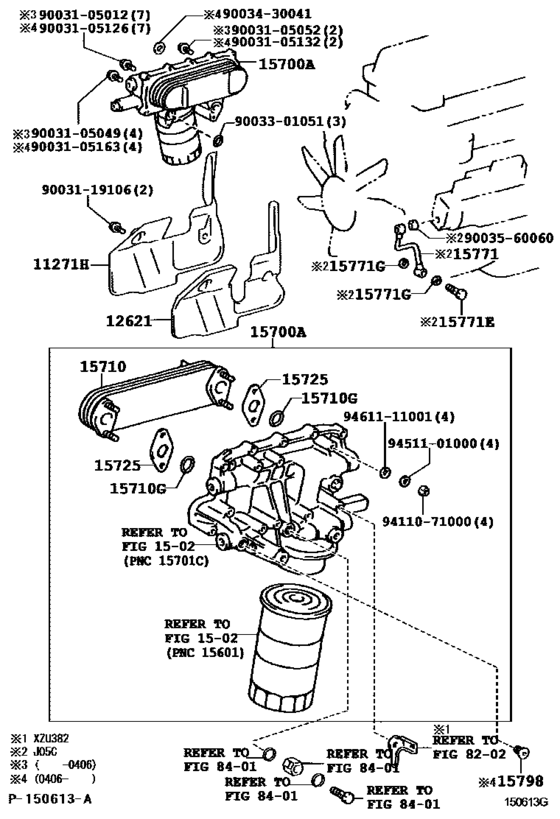

Engine Oil Cooler ([06.2002 - ] (0206- )J05C,S05#) 22

#	OEM	Part name
15700	15700-78060	Cooler Assy, Oil W/bracket
15700	15700-E0D81	Cooler Assy, Oil W/bracket
15710	15710-89102	Cooler Assy, Oil
15710	90033-01055	Ring, O, No.2
15725	15781-89101	Gasket, Oil Cooler Cover
15771	29601-78020	Pipe, Oil, No.1
15771	90034-01010	Bolt, Union(For Turbo Oil Inlet Pipe)
15771	90202-14004	Gasket(For Turbo Oil Inlet Pipe)
9003105012	90031-05012	New Genuine Part
9003105012	90031-05126	New Genuine Part
9003105049	90031-05049	New Genuine Part
9003105049	90031-05163	New Genuine Part
9003105052	90031-05052	New Genuine Part
9003105052	90031-05132	New Genuine Part
9003119106	90031-19106	New Genuine Part
9003301051	90033-01051	New Genuine Part
9003301051	90033-01102	New Genuine Part
9003430041	90034-30041	New Genuine Part
9003560060	90035-60060	New Genuine Part
9411071000	94110-71000	Nut(For Backing Plate To Rear Axle Housing Setting)
9451101000	94511-01000	Washer(For Rear Drive Shaft)
9461111001	94611-11001	Plate, Rear Seat Back Stopper

OEM	Part name	Category
15700-78060	Cooler Assy, Oil W/bracket	Engine Oil Cooler ([06.2002 - ] (0206- )J05C,S05#)
15700-E0D81	Cooler Assy, Oil W/bracket	Engine Oil Cooler ([06.2002 - ] (0206- )J05C,S05#)
15710-89102	Cooler Assy, Oil	Engine Oil Cooler ([06.2002 - ] (0206- )J05C,S05#)
15781-89101	Gasket, Oil Cooler Cover	Engine Oil Cooler ([06.2002 - ] (0206- )J05C,S05#)
29601-78020	Pipe, Oil, No.1	Engine Oil Cooler ([06.2002 - ] (0206- )J05C,S05#)
90031-05012	New Genuine Part	Engine Oil Cooler ([06.2002 - ] (0206- )J05C,S05#)
90031-05049	New Genuine Part	Engine Oil Cooler ([06.2002 - ] (0206- )J05C,S05#)
90031-05052	New Genuine Part	Engine Oil Cooler ([06.2002 - ] (0206- )J05C,S05#)
90031-05126	New Genuine Part	Engine Oil Cooler ([06.2002 - ] (0206- )J05C,S05#)
90031-05132	New Genuine Part	Engine Oil Cooler ([06.2002 - ] (0206- )J05C,S05#)
90031-05163	New Genuine Part	Engine Oil Cooler ([06.2002 - ] (0206- )J05C,S05#)
90031-19106	New Genuine Part	Engine Oil Cooler ([06.2002 - ] (0206- )J05C,S05#)
90033-01051	New Genuine Part	Engine Oil Cooler ([06.2002 - ] (0206- )J05C,S05#)
90033-01055	Ring, O, No.2	Engine Oil Cooler ([06.2002 - ] (0206- )J05C,S05#)
90033-01102	New Genuine Part	Engine Oil Cooler ([06.2002 - ] (0206- )J05C,S05#)
90034-01010	Bolt, Union(For Turbo Oil Inlet Pipe)	Engine Oil Cooler ([06.2002 - ] (0206- )J05C,S05#)
90034-30041	New Genuine Part	Engine Oil Cooler ([06.2002 - ] (0206- )J05C,S05#)
90035-60060	New Genuine Part	Engine Oil Cooler ([06.2002 - ] (0206- )J05C,S05#)
90202-14004	Gasket(For Turbo Oil Inlet Pipe)	Engine Oil Cooler ([06.2002 - ] (0206- )J05C,S05#)
94110-71000	Nut(For Backing Plate To Rear Axle Housing Setting)	Engine Oil Cooler ([06.2002 - ] (0206- )J05C,S05#)
94511-01000	Washer(For Rear Drive Shaft)	Engine Oil Cooler ([06.2002 - ] (0206- )J05C,S05#)
94611-11001	Plate, Rear Seat Back Stopper	Engine Oil Cooler ([06.2002 - ] (0206- )J05C,S05#)
