XZU410

Toyota DYNA-TOYOACE · 1999 · 4,617 parts · 215 categories
XZU410 ×

← Back to categories

4,617 items

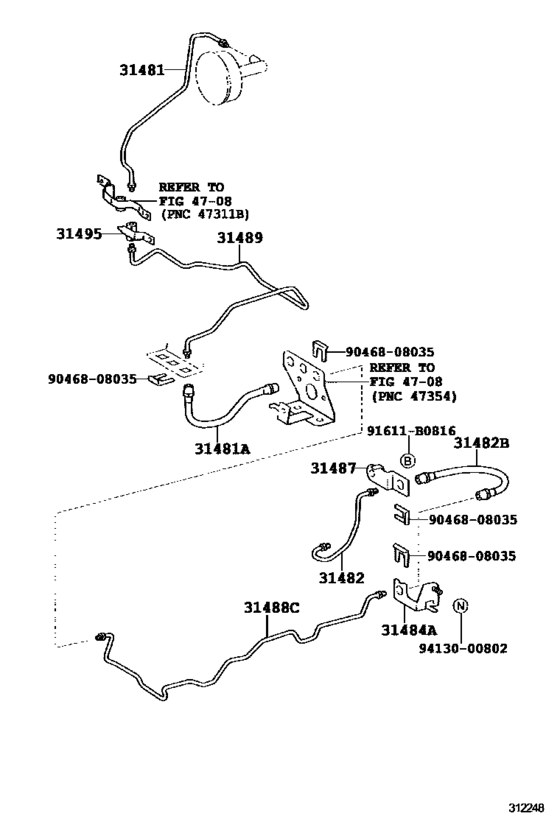

Clutch Pedal & Flexible Hose ([05.1999 - 06.2004] (9905-0406)XZU40#,410,411,412,42#,430..MTM) 17
#OEMPart name
31481 31481-37120 Tube, Clutch Master Cylinder To Flexible Hose
31481 31481-37121 Tube, Clutch Master Cylinder To Flexible Hose
31481 90931-01143 Hose, Clutch, No.1
31481 31486-37110 Hose, Clutch, No.1
31482 31482-37080 Tube, Clutch Release Cylinder To Flexible Hose
31482 90931-01142 Hose, Clutch, No.1
31482 31486-37180 Hose, Clutch, No.1
31484 31484-37180 Bracket, Flexible Hose, No.1(For Clutch)
31487 31487-37050 Plate, Release Tube Set
31488 31488-37300 Tube, Flexible Hose To Flexible Hose
31489 31481-37160 Tube, Tube Connector To Flexible Hose
31495 31495-37020 Way, Clutch Tube
91611 91611-B0816 Bolt
9046808035 90468-08035 CLIP
9046808035 90468-A0007 New Genuine Part
9413000802 94130-00802 Nut, No.1 (For Center Support Bearing)
9413000802 90170-A0001 New Genuine Part
