Search › Model › XZU402
XZU402

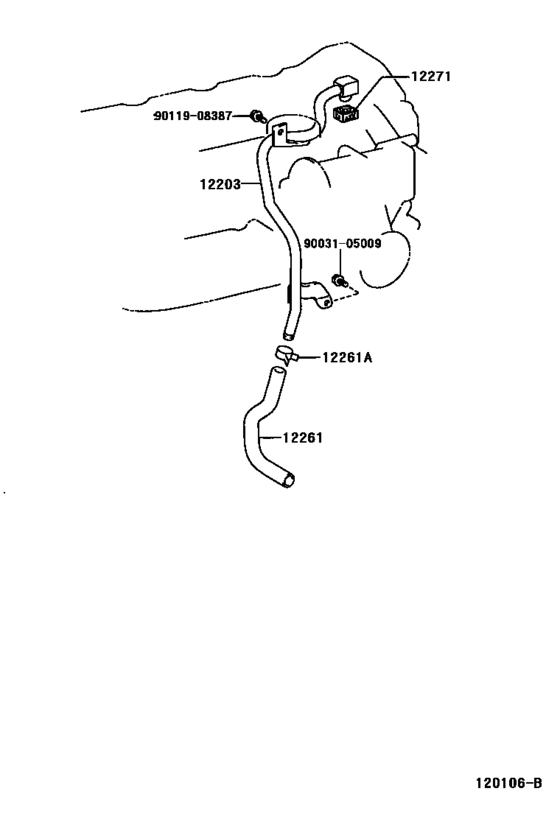

Ventilation Hose ([10.2000 - ] (0010- )) 7
| # | OEM | Part name |
|---|---|---|
| 12203 | 12203-78010 | Pipe Sub-Assy, Ventilation |
| 12261 | 90034-46032 | Hose, Ventilation |
| 12261 | 90034-67020 | Clip Or Clamp(For Ventilation Hose) |
| 12271 | 12271-78010 | Screen, Oil Separator |
| 9003105009 | 90031-05009 | Bolt(For Cylinder Head Cover) |
| 9003105009 | 90031-05123 | Bolt(For Cylinder Head Cover) |
| 9011908387 | 90119-08387 | New Genuine Part |
| OEM | Part name | Category |
|---|---|---|
| 12203-78010 | Pipe Sub-Assy, Ventilation | Ventilation Hose ([10.2000 - ] (0010- )) |
| 12271-78010 | Screen, Oil Separator | Ventilation Hose ([10.2000 - ] (0010- )) |
| 90031-05009 | Bolt(For Cylinder Head Cover) | Ventilation Hose ([10.2000 - ] (0010- )) |
| 90031-05123 | Bolt(For Cylinder Head Cover) | Ventilation Hose ([10.2000 - ] (0010- )) |
| 90034-46032 | Hose, Ventilation | Ventilation Hose ([10.2000 - ] (0010- )) |
| 90034-67020 | Clip Or Clamp(For Ventilation Hose) | Ventilation Hose ([10.2000 - ] (0010- )) |
| 90119-08387 | New Genuine Part | Ventilation Hose ([10.2000 - ] (0010- )) |
