Search › Model › XZU402
XZU402

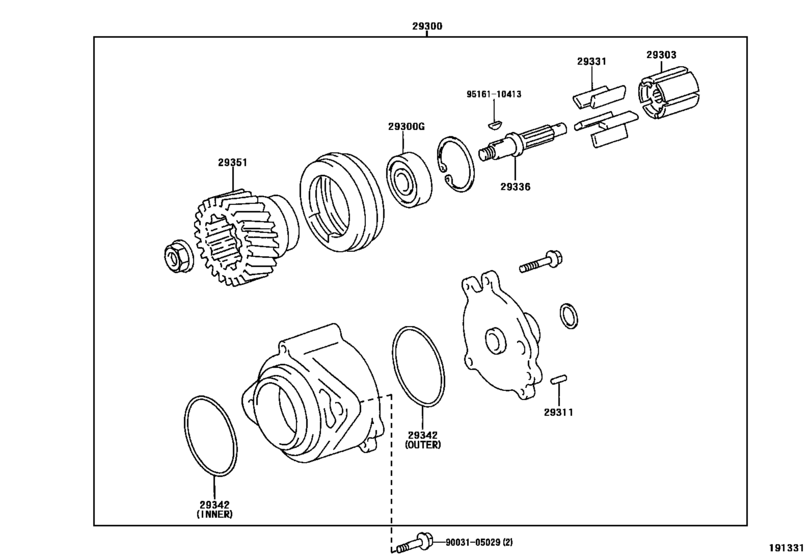

Vacuum Pump ([10.2000 - ] (0010- )) 13
| # | OEM | Part name |
|---|---|---|
| 29300 | 29300-78050 | Pump Assy, Vacuum |
| 29300 | 29300-78051 | Pump Assy, Vacuum |
| 29300 | 90099-10185 | Bearing, Ball |
| 29303 | 29303-67020 | Rotor Sub-Assy, Vacuum Pump |
| 29311 | 29311-76010 | Pin, Vacuum Pump Dowel, No.1 |
| 29331 | 29331-67020 | Blade, Vacuum Pump, A |
| 29336 | 29336-58050 | Shaft, Vacuum Pump |
| 29342 | 29342-17010 | Packing, Vacuum Pump |
| 29342 | 29342-58010 | Packing, Vacuum Pump |
| 29351 | 29351-89101 | Gear, Vacuum Pump |
| 9003105029 | 90031-05029 | Bolt(For Crankshaft Pulley Set) |
| 9003105029 | 90031-05142 | Bolt(For Crankshaft Pulley Set) |
| 9516110413 | 95161-10413 | Key(For Alternator Pulley) |
| OEM | Part name | Category |
|---|---|---|
| 29300-78050 | Pump Assy, Vacuum | Vacuum Pump ([10.2000 - ] (0010- )) |
| 29300-78051 | Pump Assy, Vacuum | Vacuum Pump ([10.2000 - ] (0010- )) |
| 29303-67020 | Rotor Sub-Assy, Vacuum Pump | Vacuum Pump ([10.2000 - ] (0010- )) |
| 29311-76010 | Pin, Vacuum Pump Dowel, No.1 | Vacuum Pump ([10.2000 - ] (0010- )) |
| 29331-67020 | Blade, Vacuum Pump, A | Vacuum Pump ([10.2000 - ] (0010- )) |
| 29336-58050 | Shaft, Vacuum Pump | Vacuum Pump ([10.2000 - ] (0010- )) |
| 29342-17010 | Packing, Vacuum Pump | Vacuum Pump ([10.2000 - ] (0010- )) |
| 29342-58010 | Packing, Vacuum Pump | Vacuum Pump ([10.2000 - ] (0010- )) |
| 29351-89101 | Gear, Vacuum Pump | Vacuum Pump ([10.2000 - ] (0010- )) |
| 90031-05029 | Bolt(For Crankshaft Pulley Set) | Vacuum Pump ([10.2000 - ] (0010- )) |
| 90031-05142 | Bolt(For Crankshaft Pulley Set) | Vacuum Pump ([10.2000 - ] (0010- )) |
| 90099-10185 | Bearing, Ball | Vacuum Pump ([10.2000 - ] (0010- )) |
| 95161-10413 | Key(For Alternator Pulley) | Vacuum Pump ([10.2000 - ] (0010- )) |
