XZU402

Toyota DYNA-TOYOACE · 1999 · 4,053 parts · 180 categories

← Back to categories

4,053 items

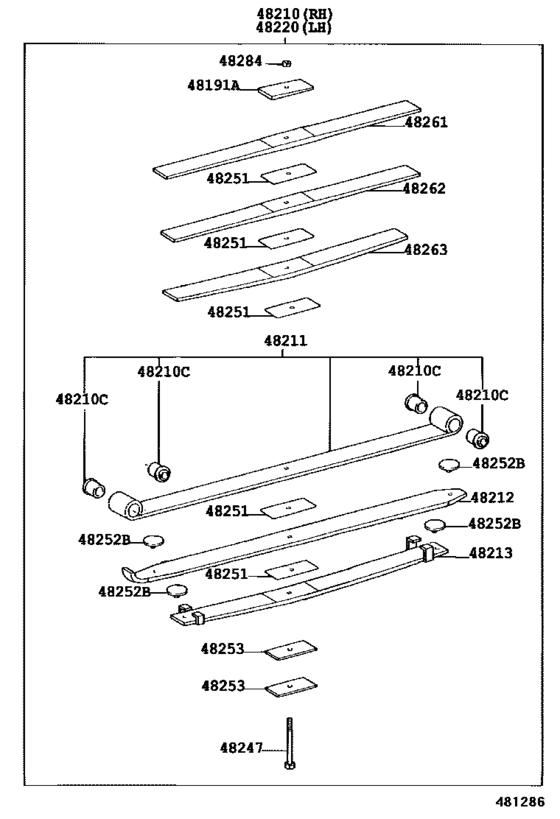

Rear Spring & Shock Absorber ([10.2000 - ] MAIN 3+HELPER 3-LEAF (0010- )XZU402,412) 15

#	OEM	Part name
48191	48192-37100	Wedge, Caster(For Rear Leaf Spring)
48210	48210-3V031	Spring Assy, Rear Rh
48210	90389-16026	Bush, Front Spring No.2 Shackle
48211	48201-3V031	Leaf, Rear Spring, No.1
48212	48212-3V031	Leaf, Rear Spring, No.2
48213	48202-3V031	Leaf, Rear Spring, No.3
48247	48247-3V031	Bolt, Rear Spring, Center
48247	48247-37F91	Bolt, Rear Spring, Center
48251	48253-3V020	Spacer, Rear Spring Leaf
48252	48252-3B800	Silencer, Front Spring, No.1
48253	48254-3V080	Spacer, Rear Spring, No.1
48261	48214-3V031	Leaf, Rear Helper Spring, No.1
48262	48215-3V031	Leaf, Rear Helper Spring, No.2
48263	48216-3V031	Leaf, Rear Helper Spring, No.3
48284	48284-3B750	Nut, Rear Spring Center Bolt

OEM	Part name	Category
48192-37100	Wedge, Caster(For Rear Leaf Spring)	Rear Spring & Shock Absorber ([10.2000 - ] MAIN 3+HELPER 3-LEAF (0010- )XZU402,412)
48201-3V031	Leaf, Rear Spring, No.1	Rear Spring & Shock Absorber ([10.2000 - ] MAIN 3+HELPER 3-LEAF (0010- )XZU402,412)
48202-3V031	Leaf, Rear Spring, No.3	Rear Spring & Shock Absorber ([10.2000 - ] MAIN 3+HELPER 3-LEAF (0010- )XZU402,412)
48210-3V031	Spring Assy, Rear Rh	Rear Spring & Shock Absorber ([10.2000 - ] MAIN 3+HELPER 3-LEAF (0010- )XZU402,412)
48212-3V031	Leaf, Rear Spring, No.2	Rear Spring & Shock Absorber ([10.2000 - ] MAIN 3+HELPER 3-LEAF (0010- )XZU402,412)
48214-3V031	Leaf, Rear Helper Spring, No.1	Rear Spring & Shock Absorber ([10.2000 - ] MAIN 3+HELPER 3-LEAF (0010- )XZU402,412)
48215-3V031	Leaf, Rear Helper Spring, No.2	Rear Spring & Shock Absorber ([10.2000 - ] MAIN 3+HELPER 3-LEAF (0010- )XZU402,412)
48216-3V031	Leaf, Rear Helper Spring, No.3	Rear Spring & Shock Absorber ([10.2000 - ] MAIN 3+HELPER 3-LEAF (0010- )XZU402,412)
48247-37F91	Bolt, Rear Spring, Center	Rear Spring & Shock Absorber ([10.2000 - ] MAIN 3+HELPER 3-LEAF (0010- )XZU402,412)
48247-3V031	Bolt, Rear Spring, Center	Rear Spring & Shock Absorber ([10.2000 - ] MAIN 3+HELPER 3-LEAF (0010- )XZU402,412)
48252-3B800	Silencer, Front Spring, No.1	Rear Spring & Shock Absorber ([10.2000 - ] MAIN 3+HELPER 3-LEAF (0010- )XZU402,412)
48253-3V020	Spacer, Rear Spring Leaf	Rear Spring & Shock Absorber ([10.2000 - ] MAIN 3+HELPER 3-LEAF (0010- )XZU402,412)
48254-3V080	Spacer, Rear Spring, No.1	Rear Spring & Shock Absorber ([10.2000 - ] MAIN 3+HELPER 3-LEAF (0010- )XZU402,412)
48284-3B750	Nut, Rear Spring Center Bolt	Rear Spring & Shock Absorber ([10.2000 - ] MAIN 3+HELPER 3-LEAF (0010- )XZU402,412)
90389-16026	Bush, Front Spring No.2 Shackle	Rear Spring & Shock Absorber ([10.2000 - ] MAIN 3+HELPER 3-LEAF (0010- )XZU402,412)
