XZU402

Toyota DYNA-TOYOACE · 1999 · 4,053 parts · 180 categories
XZU402 ×

← Back to categories

4,053 items

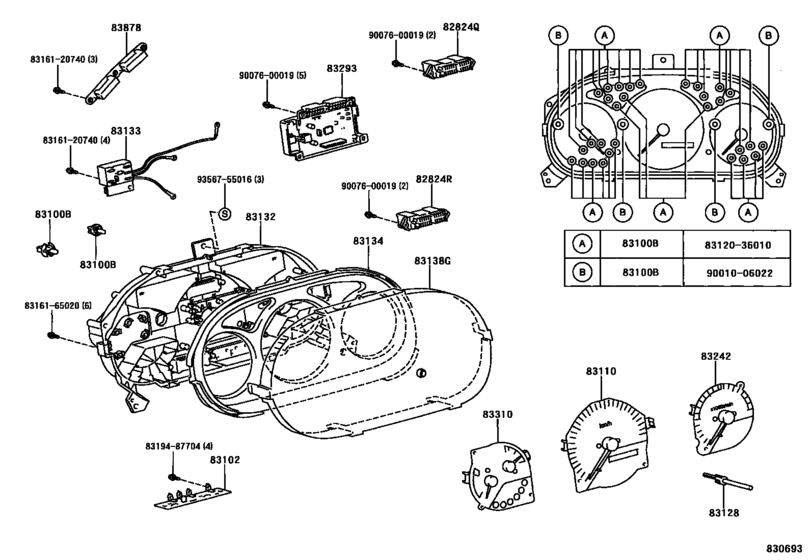

Meter ([10.2000 - ] METER (0010- )) 26
#OEMPart name
82824 82824-28130 Connector, Wiring Harness, No.1(For Speedometer)
82824 82824-28150 Connector, Wiring Harness, No.2(For Speedometer)
83100 83120-36010 Bulb, Combination Meter, No.1
83100 90010-06022 Bulb, Combination Meter, No.1
83102 83861-37250 Plate Sub-Assy, Combination Meter Circuit, No.1
83110 83220-37010 Speedometer Assy
83110 83220-37030 Speedometer Assy
83128 83224-37250 Knob, Trip Counter
83132 83841-37250 Case, Combination Meter
83132 83841-37260 Case, Combination Meter
83132 83841-37520 Case, Combination Meter
83133 83811-37250 Plate, Combination Meter, No.1
83134 83821-37250 Cover, Combination Meter, No.1
83138 83852-37250 Glass, Combination Meter
83242 83881-37251 Tachometer Assy, Engine
83293 83293-37010 Computer, Total Counter Module
83293 83293-37070 Computer, Total Counter Module
83310 83882-37250 Gage Assy, Fuel Receiver
83310 83882-37260 Gage Assy, Fuel Receiver
83878 83878-37250 Resistor, Combination Meter
8316120740 83161-20740 Case, Combination Meter Mirror, No.1
8316165020 83161-65020 Case, Combination Meter Mirror, No.1
8319487704 83194-87704 New Genuine Part
9007600019 90076-00019 New Genuine Part
9356755016 93567-55016 Screw
9356755016 93568-55016 Screw
