Search › Model › XZU402

XZU402

Toyota DYNA-TOYOACE · 1999 · 4,053 parts · 180 categories

4,053 items

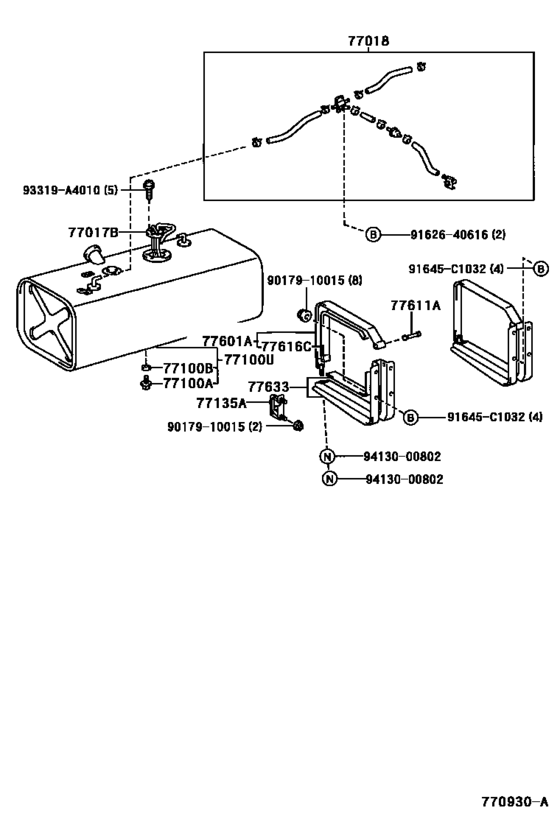

Fuel Tank & Tube ([10.2000 - ] FUEL TANK,AUSTRALIA SPEC (0010- )) 22

#	OEM	Part name
77017	77017-37010	Tube Sub-Assy, Fuel Tank Vent
77017	77017-37020	Tube Sub-Assy, Fuel Tank Vent
77018	77018-37040	Valve Sub-Assy, Fuel Vapour Separate
77018	77018-37070	Valve Sub-Assy, Fuel Vapour Separate
77100	90105-12116	Plug(For Fuel Tank)
77100	90430-12245	Gasket(For Fuel Tank)
77100	77001-36660	Tank Assy, Fuel
77100	77001-37200	Tank Sub-Assy, Fuel
77100	77001-37202	Tank Sub-Assy, Fuel
77135	77135-37100	Protector, Fuel Tank Side
77601	77601-36090	Band Sub-Assy, Fuel Tank, No.1
77601	77601-36140	Band Sub-Assy, Fuel Tank, No.1
77601	77601-37030	Band Sub-Assy, Fuel Tank, No.1
77611	77629-36010	Pin (For Fuel Tank Band)
77616	77616-36030	Band, Fuel Tank
77633	77633-37110	Stay, Fuel Tank
91645	91645-C1032	Bolt, Fuel Tank
93319	93319-A4010	SCREW WWASHER
9017910015	90179-10015	NUT
9162640616	91626-40616	New Genuine Part
9413000802	94130-00802	Nut, No.1 (For Center Support Bearing)
9413000802	90170-A0001	New Genuine Part

OEM	Part name	Category
77001-36660	Tank Assy, Fuel	Fuel Tank & Tube ([10.2000 - ] FUEL TANK,AUSTRALIA SPEC (0010- ))
77001-37200	Tank Sub-Assy, Fuel	Fuel Tank & Tube ([10.2000 - ] FUEL TANK,AUSTRALIA SPEC (0010- ))
77001-37202	Tank Sub-Assy, Fuel	Fuel Tank & Tube ([10.2000 - ] FUEL TANK,AUSTRALIA SPEC (0010- ))
77017-37010	Tube Sub-Assy, Fuel Tank Vent	Fuel Tank & Tube ([10.2000 - ] FUEL TANK,AUSTRALIA SPEC (0010- ))
77017-37020	Tube Sub-Assy, Fuel Tank Vent	Fuel Tank & Tube ([10.2000 - ] FUEL TANK,AUSTRALIA SPEC (0010- ))
77018-37040	Valve Sub-Assy, Fuel Vapour Separate	Fuel Tank & Tube ([10.2000 - ] FUEL TANK,AUSTRALIA SPEC (0010- ))
77018-37070	Valve Sub-Assy, Fuel Vapour Separate	Fuel Tank & Tube ([10.2000 - ] FUEL TANK,AUSTRALIA SPEC (0010- ))
77135-37100	Protector, Fuel Tank Side	Fuel Tank & Tube ([10.2000 - ] FUEL TANK,AUSTRALIA SPEC (0010- ))
77601-36090	Band Sub-Assy, Fuel Tank, No.1	Fuel Tank & Tube ([10.2000 - ] FUEL TANK,AUSTRALIA SPEC (0010- ))
77601-36140	Band Sub-Assy, Fuel Tank, No.1	Fuel Tank & Tube ([10.2000 - ] FUEL TANK,AUSTRALIA SPEC (0010- ))
77601-37030	Band Sub-Assy, Fuel Tank, No.1	Fuel Tank & Tube ([10.2000 - ] FUEL TANK,AUSTRALIA SPEC (0010- ))
77616-36030	Band, Fuel Tank	Fuel Tank & Tube ([10.2000 - ] FUEL TANK,AUSTRALIA SPEC (0010- ))
77629-36010	Pin (For Fuel Tank Band)	Fuel Tank & Tube ([10.2000 - ] FUEL TANK,AUSTRALIA SPEC (0010- ))
77633-37110	Stay, Fuel Tank	Fuel Tank & Tube ([10.2000 - ] FUEL TANK,AUSTRALIA SPEC (0010- ))
90105-12116	Plug(For Fuel Tank)	Fuel Tank & Tube ([10.2000 - ] FUEL TANK,AUSTRALIA SPEC (0010- ))
90170-A0001	New Genuine Part	Fuel Tank & Tube ([10.2000 - ] FUEL TANK,AUSTRALIA SPEC (0010- ))
90179-10015	NUT	Fuel Tank & Tube ([10.2000 - ] FUEL TANK,AUSTRALIA SPEC (0010- ))
90430-12245	Gasket(For Fuel Tank)	Fuel Tank & Tube ([10.2000 - ] FUEL TANK,AUSTRALIA SPEC (0010- ))
91626-40616	New Genuine Part	Fuel Tank & Tube ([10.2000 - ] FUEL TANK,AUSTRALIA SPEC (0010- ))
91645-C1032	Bolt, Fuel Tank	Fuel Tank & Tube ([10.2000 - ] FUEL TANK,AUSTRALIA SPEC (0010- ))
93319-A4010	SCREW WWASHER	Fuel Tank & Tube ([10.2000 - ] FUEL TANK,AUSTRALIA SPEC (0010- ))
94130-00802	Nut, No.1 (For Center Support Bearing)	Fuel Tank & Tube ([10.2000 - ] FUEL TANK,AUSTRALIA SPEC (0010- ))
