XZU402

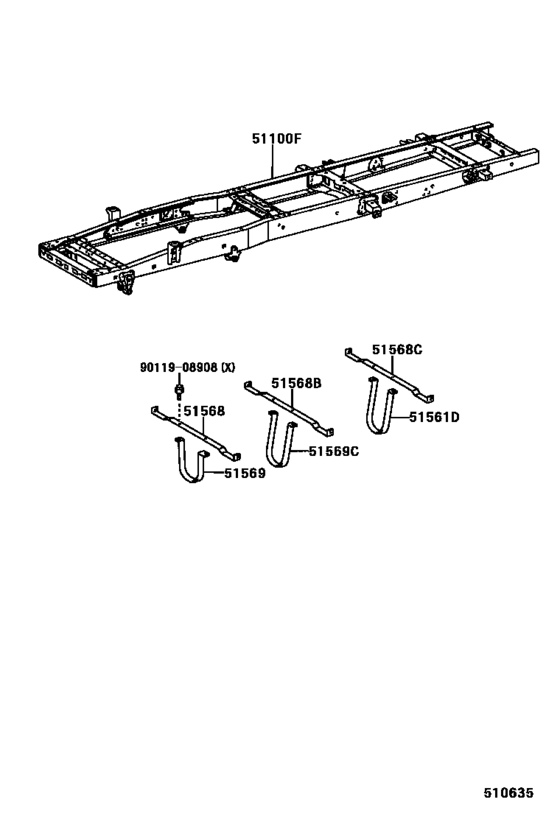

Frame ([10.2000 - ] (0010- )) 5
| # | OEM | Part name |
|---|---|---|
| 51100 | 51001-3V030 | Frame Sub-Assy |
| 51100 | 51003-37110 | Frame Sub-Assy |
| 51568 | 51568-37210 | Bracket, Propeller Shaft Guard |
| 51569 | 51569-37300 | Guard, Propeller Shaft |
| 9011908908 | 90119-08908 | BOLT WWASHER |
| OEM | Part name | Category |
|---|---|---|
| 51001-3V030 | Frame Sub-Assy | Frame ([10.2000 - ] (0010- )) |
| 51003-37110 | Frame Sub-Assy | Frame ([10.2000 - ] (0010- )) |
| 51568-37210 | Bracket, Propeller Shaft Guard | Frame ([10.2000 - ] (0010- )) |
| 51569-37300 | Guard, Propeller Shaft | Frame ([10.2000 - ] (0010- )) |
| 90119-08908 | BOLT WWASHER | Frame ([10.2000 - ] (0010- )) |
