Search › Model › XZU402

XZU402

Toyota DYNA-TOYOACE · 1999 · 4,053 parts · 180 categories

4,053 items

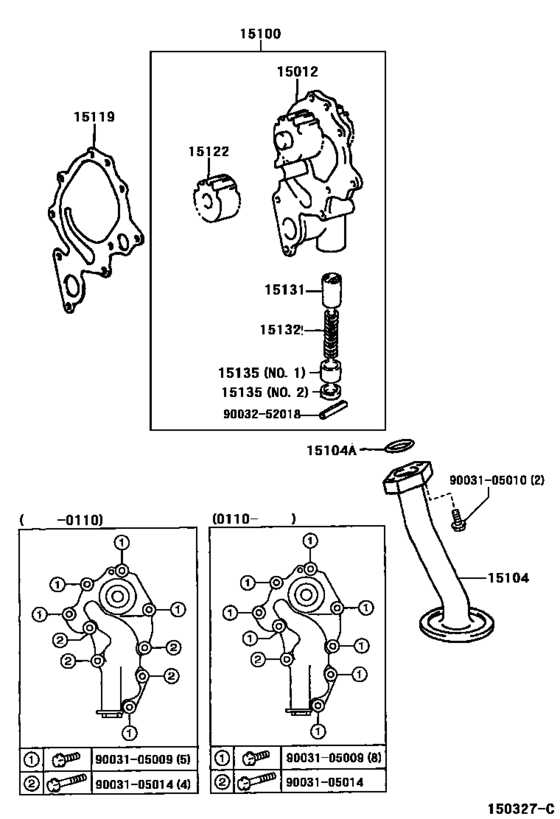

Engine Oil Pump ([10.2000 - ] (0010- )) 25

#	OEM	Part name
15012	15012-89103	Cover Sub-Assy, Oil Pump
15012	15012-89104	Cover Sub-Assy, Oil Pump
15012	15012-E0140	Cover Sub-Assy, Oil Pump
15100	15110-89105	Pump Assy, Oil
15100	15110-E0300	PUMP ASSY OIL
15100	90031-05123	Bolt(For Cylinder Head Cover)
15100	90031-05131	BOLT FLANGE
15100	15110-89106	Pump Assy, Oil
15100	15110-E0303	PUMP ASSY OIL
15104	15107-78040	Strainer Sub-Assy, Oil
15104	90033-01046	Ring, O(For Oil Strainer)
15104	90033-01103	Ring, O(For Oil Strainer)
15119	15119-89101	Gasket, Oil Pump Cover
15122	15122-89103	Gear, Oil Pump Driven
15122	15122-89105	Gear, Oil Pump Driven
15122	15103-E0080	Gear Set, Oil Pump
15131	15131-89102	Valve, Oil Pump Relief
15132	15132-78010	Spring, Oil Pump Relief Valve
15135	15165-78010	Retainer, Oil Pump Relief Valve
15135	15165-78020	Retainer, Oil Pump Relief Valve
9003105009	90031-05009	Bolt(For Cylinder Head Cover)
9003105010	90031-05010	New Genuine Part
9003105010	90031-05124	New Genuine Part
9003105014	90031-05014	New Genuine Part
9003252018	90032-52018	New Genuine Part

OEM	Part name	Category
15012-89103	Cover Sub-Assy, Oil Pump	Engine Oil Pump ([10.2000 - ] (0010- ))
15012-89104	Cover Sub-Assy, Oil Pump	Engine Oil Pump ([10.2000 - ] (0010- ))
15012-E0140	Cover Sub-Assy, Oil Pump	Engine Oil Pump ([10.2000 - ] (0010- ))
15103-E0080	Gear Set, Oil Pump	Engine Oil Pump ([10.2000 - ] (0010- ))
15107-78040	Strainer Sub-Assy, Oil	Engine Oil Pump ([10.2000 - ] (0010- ))
15110-89105	Pump Assy, Oil	Engine Oil Pump ([10.2000 - ] (0010- ))
15110-89106	Pump Assy, Oil	Engine Oil Pump ([10.2000 - ] (0010- ))
15110-E0300	PUMP ASSY OIL	Engine Oil Pump ([10.2000 - ] (0010- ))
15110-E0303	PUMP ASSY OIL	Engine Oil Pump ([10.2000 - ] (0010- ))
15119-89101	Gasket, Oil Pump Cover	Engine Oil Pump ([10.2000 - ] (0010- ))
15122-89103	Gear, Oil Pump Driven	Engine Oil Pump ([10.2000 - ] (0010- ))
15122-89105	Gear, Oil Pump Driven	Engine Oil Pump ([10.2000 - ] (0010- ))
15131-89102	Valve, Oil Pump Relief	Engine Oil Pump ([10.2000 - ] (0010- ))
15132-78010	Spring, Oil Pump Relief Valve	Engine Oil Pump ([10.2000 - ] (0010- ))
15165-78010	Retainer, Oil Pump Relief Valve	Engine Oil Pump ([10.2000 - ] (0010- ))
15165-78020	Retainer, Oil Pump Relief Valve	Engine Oil Pump ([10.2000 - ] (0010- ))
90031-05009	Bolt(For Cylinder Head Cover)	Engine Oil Pump ([10.2000 - ] (0010- ))
90031-05010	New Genuine Part	Engine Oil Pump ([10.2000 - ] (0010- ))
90031-05014	New Genuine Part	Engine Oil Pump ([10.2000 - ] (0010- ))
90031-05123	Bolt(For Cylinder Head Cover)	Engine Oil Pump ([10.2000 - ] (0010- ))
90031-05124	New Genuine Part	Engine Oil Pump ([10.2000 - ] (0010- ))
90031-05131	BOLT FLANGE	Engine Oil Pump ([10.2000 - ] (0010- ))
90032-52018	New Genuine Part	Engine Oil Pump ([10.2000 - ] (0010- ))
90033-01046	Ring, O(For Oil Strainer)	Engine Oil Pump ([10.2000 - ] (0010- ))
90033-01103	Ring, O(For Oil Strainer)	Engine Oil Pump ([10.2000 - ] (0010- ))
