Search › Model › XZU402

XZU402

Toyota DYNA-TOYOACE · 1999 · 4,053 parts · 180 categories

4,053 items

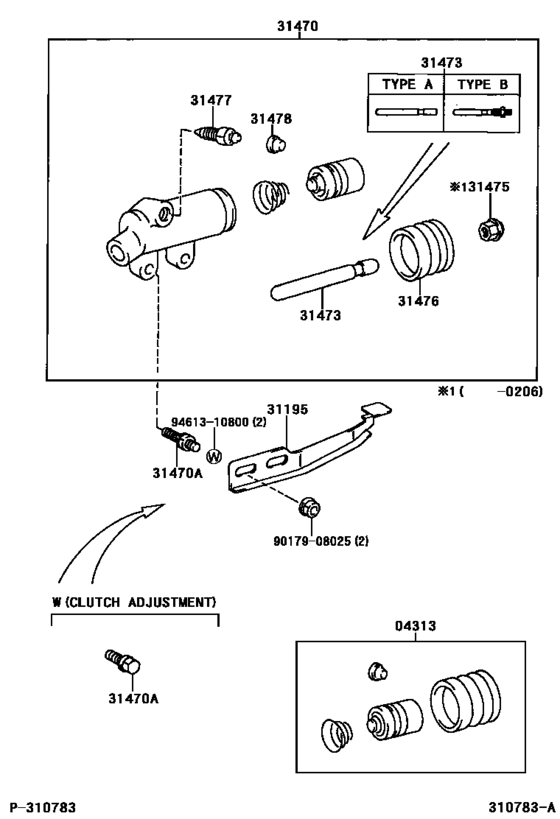

Clutch Release Cylinder ([10.2000 - ] (0010- )MTM) 20

#	OEM	Part name
4313	04313-37030	Cylinder Kit, Clutch Release
4313	04313-37040	Cylinder Kit, Clutch Release
31195	31195-37040	Plate, Clutch Disc Wear Indicator
31470	31470-37040	Cylinder Assy, Clutch Release
31470	31470-37060	Cylinder Assy, Clutch Release
31470	31470-37061	Cylinder Assy, Clutch Release
31470	90109-08248	Bolt(For Clutch Release Cylinder Setting)
31470	91611-60825	Bolt(For Head To Camshaft Bearing Cap)
31470	91611-B0825	Bolt(For Clutch Release Cylinder Setting)
31473	31473-14030	Rod, Clutch Release Cylinder Push, No.1
31473	31473-37040	Rod, Clutch Release Cylinder Push, No.1
31473	31473-37060	Rod, Clutch Release Cylinder Push, No.1
31473	31475-37030	Nut, Clutch Release Cylinder Push Rod
31473	31476-60060	Boot, Clutch Release Cylinder
31473	94120-41000	Nut(For Clutch Pedal Stopper)
31476	31476-22010	Boot, Clutch Release Cylinder
31477	47547-12010	Plug, Bleeder(For Release Cylinder)
31478	31478-30010	Bleeder Plug Cap
9017908025	90179-08025	Nut, Cap(For Cylinder Head Cover)
9461310800	94613-10800	Spacer (For Control Select Lever Support)

OEM	Part name	Category
04313-37030	Cylinder Kit, Clutch Release	Clutch Release Cylinder ([10.2000 - ] (0010- )MTM)
04313-37040	Cylinder Kit, Clutch Release	Clutch Release Cylinder ([10.2000 - ] (0010- )MTM)
31195-37040	Plate, Clutch Disc Wear Indicator	Clutch Release Cylinder ([10.2000 - ] (0010- )MTM)
31470-37040	Cylinder Assy, Clutch Release	Clutch Release Cylinder ([10.2000 - ] (0010- )MTM)
31470-37060	Cylinder Assy, Clutch Release	Clutch Release Cylinder ([10.2000 - ] (0010- )MTM)
31470-37061	Cylinder Assy, Clutch Release	Clutch Release Cylinder ([10.2000 - ] (0010- )MTM)
31473-14030	Rod, Clutch Release Cylinder Push, No.1	Clutch Release Cylinder ([10.2000 - ] (0010- )MTM)
31473-37040	Rod, Clutch Release Cylinder Push, No.1	Clutch Release Cylinder ([10.2000 - ] (0010- )MTM)
31473-37060	Rod, Clutch Release Cylinder Push, No.1	Clutch Release Cylinder ([10.2000 - ] (0010- )MTM)
31475-37030	Nut, Clutch Release Cylinder Push Rod	Clutch Release Cylinder ([10.2000 - ] (0010- )MTM)
31476-22010	Boot, Clutch Release Cylinder	Clutch Release Cylinder ([10.2000 - ] (0010- )MTM)
31476-60060	Boot, Clutch Release Cylinder	Clutch Release Cylinder ([10.2000 - ] (0010- )MTM)
31478-30010	Bleeder Plug Cap	Clutch Release Cylinder ([10.2000 - ] (0010- )MTM)
47547-12010	Plug, Bleeder(For Release Cylinder)	Clutch Release Cylinder ([10.2000 - ] (0010- )MTM)
90109-08248	Bolt(For Clutch Release Cylinder Setting)	Clutch Release Cylinder ([10.2000 - ] (0010- )MTM)
90179-08025	Nut, Cap(For Cylinder Head Cover)	Clutch Release Cylinder ([10.2000 - ] (0010- )MTM)
91611-60825	Bolt(For Head To Camshaft Bearing Cap)	Clutch Release Cylinder ([10.2000 - ] (0010- )MTM)
91611-B0825	Bolt(For Clutch Release Cylinder Setting)	Clutch Release Cylinder ([10.2000 - ] (0010- )MTM)
94120-41000	Nut(For Clutch Pedal Stopper)	Clutch Release Cylinder ([10.2000 - ] (0010- )MTM)
94613-10800	Spacer (For Control Select Lever Support)	Clutch Release Cylinder ([10.2000 - ] (0010- )MTM)

Source: Public OEM parts-catalog data
Variants: 2 / 10
Category: 180
Collected: 2026-08-03
