Search › Model › XZU402

XZU402

Toyota DYNA-TOYOACE · 1999 · 4,053 parts · 180 categories

4,053 items

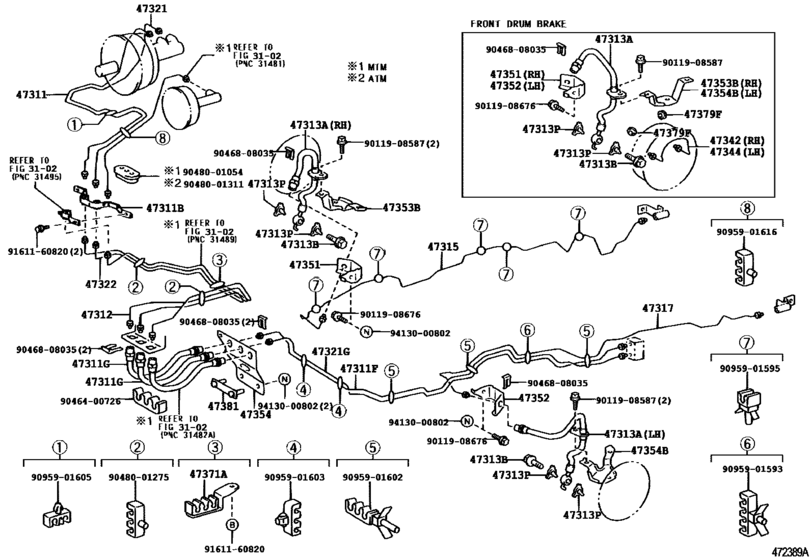

Brake Tube & Clamp ([10.2000 - ] (0010- )) 51

#	OEM	Part name
44540	44050-37010	Actuator Assy, Brake
44590	44590-37010	Bracket Assy, Brake Actuator
44592	44591-37140	Bracket, Brake Actuator, No.2
44592	44591-37142	Bracket, Brake Actuator, No.2
47311	47311-37160	Tube, Front Brake, No.1
47311	47311-37162	Tube, Front Brake, No.1
47311	47391-37020	Way, No.1(For Front Brake Tube)
47311	47311-37270	Tube, Front Brake, Frame No.1
47311	47311-37271	Tube, Front Brake, Frame No.1
47311	90947-02A79	Hose, Flexible(For Brake Tube)
47312	47312-37270	Tube, Front Brake, No.2
47313	90947-02A73	Hose, Flexible, No.1(For Front)
47313	90947-02A74	Hose, Flexible, No.1(For Front)
47313	90401-10015	Bolt, Union(For Clutch Mas Cylinder To Flexible Hose Tube)
47313	47389-30010	Gasket(For Clutch Master Cylinder To Flexible Hose Tube)
47315	47315-37170	Tube, Front Brake, No.5
47317	47317-37200	Tube, Front Brake, No.7
47321	47321-37160	Tube, Rear Brake, No.1
47321	47321-37270	Tube, Rear Brake, Frame No.1
47322	47322-37370	Tube, Rear Brake, No.2
47322	47322-37371	Tube, Rear Brake, No.2
47351	47351-37210	Bracket, Flexible Hose(For Front Rh)
47352	47352-37130	Bracket, Flexible Hose(For Front Lh)
47353	47353-37200	Bracket, Flexible Hose, No.3
47354	47354-37130	Bracket, Front Flexible Hose
47354	47354-37131	Bracket, Front Flexible Hose
47354	47354-37200	Bracket, Flexible Hose, No.4
47371	47371-37030	Clamp, Brake Tube, No.1
47381	47381-37230	Bracket, Brake Tube Clamp No.1
9009905277	90099-05277	New Genuine Part
9011908587	90119-08587	New Genuine Part
9011908587	90129-08007	New Genuine Part
9011908676	90119-08676	BOLT WWASHER
9046400726	90464-00726	Clamp, Brake Tube, No.4
9046808035	90468-08035	CLIP
9046808035	90468-A0007	New Genuine Part
9048001054	90480-01054	Grommet(For Brake Tube)
9048001275	90480-01275	Clamp, Brake Tube, No.7
9048001311	90480-01311	Grommet(For Brake Tube)
9095901593	90959-01593	Clamp, Brake Tube, No.6
9095901595	90959-01595	Clamp, Brake Tube, No.1
9095901602	90959-01602	Clamp, Brake Tube, No.6
9095901603	90959-01603	Clamp, Brake Tube, No.5
9095901605	90959-01605	New Genuine Part
9095901616	90959-01616	New Genuine Part
9161160820	91611-60820	Bolt(For Transaxle & Engine Setting)
9161160820	91611-G0820	Bolt
9164580818	91645-80818	New Genuine Part
9164580818	91641-C0814	BOLT W-WASHER
9413000802	94130-00802	Nut, No.1 (For Center Support Bearing)
9413000802	90170-A0001	New Genuine Part

OEM	Part name	Category
44050-37010	Actuator Assy, Brake	Brake Tube & Clamp ([10.2000 - ] (0010- ))
44590-37010	Bracket Assy, Brake Actuator	Brake Tube & Clamp ([10.2000 - ] (0010- ))
44591-37140	Bracket, Brake Actuator, No.2	Brake Tube & Clamp ([10.2000 - ] (0010- ))
44591-37142	Bracket, Brake Actuator, No.2	Brake Tube & Clamp ([10.2000 - ] (0010- ))
47311-37160	Tube, Front Brake, No.1	Brake Tube & Clamp ([10.2000 - ] (0010- ))
47311-37162	Tube, Front Brake, No.1	Brake Tube & Clamp ([10.2000 - ] (0010- ))
47311-37270	Tube, Front Brake, Frame No.1	Brake Tube & Clamp ([10.2000 - ] (0010- ))
47311-37271	Tube, Front Brake, Frame No.1	Brake Tube & Clamp ([10.2000 - ] (0010- ))
47312-37270	Tube, Front Brake, No.2	Brake Tube & Clamp ([10.2000 - ] (0010- ))
47315-37170	Tube, Front Brake, No.5	Brake Tube & Clamp ([10.2000 - ] (0010- ))
47317-37200	Tube, Front Brake, No.7	Brake Tube & Clamp ([10.2000 - ] (0010- ))
47321-37160	Tube, Rear Brake, No.1	Brake Tube & Clamp ([10.2000 - ] (0010- ))
47321-37270	Tube, Rear Brake, Frame No.1	Brake Tube & Clamp ([10.2000 - ] (0010- ))
47322-37370	Tube, Rear Brake, No.2	Brake Tube & Clamp ([10.2000 - ] (0010- ))
47322-37371	Tube, Rear Brake, No.2	Brake Tube & Clamp ([10.2000 - ] (0010- ))
47351-37210	Bracket, Flexible Hose(For Front Rh)	Brake Tube & Clamp ([10.2000 - ] (0010- ))
47352-37130	Bracket, Flexible Hose(For Front Lh)	Brake Tube & Clamp ([10.2000 - ] (0010- ))
47353-37200	Bracket, Flexible Hose, No.3	Brake Tube & Clamp ([10.2000 - ] (0010- ))
47354-37130	Bracket, Front Flexible Hose	Brake Tube & Clamp ([10.2000 - ] (0010- ))
47354-37131	Bracket, Front Flexible Hose	Brake Tube & Clamp ([10.2000 - ] (0010- ))
47354-37200	Bracket, Flexible Hose, No.4	Brake Tube & Clamp ([10.2000 - ] (0010- ))
47371-37030	Clamp, Brake Tube, No.1	Brake Tube & Clamp ([10.2000 - ] (0010- ))
47381-37230	Bracket, Brake Tube Clamp No.1	Brake Tube & Clamp ([10.2000 - ] (0010- ))
47389-30010	Gasket(For Clutch Master Cylinder To Flexible Hose Tube)	Brake Tube & Clamp ([10.2000 - ] (0010- ))
47391-37020	Way, No.1(For Front Brake Tube)	Brake Tube & Clamp ([10.2000 - ] (0010- ))
90099-05277	New Genuine Part	Brake Tube & Clamp ([10.2000 - ] (0010- ))
90119-08587	New Genuine Part	Brake Tube & Clamp ([10.2000 - ] (0010- ))
90119-08676	BOLT WWASHER	Brake Tube & Clamp ([10.2000 - ] (0010- ))
90129-08007	New Genuine Part	Brake Tube & Clamp ([10.2000 - ] (0010- ))
90170-A0001	New Genuine Part	Brake Tube & Clamp ([10.2000 - ] (0010- ))
90401-10015	Bolt, Union(For Clutch Mas Cylinder To Flexible Hose Tube)	Brake Tube & Clamp ([10.2000 - ] (0010- ))
90464-00726	Clamp, Brake Tube, No.4	Brake Tube & Clamp ([10.2000 - ] (0010- ))
90468-08035	CLIP	Brake Tube & Clamp ([10.2000 - ] (0010- ))
90468-A0007	New Genuine Part	Brake Tube & Clamp ([10.2000 - ] (0010- ))
90480-01054	Grommet(For Brake Tube)	Brake Tube & Clamp ([10.2000 - ] (0010- ))
90480-01275	Clamp, Brake Tube, No.7	Brake Tube & Clamp ([10.2000 - ] (0010- ))
90480-01311	Grommet(For Brake Tube)	Brake Tube & Clamp ([10.2000 - ] (0010- ))
90947-02A73	Hose, Flexible, No.1(For Front)	Brake Tube & Clamp ([10.2000 - ] (0010- ))
90947-02A74	Hose, Flexible, No.1(For Front)	Brake Tube & Clamp ([10.2000 - ] (0010- ))
90947-02A79	Hose, Flexible(For Brake Tube)	Brake Tube & Clamp ([10.2000 - ] (0010- ))
90959-01593	Clamp, Brake Tube, No.6	Brake Tube & Clamp ([10.2000 - ] (0010- ))
90959-01595	Clamp, Brake Tube, No.1	Brake Tube & Clamp ([10.2000 - ] (0010- ))
90959-01602	Clamp, Brake Tube, No.6	Brake Tube & Clamp ([10.2000 - ] (0010- ))
90959-01603	Clamp, Brake Tube, No.5	Brake Tube & Clamp ([10.2000 - ] (0010- ))
90959-01605	New Genuine Part	Brake Tube & Clamp ([10.2000 - ] (0010- ))
90959-01616	New Genuine Part	Brake Tube & Clamp ([10.2000 - ] (0010- ))
91611-60820	Bolt(For Transaxle & Engine Setting)	Brake Tube & Clamp ([10.2000 - ] (0010- ))
91611-G0820	Bolt	Brake Tube & Clamp ([10.2000 - ] (0010- ))
91641-C0814	BOLT W-WASHER	Brake Tube & Clamp ([10.2000 - ] (0010- ))
91645-80818	New Genuine Part	Brake Tube & Clamp ([10.2000 - ] (0010- ))
94130-00802	Nut, No.1 (For Center Support Bearing)	Brake Tube & Clamp ([10.2000 - ] (0010- ))
