Search › Model › XZU402

XZU402

Toyota DYNA-TOYOACE · 1999 · 4,053 parts · 180 categories
XZU402 ×

← Back to categories

4,053 items

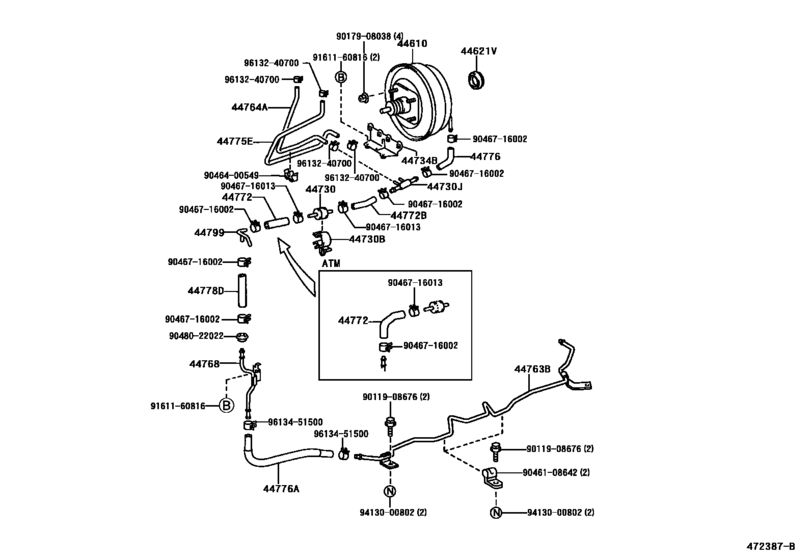

Brake Booster & Vacuum Tube ([10.2000 - ] (0010- )) 60
#OEMPart name
27690 27690-78020 Solenoid Assy, W/bracket(For Exhaust Brake)
27690 27690-78130 Solenoid Assy, W/bracket(For Exhaust Brake)
27690 27690-78021 Solenoid Assy, W/bracket(For Exhaust Brake)
27690 27690-78022 Solenoid Assy, W/bracket(For Exhaust Brake)
44610 44610-37151 Booster Assy, Brake
44621 44621-36070 Seal, Booster Body
44704 44704-37070 Reservoir Sub-Assy, Vacuum
44704 44704-37162 Reservoir Sub-Assy, Vacuum
44730 44730-20070 Valve Assy, Vacuum Check(For Brake)
44730 44730-35010 Valve Assy, Vacuum Check(For Brake)
44730 44597-37010 Clamp, Vacuum Hose
44730 44597-37020 Clamp, Vacuum Hose
44730 44597-37021 Clamp(For Clutch Booster Vacuum)
44730 90414-10043 Way(For Booster Vacuum)
44730 44730-60050 Valve Assy, Vacuum Check(For Clutch Vacuum)
44734 44734-37011 Bracket, Booster Support
44756 44756-37100 Bracket, Vacuum Reservoir
44756 44756-37170 Bracket, Vacuum Reservoir
44757 44757-37090 Bracket, Vacuum Tank Clamp, No.2
44757 44757-37091 Bracket, Vacuum Tank Clamp, No.2
44763 44764-37260 Tube, Tube Connector To Tube Connector
44764 44776-37090 Hose, Booster Vacuum
44768 44768-37150 Tube, Booster Vacuum
44768 44768-37151 Tube, Booster Vacuum
44771 95446-09300 Hose, Solenoid To Vacuum Tube
44772 44772-37020 Hose, Check Valve To Connector Tube
44772 44772-37030 Hose, Check Valve To Brake Booster
44772 44772-37060 Hose, Check Valve To Brake Booster
44773 44773-37120 Hose, Solenoid To Exhaust Retarder
44774 44774-37110 Hose, Union To Connector Tube
44775 44776-37100 Hose, Way To Connector
44776 44776-37050 Hose, Brake Booster
44776 44776-37160 Hose, Vacuum Tube Connector, No.2
44778 44778-37170 Hose, Vacuum Tube To Connector Tube
44778 44778-37171 Hose, Vacuum Tube To Connector Tube
44778 44778-37060 Hose, Solenoid To Vacuum Tube
44781 44781-37080 Bracket, Hose
44781 44781-37081 Bracket, Hose
44799 44799-37010 Way, Brake Vacuum Hose
44912 44912-37430 Tube, 3 Way To Magnetic Valve
44912 44912-37431 Tube, 3 Way To Magnetic Valve
44912 44912-37470 Tube, 3 Way To Magnetic Valve
9011908676 90119-08676 BOLT WWASHER
9017908038 90179-08038 Nut
9046108385 90461-08385 Clamp
9046108642 90461-08642 New Genuine Part
9046400549 90464-00549 New Genuine Part
9046716002 90467-16002 Clip(Vaccum Transmitting Hose No.1)
9046716002 96133-41500 Clamp Or Clip(For Air Hose, No.5)
9046716013 90467-16013 Clip(For Oil Return Hose)
9046716013 90467-16022 Clip(For Water Inlet Hose)
9048022022 90480-22022 GROMMET
9161160816 91611-60816 Screw Or Bolt(For Valve Rocker Shaft Lock)
9161160816 91611-B0816 Bolt
9164580822 91645-80822 New Genuine Part
9164580822 91641-80818 BOLT WWASHER
9413000802 94130-00802 Nut, No.1 (For Center Support Bearing)
9413000802 90170-A0001 New Genuine Part
9613240700 96132-40700 Clip(For Fuel Vapor Feed Hose)
9613451500 96134-51500 Clip(For Ventilation Hose No.2)
