XZU371

Toyota DYNA-TOYOACE · 1999 · 4,986 parts · 258 categories
XZU371 ×

← Back to categories

4,986 items

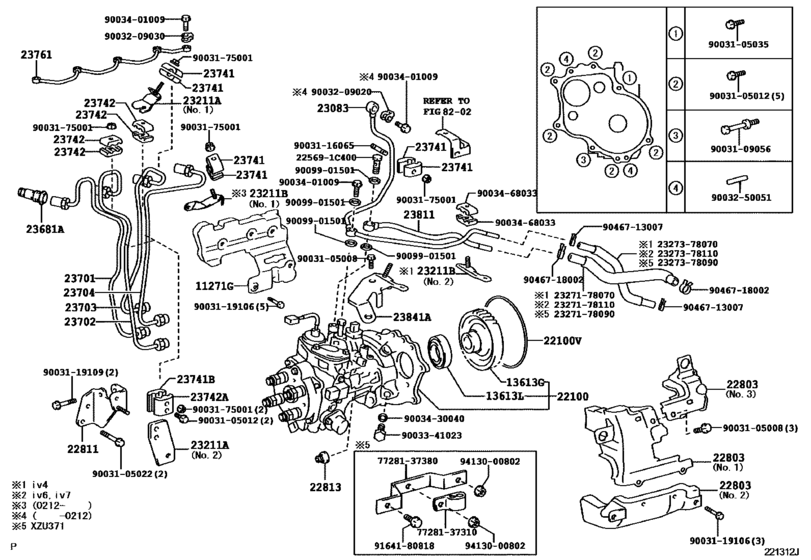

Injection Pump Assembly ([06.2002 - 06.2004] (0206-0406)S05D..XZU301,331,371..IV4,IV6,IV7) 89
#OEMPart name
11271 11271-78051 Cover, Cylinder Block Side
11271 11271-78052 Cover, Cylinder Block Side
13613 13613-78030 Gear, Injection Pump Drive
13613 13613-78080 Gear, Injection Pump Drive
13613 90033-60020 Bearing, Ball(For Injection Pump Drive Gear)
22100 22100-78060 Pump Assy, Injection Or Supply
22100 82711-1E360 Clamp, Wiring Harness
22100 22100-E0160 Pump Assy, Injection Or Supply
22100 90980-11073 New Genuine Part
22100 22100-78061 Pump Assy, Injection Or Supply
22100 22100-78062 Pump Assy, Injection Or Supply
22100 22100-78110 Pump Assy, Injection Or Supply
22100 22100-78170 Pump Assy, Injection Or Supply
22100 22100-E0200 Pump Assy, Injection Or Supply
22100 90033-01063 Ring, O(For Injection Pump)
22803 22803-78040 Cover Sub-Assy, Fuel Injection Pump
22803 22803-78043 Cover Sub-Assy, Fuel Injection Pump
22803 22803-78041 Cover Sub-Assy, Fuel Injection Pump
22803 22803-78042 Cover Sub-Assy, Fuel Injection Pump
22803 22803-78060 Cover Sub-Assy, Fuel Injection Pump
22803 22803-78061 Cover Sub-Assy, Fuel Injection Pump
22803 22803-78070 Cover Sub-Assy, Fuel Injection Pump
22803 22803-78110 Cover Sub-Assy, Fuel Injection Pump
22803 22803-78120 Cover Sub-Assy, Fuel Injection Pump
22803 22803-78130 Cover Sub-Assy, Fuel Injection Pump
22811 22801-78010 Stay, Injection Pump, No.1
22811 22801-78050 Stay, Injection Pump, No.1
22813 22813-78010 Protector, Injection Pump, No.1
23083 23803-78020 Pipe Sub-Assy, Nozzle Leakage, No.3
23083 23803-78030 Pipe Sub-Assy, Nozzle Leakage, No.3
23083 23803-78120 Pipe Sub-Assy, Nozzle Leakage, No.3
23211 23211-78020 Bracket(For Injection Pipe No.3)
23211 23211-78050 Bracket(For Injection Pipe No.3)
23211 23211-78030 Bracket(For Injection Pipe No.4)
23211 23211-78240 Bracket(For Injection Pipe No.4)
23681 23681-78010 Seal, Nozzle Holder
23681 23681-78030 SEAL NOZZLE HOLDER
23701 23701-78041 Pipe Sub-Assy, Injection, No.1
23702 23702-78040 Pipe Sub-Assy, Injection, No.2
23703 23703-78040 Pipe Sub-Assy, Injection, No.3
23703 23703-E0070 Pipe Sub-assy, Injection, No.3
23704 23704-78040 Pipe Sub-Assy, Injection, No.4
23704 23704-E0080 Pipe Sub-assy, Injection, No.4
23741 90034-68024 Clamp, Nozzle Leakage
23741 23742-78030 Clamp, Injection Pipe
23742 23742-66020 Clamp, Injection Pipe
23742 23742-78020 Clamp, Injection Pipe, No.3
23761 23761-78020 Pipe, Nozzle Leakage, No.1
23811 23811-78030 Pipe, Fuel(For Fuel Filter To Injection Pump)
23811 23811-78110 Pipe, Fuel(For Fuel Filter To Injection Pump)
225691 22569-1C400 Screw, Overflow
2327178070 23271-78070 Valve, Thermostatic Vacuum Switching, No.1
2327178090 23271-78090 Valve, Thermostatic Vacuum Switching, No.1
2327178110 23271-78110 Valve, Thermostatic Vacuum Switching, No.1
2327378070 23273-78070 Valve, Thermostatic Vacuum Switching, No.3
2327378090 23273-78090 Valve, Thermostatic Vacuum Switching, No.3
2327378110 23273-78110 Valve, Thermostatic Vacuum Switching, No.3
7728137310 77281-37310 Clamp, Fuel Tube
7728137380 77281-37380 Bracket, Fuel Main Tube, No.1
9003105008 90031-05008 Bolt(for Turbocharger Stay)
9003105012 90031-05012 New Genuine Part
9003105012 90031-05126 New Genuine Part
9003105022 90031-05022 New Genuine Part
9003105022 90031-05141 New Genuine Part
9003105035 90031-05035 New Genuine Part
9003105035 90031-05137 New Genuine Part
9003109056 90031-09056 New Genuine Part
9003116065 90031-16065 New Genuine Part
9003119106 90031-19106 New Genuine Part
9003119109 90031-19109 New Genuine Part
9003175001 90031-75001 New Genuine Part
9003209020 90032-09020 Gasket(Nozzle Lekage Pipe No.3)
9003209030 90032-09030 Gasket(For Holder & Nozzle Set)
9003209030 90032-09032 Washer(For Nozzle)
9003250051 90032-50051 New Genuine Part
9003341023 90033-41023 New Genuine Part
9003341023 90031-09023 New Genuine Part
9003401009 90034-01009 Bolt, Union(For Nozzle Lekage Pipe No.3)
9003401009 21811-E0060 Bolt, Union(For Nozzle Lekage Pipe No.3)
9003430040 90034-30040 Gasket(For Turbo Water Pipe)
9003468033 90034-68033 Clamp, Injection Pipe, No.1
9009901501 90099-01501 Ring, Feed Pump Tappet Snap
9046713007 90467-13007 Clamp Or Clip(For Water By-Pass Hose No.2)
9046713007 96132-51300 Clip(For Ventilation Hose No.2)
9046718002 90467-18002 Clip(For Ventilation Hose)
9046718002 90467-18008 Clip(For Water By-Pass Hose No.2)
9164180818 91641-80818 BOLT WWASHER
9413000802 94130-00802 Nut, No.1 (For Center Support Bearing)
9413000802 90170-A0001 New Genuine Part
