Search › Model › XZU371

XZU371

Toyota DYNA-TOYOACE · 1999 · 4,986 parts · 258 categories

4,986 items

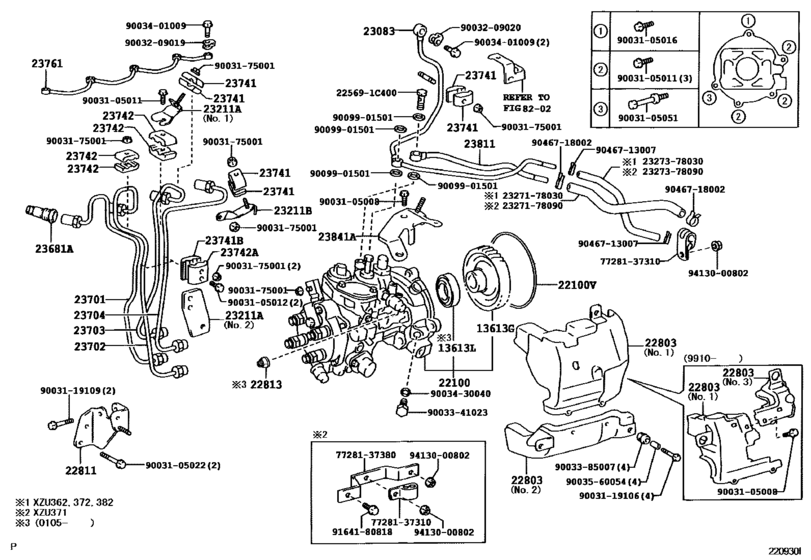

Injection Pump Assembly ([05.1999 - 10.2001] (9905-0110)S05#..XZU362,37#,382) 86

#	OEM	Part name
13613	13613-78030	Gear, Injection Pump Drive
13613	13613-78080	Gear, Injection Pump Drive
13613	90033-60020	Bearing, Ball(For Injection Pump Drive Gear)
22100	22100-78060	Pump Assy, Injection Or Supply
22100	82711-1E360	Clamp, Wiring Harness
22100	22100-E0160	Pump Assy, Injection Or Supply
22100	90980-11073	New Genuine Part
22100	22100-78061	Pump Assy, Injection Or Supply
22100	22100-78062	Pump Assy, Injection Or Supply
22100	22100-78110	Pump Assy, Injection Or Supply
22100	22100-78170	Pump Assy, Injection Or Supply
22100	22100-E0200	Pump Assy, Injection Or Supply
22100	90033-01063	Ring, O(For Injection Pump)
22803	22803-78040	Cover Sub-Assy, Fuel Injection Pump
22803	22803-78043	Cover Sub-Assy, Fuel Injection Pump
22803	22803-78041	Cover Sub-Assy, Fuel Injection Pump
22803	22803-78042	Cover Sub-Assy, Fuel Injection Pump
22803	22803-78060	Cover Sub-Assy, Fuel Injection Pump
22803	22803-78061	Cover Sub-Assy, Fuel Injection Pump
22803	22803-78070	Cover Sub-Assy, Fuel Injection Pump
22803	22803-78110	Cover Sub-Assy, Fuel Injection Pump
22803	22803-78120	Cover Sub-Assy, Fuel Injection Pump
22803	22803-78130	Cover Sub-Assy, Fuel Injection Pump
22811	22801-78010	Stay, Injection Pump, No.1
22811	22801-78050	Stay, Injection Pump, No.1
22813	22813-78010	Protector, Injection Pump, No.1
23083	23803-78020	Pipe Sub-Assy, Nozzle Leakage, No.3
23083	23803-78030	Pipe Sub-Assy, Nozzle Leakage, No.3
23083	23803-78120	Pipe Sub-Assy, Nozzle Leakage, No.3
23211	23211-78020	Bracket(For Injection Pipe No.3)
23211	23211-78050	Bracket(For Injection Pipe No.3)
23211	23211-78030	Bracket(For Injection Pipe No.4)
23211	23211-78240	Bracket(For Injection Pipe No.4)
23681	23681-78010	Seal, Nozzle Holder
23681	23681-78030	SEAL NOZZLE HOLDER
23701	23701-78041	Pipe Sub-Assy, Injection, No.1
23702	23702-78040	Pipe Sub-Assy, Injection, No.2
23703	23703-78040	Pipe Sub-Assy, Injection, No.3
23703	23703-E0070	Pipe Sub-assy, Injection, No.3
23704	23704-78040	Pipe Sub-Assy, Injection, No.4
23704	23704-E0080	Pipe Sub-assy, Injection, No.4
23741	90034-68024	Clamp, Nozzle Leakage
23741	23742-78030	Clamp, Injection Pipe
23742	23742-66020	Clamp, Injection Pipe
23742	23742-78020	Clamp, Injection Pipe, No.3
23761	23761-78020	Pipe, Nozzle Leakage, No.1
23811	23811-78030	Pipe, Fuel(For Fuel Filter To Injection Pump)
23811	23811-78110	Pipe, Fuel(For Fuel Filter To Injection Pump)
225691	22569-1C400	Screw, Overflow
2327178030	23271-78030	Valve, Thermostatic Vacuum Switching, No.1
2327178090	23271-78090	Valve, Thermostatic Vacuum Switching, No.1
2327378030	23273-78030	Valve, Thermostatic Vacuum Switching, No.3
2327378090	23273-78090	Valve, Thermostatic Vacuum Switching, No.3
7728137310	77281-37310	Clamp, Fuel Tube
7728137380	77281-37380	Bracket, Fuel Main Tube, No.1
9003105008	90031-05008	Bolt(for Turbocharger Stay)
9003105011	90031-05011	New Genuine Part
9003105011	90031-05125	New Genuine Part
9003105012	90031-05012	New Genuine Part
9003105012	90031-05126	New Genuine Part
9003105016	90031-05016	New Genuine Part
9003105016	90031-05138	New Genuine Part
9003105022	90031-05022	New Genuine Part
9003105022	90031-05141	New Genuine Part
9003105051	90031-05051	New Genuine Part
9003105051	90031-05127	New Genuine Part
9003119106	90031-19106	New Genuine Part
9003119109	90031-19109	New Genuine Part
9003175001	90031-75001	New Genuine Part
9003209019	90032-09019	New Genuine Part
9003209020	90032-09020	Gasket(Nozzle Lekage Pipe No.3)
9003341023	90033-41023	New Genuine Part
9003341023	90031-09023	New Genuine Part
9003385007	90033-85007	New Genuine Part
9003401009	90034-01009	Bolt, Union(For Nozzle Lekage Pipe No.3)
9003401009	21811-E0060	Bolt, Union(For Nozzle Lekage Pipe No.3)
9003430040	90034-30040	Gasket(For Turbo Water Pipe)
9003560054	90035-60054	New Genuine Part
9009901501	90099-01501	Ring, Feed Pump Tappet Snap
9046713007	90467-13007	Clamp Or Clip(For Water By-Pass Hose No.2)
9046713007	96132-51300	Clip(For Ventilation Hose No.2)
9046718002	90467-18002	Clip(For Ventilation Hose)
9046718002	90467-18008	Clip(For Water By-Pass Hose No.2)
9164180818	91641-80818	BOLT WWASHER
9413000802	94130-00802	Nut, No.1 (For Center Support Bearing)
9413000802	90170-A0001	New Genuine Part

OEM	Part name	Category
13613-78030	Gear, Injection Pump Drive	Injection Pump Assembly ([05.1999 - 10.2001] (9905-0110)S05#..XZU362,37#,382)
13613-78080	Gear, Injection Pump Drive	Injection Pump Assembly ([05.1999 - 10.2001] (9905-0110)S05#..XZU362,37#,382)
21811-E0060	Bolt, Union(For Nozzle Lekage Pipe No.3)	Injection Pump Assembly ([05.1999 - 10.2001] (9905-0110)S05#..XZU362,37#,382)
22100-78060	Pump Assy, Injection Or Supply	Injection Pump Assembly ([05.1999 - 10.2001] (9905-0110)S05#..XZU362,37#,382)
22100-78061	Pump Assy, Injection Or Supply	Injection Pump Assembly ([05.1999 - 10.2001] (9905-0110)S05#..XZU362,37#,382)
22100-78062	Pump Assy, Injection Or Supply	Injection Pump Assembly ([05.1999 - 10.2001] (9905-0110)S05#..XZU362,37#,382)
22100-78110	Pump Assy, Injection Or Supply	Injection Pump Assembly ([05.1999 - 10.2001] (9905-0110)S05#..XZU362,37#,382)
22100-78170	Pump Assy, Injection Or Supply	Injection Pump Assembly ([05.1999 - 10.2001] (9905-0110)S05#..XZU362,37#,382)
22100-E0160	Pump Assy, Injection Or Supply	Injection Pump Assembly ([05.1999 - 10.2001] (9905-0110)S05#..XZU362,37#,382)
22100-E0200	Pump Assy, Injection Or Supply	Injection Pump Assembly ([05.1999 - 10.2001] (9905-0110)S05#..XZU362,37#,382)
22569-1C400	Screw, Overflow	Injection Pump Assembly ([05.1999 - 10.2001] (9905-0110)S05#..XZU362,37#,382)
22801-78010	Stay, Injection Pump, No.1	Injection Pump Assembly ([05.1999 - 10.2001] (9905-0110)S05#..XZU362,37#,382)
22801-78050	Stay, Injection Pump, No.1	Injection Pump Assembly ([05.1999 - 10.2001] (9905-0110)S05#..XZU362,37#,382)
22803-78040	Cover Sub-Assy, Fuel Injection Pump	Injection Pump Assembly ([05.1999 - 10.2001] (9905-0110)S05#..XZU362,37#,382)
22803-78041	Cover Sub-Assy, Fuel Injection Pump	Injection Pump Assembly ([05.1999 - 10.2001] (9905-0110)S05#..XZU362,37#,382)
22803-78042	Cover Sub-Assy, Fuel Injection Pump	Injection Pump Assembly ([05.1999 - 10.2001] (9905-0110)S05#..XZU362,37#,382)
22803-78043	Cover Sub-Assy, Fuel Injection Pump	Injection Pump Assembly ([05.1999 - 10.2001] (9905-0110)S05#..XZU362,37#,382)
22803-78060	Cover Sub-Assy, Fuel Injection Pump	Injection Pump Assembly ([05.1999 - 10.2001] (9905-0110)S05#..XZU362,37#,382)
22803-78061	Cover Sub-Assy, Fuel Injection Pump	Injection Pump Assembly ([05.1999 - 10.2001] (9905-0110)S05#..XZU362,37#,382)
22803-78070	Cover Sub-Assy, Fuel Injection Pump	Injection Pump Assembly ([05.1999 - 10.2001] (9905-0110)S05#..XZU362,37#,382)
22803-78110	Cover Sub-Assy, Fuel Injection Pump	Injection Pump Assembly ([05.1999 - 10.2001] (9905-0110)S05#..XZU362,37#,382)
22803-78120	Cover Sub-Assy, Fuel Injection Pump	Injection Pump Assembly ([05.1999 - 10.2001] (9905-0110)S05#..XZU362,37#,382)
22803-78130	Cover Sub-Assy, Fuel Injection Pump	Injection Pump Assembly ([05.1999 - 10.2001] (9905-0110)S05#..XZU362,37#,382)
22813-78010	Protector, Injection Pump, No.1	Injection Pump Assembly ([05.1999 - 10.2001] (9905-0110)S05#..XZU362,37#,382)
23211-78020	Bracket(For Injection Pipe No.3)	Injection Pump Assembly ([05.1999 - 10.2001] (9905-0110)S05#..XZU362,37#,382)
23211-78030	Bracket(For Injection Pipe No.4)	Injection Pump Assembly ([05.1999 - 10.2001] (9905-0110)S05#..XZU362,37#,382)
23211-78050	Bracket(For Injection Pipe No.3)	Injection Pump Assembly ([05.1999 - 10.2001] (9905-0110)S05#..XZU362,37#,382)
23211-78240	Bracket(For Injection Pipe No.4)	Injection Pump Assembly ([05.1999 - 10.2001] (9905-0110)S05#..XZU362,37#,382)
23271-78030	Valve, Thermostatic Vacuum Switching, No.1	Injection Pump Assembly ([05.1999 - 10.2001] (9905-0110)S05#..XZU362,37#,382)
23271-78090	Valve, Thermostatic Vacuum Switching, No.1	Injection Pump Assembly ([05.1999 - 10.2001] (9905-0110)S05#..XZU362,37#,382)
23273-78030	Valve, Thermostatic Vacuum Switching, No.3	Injection Pump Assembly ([05.1999 - 10.2001] (9905-0110)S05#..XZU362,37#,382)
23273-78090	Valve, Thermostatic Vacuum Switching, No.3	Injection Pump Assembly ([05.1999 - 10.2001] (9905-0110)S05#..XZU362,37#,382)
23681-78010	Seal, Nozzle Holder	Injection Pump Assembly ([05.1999 - 10.2001] (9905-0110)S05#..XZU362,37#,382)
23681-78030	SEAL NOZZLE HOLDER	Injection Pump Assembly ([05.1999 - 10.2001] (9905-0110)S05#..XZU362,37#,382)
23701-78041	Pipe Sub-Assy, Injection, No.1	Injection Pump Assembly ([05.1999 - 10.2001] (9905-0110)S05#..XZU362,37#,382)
23702-78040	Pipe Sub-Assy, Injection, No.2	Injection Pump Assembly ([05.1999 - 10.2001] (9905-0110)S05#..XZU362,37#,382)
23703-78040	Pipe Sub-Assy, Injection, No.3	Injection Pump Assembly ([05.1999 - 10.2001] (9905-0110)S05#..XZU362,37#,382)
23703-E0070	Pipe Sub-assy, Injection, No.3	Injection Pump Assembly ([05.1999 - 10.2001] (9905-0110)S05#..XZU362,37#,382)
23704-78040	Pipe Sub-Assy, Injection, No.4	Injection Pump Assembly ([05.1999 - 10.2001] (9905-0110)S05#..XZU362,37#,382)
23704-E0080	Pipe Sub-assy, Injection, No.4	Injection Pump Assembly ([05.1999 - 10.2001] (9905-0110)S05#..XZU362,37#,382)
23742-66020	Clamp, Injection Pipe	Injection Pump Assembly ([05.1999 - 10.2001] (9905-0110)S05#..XZU362,37#,382)
23742-78020	Clamp, Injection Pipe, No.3	Injection Pump Assembly ([05.1999 - 10.2001] (9905-0110)S05#..XZU362,37#,382)
23742-78030	Clamp, Injection Pipe	Injection Pump Assembly ([05.1999 - 10.2001] (9905-0110)S05#..XZU362,37#,382)
23761-78020	Pipe, Nozzle Leakage, No.1	Injection Pump Assembly ([05.1999 - 10.2001] (9905-0110)S05#..XZU362,37#,382)
23803-78020	Pipe Sub-Assy, Nozzle Leakage, No.3	Injection Pump Assembly ([05.1999 - 10.2001] (9905-0110)S05#..XZU362,37#,382)
23803-78030	Pipe Sub-Assy, Nozzle Leakage, No.3	Injection Pump Assembly ([05.1999 - 10.2001] (9905-0110)S05#..XZU362,37#,382)
23803-78120	Pipe Sub-Assy, Nozzle Leakage, No.3	Injection Pump Assembly ([05.1999 - 10.2001] (9905-0110)S05#..XZU362,37#,382)
23811-78030	Pipe, Fuel(For Fuel Filter To Injection Pump)	Injection Pump Assembly ([05.1999 - 10.2001] (9905-0110)S05#..XZU362,37#,382)
23811-78110	Pipe, Fuel(For Fuel Filter To Injection Pump)	Injection Pump Assembly ([05.1999 - 10.2001] (9905-0110)S05#..XZU362,37#,382)
77281-37310	Clamp, Fuel Tube	Injection Pump Assembly ([05.1999 - 10.2001] (9905-0110)S05#..XZU362,37#,382)
77281-37380	Bracket, Fuel Main Tube, No.1	Injection Pump Assembly ([05.1999 - 10.2001] (9905-0110)S05#..XZU362,37#,382)
82711-1E360	Clamp, Wiring Harness	Injection Pump Assembly ([05.1999 - 10.2001] (9905-0110)S05#..XZU362,37#,382)
90031-05008	Bolt(for Turbocharger Stay)	Injection Pump Assembly ([05.1999 - 10.2001] (9905-0110)S05#..XZU362,37#,382)
90031-05011	New Genuine Part	Injection Pump Assembly ([05.1999 - 10.2001] (9905-0110)S05#..XZU362,37#,382)
90031-05012	New Genuine Part	Injection Pump Assembly ([05.1999 - 10.2001] (9905-0110)S05#..XZU362,37#,382)
90031-05016	New Genuine Part	Injection Pump Assembly ([05.1999 - 10.2001] (9905-0110)S05#..XZU362,37#,382)
90031-05022	New Genuine Part	Injection Pump Assembly ([05.1999 - 10.2001] (9905-0110)S05#..XZU362,37#,382)
90031-05051	New Genuine Part	Injection Pump Assembly ([05.1999 - 10.2001] (9905-0110)S05#..XZU362,37#,382)
90031-05125	New Genuine Part	Injection Pump Assembly ([05.1999 - 10.2001] (9905-0110)S05#..XZU362,37#,382)
90031-05126	New Genuine Part	Injection Pump Assembly ([05.1999 - 10.2001] (9905-0110)S05#..XZU362,37#,382)
90031-05127	New Genuine Part	Injection Pump Assembly ([05.1999 - 10.2001] (9905-0110)S05#..XZU362,37#,382)
90031-05138	New Genuine Part	Injection Pump Assembly ([05.1999 - 10.2001] (9905-0110)S05#..XZU362,37#,382)
90031-05141	New Genuine Part	Injection Pump Assembly ([05.1999 - 10.2001] (9905-0110)S05#..XZU362,37#,382)
90031-09023	New Genuine Part	Injection Pump Assembly ([05.1999 - 10.2001] (9905-0110)S05#..XZU362,37#,382)
90031-19106	New Genuine Part	Injection Pump Assembly ([05.1999 - 10.2001] (9905-0110)S05#..XZU362,37#,382)
90031-19109	New Genuine Part	Injection Pump Assembly ([05.1999 - 10.2001] (9905-0110)S05#..XZU362,37#,382)
90031-75001	New Genuine Part	Injection Pump Assembly ([05.1999 - 10.2001] (9905-0110)S05#..XZU362,37#,382)
90032-09019	New Genuine Part	Injection Pump Assembly ([05.1999 - 10.2001] (9905-0110)S05#..XZU362,37#,382)
90032-09020	Gasket(Nozzle Lekage Pipe No.3)	Injection Pump Assembly ([05.1999 - 10.2001] (9905-0110)S05#..XZU362,37#,382)
90033-01063	Ring, O(For Injection Pump)	Injection Pump Assembly ([05.1999 - 10.2001] (9905-0110)S05#..XZU362,37#,382)
90033-41023	New Genuine Part	Injection Pump Assembly ([05.1999 - 10.2001] (9905-0110)S05#..XZU362,37#,382)
90033-60020	Bearing, Ball(For Injection Pump Drive Gear)	Injection Pump Assembly ([05.1999 - 10.2001] (9905-0110)S05#..XZU362,37#,382)
90033-85007	New Genuine Part	Injection Pump Assembly ([05.1999 - 10.2001] (9905-0110)S05#..XZU362,37#,382)
90034-01009	Bolt, Union(For Nozzle Lekage Pipe No.3)	Injection Pump Assembly ([05.1999 - 10.2001] (9905-0110)S05#..XZU362,37#,382)
90034-30040	Gasket(For Turbo Water Pipe)	Injection Pump Assembly ([05.1999 - 10.2001] (9905-0110)S05#..XZU362,37#,382)
90034-68024	Clamp, Nozzle Leakage	Injection Pump Assembly ([05.1999 - 10.2001] (9905-0110)S05#..XZU362,37#,382)
90035-60054	New Genuine Part	Injection Pump Assembly ([05.1999 - 10.2001] (9905-0110)S05#..XZU362,37#,382)
90099-01501	Ring, Feed Pump Tappet Snap	Injection Pump Assembly ([05.1999 - 10.2001] (9905-0110)S05#..XZU362,37#,382)
90170-A0001	New Genuine Part	Injection Pump Assembly ([05.1999 - 10.2001] (9905-0110)S05#..XZU362,37#,382)
90467-13007	Clamp Or Clip(For Water By-Pass Hose No.2)	Injection Pump Assembly ([05.1999 - 10.2001] (9905-0110)S05#..XZU362,37#,382)
90467-18002	Clip(For Ventilation Hose)	Injection Pump Assembly ([05.1999 - 10.2001] (9905-0110)S05#..XZU362,37#,382)
90467-18008	Clip(For Water By-Pass Hose No.2)	Injection Pump Assembly ([05.1999 - 10.2001] (9905-0110)S05#..XZU362,37#,382)
90980-11073	New Genuine Part	Injection Pump Assembly ([05.1999 - 10.2001] (9905-0110)S05#..XZU362,37#,382)
91641-80818	BOLT WWASHER	Injection Pump Assembly ([05.1999 - 10.2001] (9905-0110)S05#..XZU362,37#,382)
94130-00802	Nut, No.1 (For Center Support Bearing)	Injection Pump Assembly ([05.1999 - 10.2001] (9905-0110)S05#..XZU362,37#,382)
96132-51300	Clip(For Ventilation Hose No.2)	Injection Pump Assembly ([05.1999 - 10.2001] (9905-0110)S05#..XZU362,37#,382)
