Search › Model › XZU362

XZU362

Toyota DYNA-TOYOACE · 1999 · 4,654 parts · 247 categories
XZU362 ×

← Back to categories

4,654 items

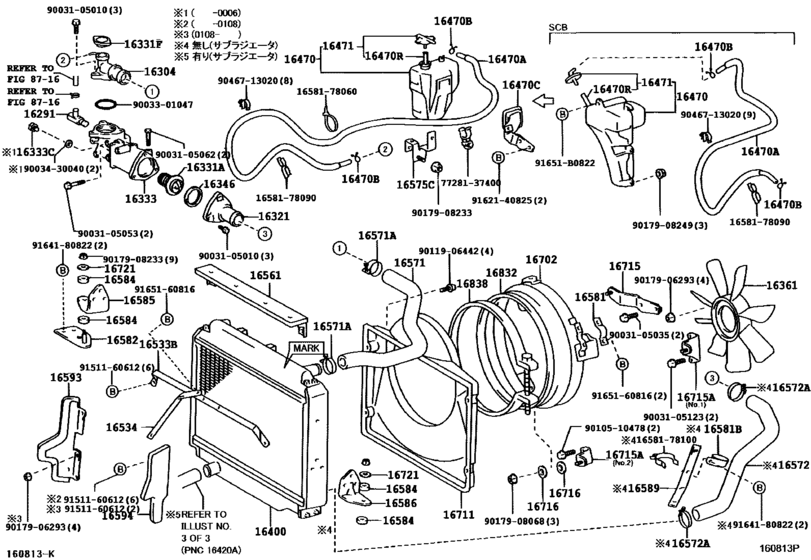

Radiator & Water Outlet ([07.1999 - ] (9907- )S05#..XZU362,371,372,382) 79
#OEMPart name
16291 87251-30190 Joint, Water Hose
16304 16304-78040 Outlet Sub-Assy, Water
16321 16321-78010 Inlet, Water
16331 90038-33010 Thermostat
16331 90038-33017 Thermostat
16331 16401-78100 Cap Sub-Assy(For Water Outlet)
16331 16401-78110 Cap Sub-Assy(For Water Outlet)
16331 16401-78112 Cap Sub-Assy(For Water Outlet)
16333 16333-78030 Housing, Water Outlet
16333 16333-78031 Housing, Water Outlet
16333 90341-12010 Plug, W/head Taper Screw
16346 16346-78020 Gasket, Thermostat
16361 16361-78040 Fan
16400 16400-78070 Radiator Assy
16400 16400-78220 Radiator Assy
16400 90179-06293 NUT
16400 16400-78071 Radiator Assy
16470 16470-78010 Tank Assy, Radiator Reserve
16470 16567-78030 Hose Or Pipe(For Radiator Reserve Tank)
16470 16567-78570 Hose Or Pipe(For Radiator Reserve Tank)
16470 90467-11085 Clamp Or Clip(For Radiator Breather Hose)
16470 90445-12078 Hose(For Radiator Breather)
16471 16405-78010 Cap Sub-Assy, Reserve Tank
16533 16533-78010 Support, Radiator, No.1
16534 16534-78010 Support, Radiator, No.2
16561 16561-78010 Seal, Radiator To Support, No.1
16571 16571-78040 Hose, Radiator, Inlet
16571 16581-78050 Clamp, Sub Radiator Inlet Hose
16571 90460-52003 Clamp, Sub Radiator Inlet Hose
16571 90460-55014 Clamp, Sub Radiator Inlet Hose
16571 16581-78191 Clamp, Sub Radiator Inlet Hose
16572 16572-78030 Hose, Radiator, Outlet
16581 16581-78010 Clamp, Hose(For Water Hose)
16581 16581-78020 Clamp, Hose(For Radiator Hose)
16582 16582-78010 Bracket, Radiator, No.1
16584 16584-78010 Insulator, Radiator Mounting
16585 16585-78010 Bracket, Radiator, No.3
16586 16586-78010 Bracket, Radiator, No.4
16589 16589-78010 Stay, Pipe Clamp
16593 16593-78020 Guide, Radiator Air, No.1
16593 16593-78021 Guide, Radiator Air, No.1
16594 16594-78020 Guide, Radiator Air, No.2
16594 16594-78021 Guide, Radiator Air, No.2
16702 16702-78020 Shroud Sub-Assy, Fan, No.2
16702 16702-78021 Shroud Sub-Assy, Fan, No.2
16711 16701-78010 Shroud, Fan
16715 16715-78070 Bracket, Fan Shroud
16715 16715-78050 Bracket, Fan Shroud, No.2
16715 16715-78060 Bracket, Fan Shroud, No.2
16716 16716-78010 Cushion, Fan Shroud
16721 16721-78010 Plate, Holder
16832 16832-78010 Seal, Fan Shroud
16838 16838-78010 Clamp, Fan Shroud
91651 91651-B0822 BOLT WWASHER
1658178060 16581-78060 New Genuine Part
1658178090 16581-78090 Clamp, Hose(for Water Hose)
1658178100 16581-78100 Clamp, Hose(For Water Hose)
7728137400 77281-37400 Bracket, Fuel Main Tube, No.1
9003105010 90031-05010 New Genuine Part
9003105010 90031-05124 New Genuine Part
9003105035 90031-05035 New Genuine Part
9003105035 90031-05137 New Genuine Part
9003105053 90031-05053 New Genuine Part
9003105053 90031-05135 New Genuine Part
9003105062 90031-05062 New Genuine Part
9003105123 90031-05123 Bolt(For Cylinder Head Cover)
9003301047 90033-01047 Ring, O(For Water Pump)
9003430040 90034-30040 Gasket(For Turbo Water Pipe)
9010510478 90105-10478 New Genuine Part
9011906442 90119-06442 BOLT WWASHER
9017908068 90179-08068 NUT
9017908233 90179-08233 NUT
9017908249 90179-08249 New Genuine Part
9046713020 90467-13020 Clamp Or Clip(For Radiator Reserve Tank Hose No.2)
9151160612 91511-60612 BOLT
9162140825 91621-40825 New Genuine Part
9164180822 91641-80822 New Genuine Part
9165160816 91651-60816 BOLT
9165160816 90080-11396 Bolt
Source
Public OEM parts-catalog data
Variants
1 / 6
Category
247
Collected
2026-08-03
