XZU362

Toyota DYNA-TOYOACE · 1999 · 4,654 parts · 247 categories
XZU362 ×

← Back to categories

4,654 items

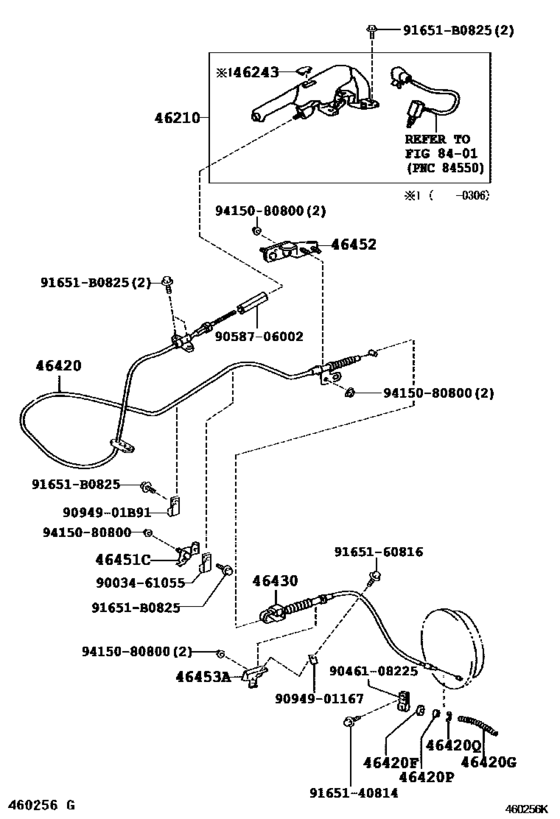

Parking Brake & Cable ([05.1999 - 06.2004] (9905-0406)XZU362,372,382) 21
#OEMPart name
46210 46210-37020-B0 Lever Assy, Parking Brake
46420 46420-37230 Cable Assy, Parking Brake, No.2
46420 90303-10001 Seal, Dust(For Parking Brake Cable)
46420 90501-14003 Spring(For Parking Cable Inner Wire Set)
46420 90560-08002 Spacer(For Parking Brake Handle)
46420 96160-00700 Ring, E(For Chain Tensioner Slipper)
46430 46430-37260 Cable Assy, Parking Brake, No.3
46451 46452-37070 Bracket, Parking Brake Cable Support, No.1
46452 46452-37040 Bracket, Parking Brake Cable Support, No.2
46453 46453-37060 Bracket, Cable Support, No.3
91651 91651-B0825 Bolt, Hexagon(For Steering Column Bracket)
9094901 90949-01B91 New Genuine Part
9003461055 90034-61055 New Genuine Part
9046108225 90461-08225 Clamp, No.3(For Parking Brake Cable)
9058706002 90587-06002 New Genuine Part
9094901167 90949-01167 Clamp, No.1(For Parking Brake Cable)
9165140814 91651-40814 BOLT
9165140814 90080-11228 New Genuine Part
9165160816 91651-60816 BOLT
9165160816 90080-11396 Bolt
9415080800 94150-80800 NUT, FLANGE
