XZU362

Toyota DYNA-TOYOACE · 1999 · 4,654 parts · 247 categories
XZU362 ×

← Back to categories

4,654 items

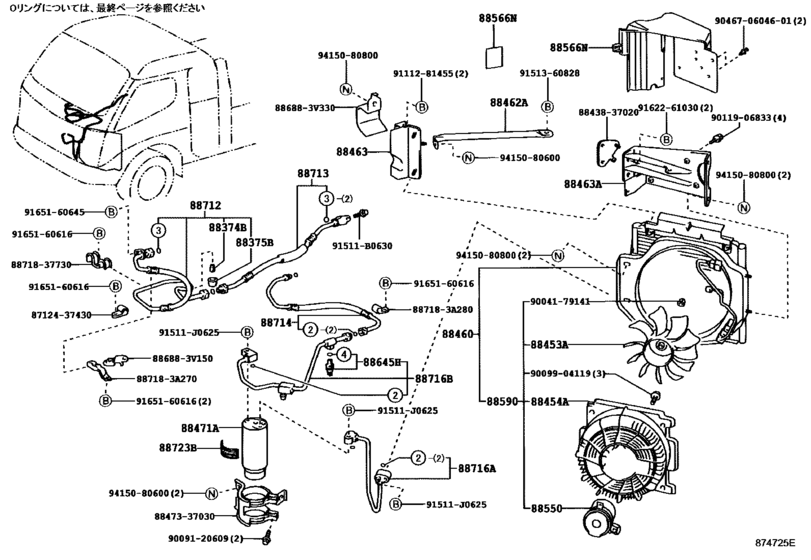

Heating & Air Conditioning - Cooler Piping ([07.1999 - 08.2001] (9907-0108)XZU362,37#,382) 52
#OEMPart name
88374 88374-30010 Valve, Service, No.1
88375 88375-30290 Cap, Service Valve (For Cooler Pipe)
88453 88453-37010 Fan, Cooling
88454 88454-37031 Shroud, Fan
88460 88460-37330 Condenser Assy, Cooler
88460 88460-37331 Condenser Assy, Cooler
88460 88460-37550 Condenser Assy, Cooler
88460 88460-37552 Condenser Assy, Cooler
88460 88460-37551 Condenser Assy, Cooler
88462 88462-37080 Holder, Condenser
88463 88463-37250 Bracket, Cooler Condenser, No.1
88463 88463-37251 Bracket, Cooler Condenser, No.1
88463 88463-37180 Bracket, Cooler Condenser, No.2
88471 88471-34010 Receiver & Dryer Assy, Cooler
88550 88550-37060 Motor Assy, Blower (For Condenser)
88566 88566-37080 Duct, Cooler Air, No.1
88566 88566-37081 Duct, Cooler Air, No.1
88590 88590-37050 Blower Assy, W/shroud
88590 88590-37051 Blower Assy, W/shroud
88645 88645-60030 Switch, Pressure No.1
88712 88712-37760 Hose, Cooler Refrigerant Suction, No.1
88713 88712-37750 Hose, Cooler Refrigerant Suction, No.2
88714 88721-37390 Hose, Cooler Refrigerant Liquid, No.1
88716 88716-37470 Pipe, Cooler Refrigerant Liquid, A
88716 88716-37760 Pipe, Cooler Refrigerant Liquid, B
88723 88723-20030 Plate, Caution, No.1
88723 88733-30040 Label, Cooler Service Caution
88723 88733-27010 Label, Cooler Service Caution
91511 91511-B0630 BOLT FLANGE
91511 91511-J0625 Bolt(For Cylinder Head Cover)
886883 88688-3V150 Bracket, Cooler Diaphragm
886883 88688-3V500 Bracket, Cooler Diaphragm
886883 88688-3V330 Bracket, Cooler Diaphragm
887183 88718-3A270 Pipe, Cooler Refrigerant Suction, No.2
887183 88718-3V160 Pipe, Cooler Refrigerant Suction, No.2
887183 88718-3A280 Pipe, Cooler Refrigerant Suction, No.2
8712437430 87124-37430 Clamp, Heater
8843837020 88438-37020 New Genuine Part
8847337030 88473-37030 Holder, Receiver
8871837730 88718-37730 Pipe, Cooler Refrigerant Suction, No.2
9004179141 90041-79141 New Genuine Part
9009120609 90091-20609 BOLT
9009904119 90099-04119 BOLT WASHER HEAD
9011906833 90119-06833 BOLT WWASHER
9111281455 91112-81455 Bolt, Upper Arm Set
9151360828 91513-60828 BOLT FLANGE
9162261030 91622-61030 New Genuine Part
9165160616 91651-60616 BOLT
9165160645 91651-60645 BOLT
9415080600 94150-80600 NUT FLANGE
9415080800 94150-80800 NUT, FLANGE
904670604601 90467-06046-01 Clip, Rear Floor Mat Set
