XZU362

Toyota DYNA-TOYOACE · 1999 · 4,654 parts · 247 categories
XZU362 ×

← Back to categories

4,654 items

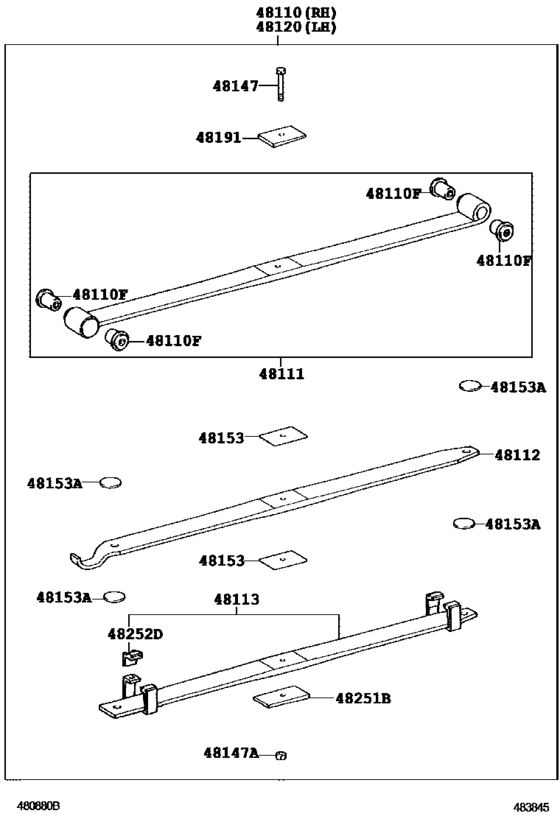

Front Spring & Shock Absorber ([07.1999 - ] 3-LEAF (9907- )XZU362..DM5) 18
#OEMPart name
48110 48110-3V010 Spring Assy, Front, Rh
48110 90389-16026 Bush, Front Spring No.2 Shackle
48111 48101-37890 Leaf, Front Spring, No.1
48111 48101-3V010 Leaf, Front Spring, No.1
48112 48112-37890 Leaf, Front Spring, No.2
48112 48112-3V010 Leaf, Front Spring, No.2
48113 48102-37890 Leaf, Front Spring, No.3
48113 48102-37891 New Genuine Part
48113 48252-37521 Silencer, Front Spring, No.1
48113 48102-3V010 Leaf, Front Spring, No.3
48120 48110-37890 Spring Assy, Front, Lh
48147 48247-60380 Bolt, Front Spring, Center
48147 48147-37891 Bolt, Front Spring, Center
48147 48284-37130 Nut, Front Spring Center Bolt
48153 48251-36530 Spacer, Front Leaf Spring, No.1
48153 48252-3B800 Silencer, Front Spring, No.1
48191 48192-37060 Wedge, Caster(For Front Leaf Spring)
48252 48252-37380 Silencer, Rear Spring
