XZU362

Toyota DYNA-TOYOACE · 1999 · 4,654 parts · 247 categories
XZU362 ×

← Back to categories

4,654 items

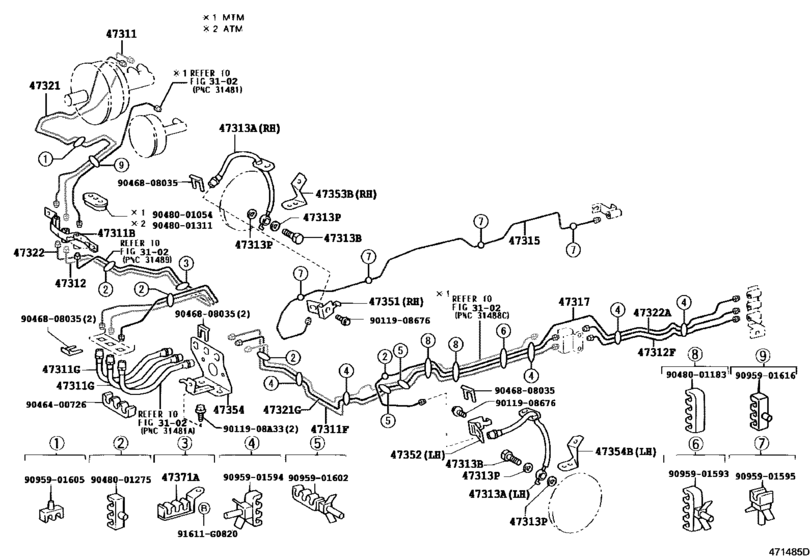

Brake Tube & Clamp ([07.1999 - 06.2004] (9907-0406)XZU362,37#,382) 43
#OEMPart name
47311 47311-37160 Tube, Front Brake, No.1
47311 47311-37162 Tube, Front Brake, No.1
47311 47311-37161 Tube, Front Brake, No.1
47311 47391-37010 Way, No.1(For Front Brake Tube)
47311 47311-37220 Tube, Front Brake, Frame No.1
47311 90947-02A79 Hose, Flexible(For Brake Tube)
47312 47312-37060 Tube, Front Brake, No.2
47312 47312-37090 Tube, Front Brake, Frame, No.2
47313 90947-02A75 Hose, Flexible, No.1(For Front)
47313 90947-02A76 Hose, Flexible, No.1(For Front)
47313 90401-10015 Bolt, Union(For Clutch Mas Cylinder To Flexible Hose Tube)
47313 47389-30010 Gasket(For Clutch Master Cylinder To Flexible Hose Tube)
47315 47315-37130 Tube, Front Brake, No.5
47315 47315-37132 Tube, Front Brake, No.5
47315 47315-37131 Tube, Front Brake, No.5
47317 47317-37190 Tube, Front Brake, No.7
47321 47321-37160 Tube, Rear Brake, No.1
47321 47321-37220 Tube, Rear Brake, Frame No.1
47322 47322-37200 Tube, Rear Brake, No.2
47322 47322-37240 Tube, Rear Brake, Frame No.2
47351 47351-37290 Bracket, Flexible Hose(For Front Rh)
47352 47352-37170 Bracket, Flexible Hose(For Front Lh)
47353 47353-37030 Bracket, Flexible Hose, No.3
47354 47354-37110 Bracket, Front Flexible Hose
47354 47354-37111 Bracket, Front Flexible Hose
47354 47354-37070 Bracket, Flexible Hose, No.4
47371 47371-37030 Clamp, Brake Tube, No.1
91611 91611-G0820 Bolt
9011908 90119-08A33 BOLT
9011908676 90119-08676 BOLT WWASHER
9046400726 90464-00726 Clamp, Brake Tube, No.4
9046808035 90468-08035 CLIP
9046808035 90468-A0007 New Genuine Part
9048001054 90480-01054 Grommet(For Brake Tube)
9048001183 90480-01183 New Genuine Part
9048001275 90480-01275 Clamp, Brake Tube, No.7
9048001311 90480-01311 Grommet(For Brake Tube)
9095901593 90959-01593 Clamp, Brake Tube, No.6
9095901594 90959-01594 Clamp, Brake Tube, No.9
9095901595 90959-01595 Clamp, Brake Tube, No.1
9095901602 90959-01602 Clamp, Brake Tube, No.6
9095901605 90959-01605 New Genuine Part
9095901616 90959-01616 New Genuine Part
