Search › Model › XZU352
XZU352

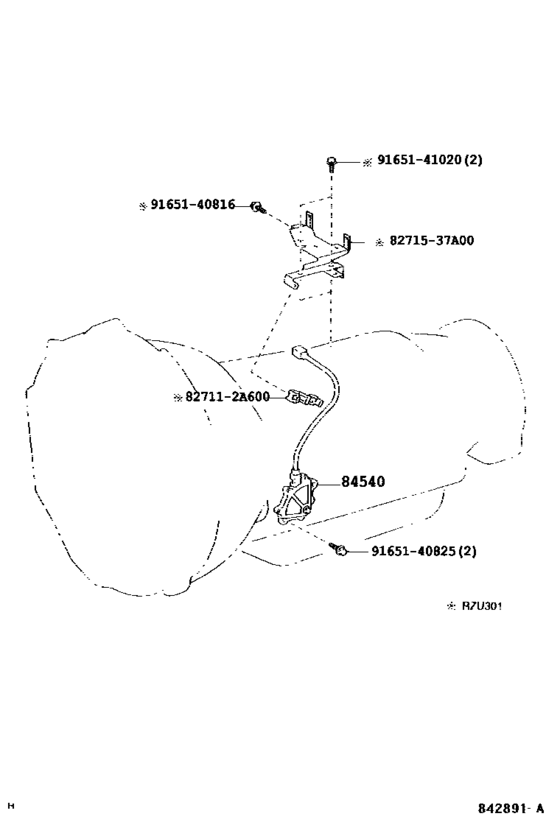

Switch & Relay & Computer ([05.1999 - 06.2004] ﾄﾗﾝｽﾐﾂｼﾖﾝ (9905-0406)4FC ; (0406- )4FC) 6
| # | OEM | Part name |
|---|---|---|
| 84540 | 84540-37030 | Switch Assy, Neutral Start |
| 827112 | 82711-2A600 | Wire, Fuse To Fuse(for Combustion Heater) |
| 8271537 | 82715-37A00 | Bracket,wiring Harness Clamp |
| 9165140816 | 91651-40816 | BOLT |
| 9165140825 | 91651-40825 | Bolt(For Clutch Release Cylinder Setting) |
| 9165141020 | 91651-41020 | BOLT W-WASHER |
| OEM | Part name | Category |
|---|---|---|
| 82711-2A600 | Wire, Fuse To Fuse(for Combustion Heater) | Switch & Relay & Computer ([05.1999 - 06.2004] ﾄﾗﾝｽﾐﾂｼﾖﾝ (9905-0406)4FC ; (0406- )4FC) |
| 82715-37A00 | Bracket,wiring Harness Clamp | Switch & Relay & Computer ([05.1999 - 06.2004] ﾄﾗﾝｽﾐﾂｼﾖﾝ (9905-0406)4FC ; (0406- )4FC) |
| 84540-37030 | Switch Assy, Neutral Start | Switch & Relay & Computer ([05.1999 - 06.2004] ﾄﾗﾝｽﾐﾂｼﾖﾝ (9905-0406)4FC ; (0406- )4FC) |
| 91651-40816 | BOLT | Switch & Relay & Computer ([05.1999 - 06.2004] ﾄﾗﾝｽﾐﾂｼﾖﾝ (9905-0406)4FC ; (0406- )4FC) |
| 91651-40825 | Bolt(For Clutch Release Cylinder Setting) | Switch & Relay & Computer ([05.1999 - 06.2004] ﾄﾗﾝｽﾐﾂｼﾖﾝ (9905-0406)4FC ; (0406- )4FC) |
| 91651-41020 | BOLT W-WASHER | Switch & Relay & Computer ([05.1999 - 06.2004] ﾄﾗﾝｽﾐﾂｼﾖﾝ (9905-0406)4FC ; (0406- )4FC) |
