XZU352

Toyota DYNA-TOYOACE · 1999 · 3,660 parts · 207 categories
XZU352 ×

← Back to categories

3,660 items

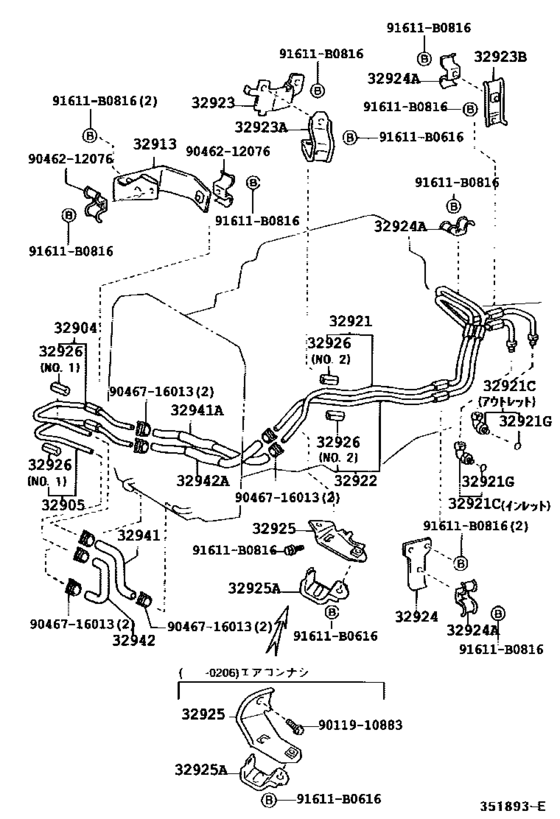

Oil Cooler & Tube (Atm) ([05.1999 - 06.2004] A443E (9905-0406)XZU362..T4..CBU ; (9905-0406)XZU301,3 02,306,307,312,321,322,331,337,341, 347,352..4FC..CBU ,IV3,IV6) 24
#OEMPart name
32904 32906-37041 Tube Sub-Assy, Oil Cooler Inlet, No.1
32905 32907-37030 Tube Sub-Assy, Oil Cooler Outlet, No.1
32913 32913-37040 Bracket, Oil Cooler
32921 32921-37050 Tube, Oil Cooler Inlet, No.1
32921 90407-20006 Union(For Oil Cooler Tube)
32921 90407-20008 Union(For Oil Cooler Tube)
32921 90301-11006 O Ring, Transaxle Case Elbow
32922 32922-37050 Tube, Oil Cooler Outlet, No.1
32923 32927-37010 Clamp, Automatic Transmission Oil Cooler Tube
32923 32929-25020 Clamp, Automatic Transmission Oil Cooler Tube
32923 32923-25010 Clamp, Automatic Transmission Oil Cooler Tube
32924 32924-37010 Clamp, Oil Cooler Tube, No.2
32924 90462-12076 Clamp, Automatic Transmission Oil Cooler Tube
32925 32925-37030 Clamp, Oil Cooler Tube, No.3
32926 32926-60010 Cushion, Oil Cooler Tube(Atm)
32941 32941-37051 Hose, Oil Cooler Inlet, No.1
32941 32941-37060 Hose, Oil Cooler Inlet, No.2
32942 32942-37030 Hose, Oil Cooler Outlet, No.1
32942 32942-37040 Hose, Oil Cooler Outlet, No.2
91611 91611-B0616 Bolt(For Transaxle Case Receiver)
91611 91611-B0816 Bolt
9011910883 90119-10883 New Genuine Part
9046716013 90467-16013 Clip(For Oil Return Hose)
9046716013 90467-16022 Clip(For Water Inlet Hose)
