Search › Model › XZU351
XZU351

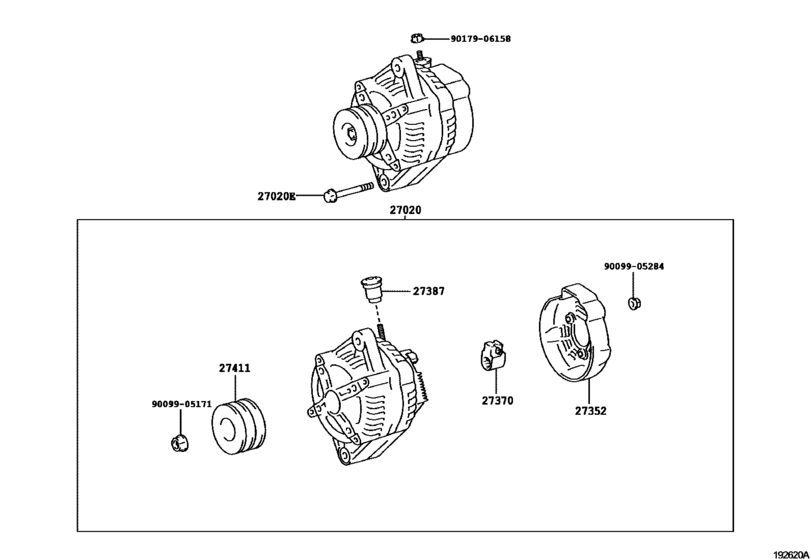

Alternator ([06.2004 - ] 24V 80A (0406- )N04C,S05D) 7
| # | OEM | Part name |
|---|---|---|
| 27020 | 27060-78130 | Alternator Assy |
| 27020 | 90031-05165 | Bolt(For Alternator) |
| 27370 | 27370-75060 | Holder Assy, Alternator Brush |
| 27411 | 27411-89111 | Pulley, Alternator |
| 9009905171 | 90099-05171 | Nut(For Alternator Pulley) |
| 9009905284 | 90099-05284 | NUT |
| 9017906158 | 90179-06158 | Nut, Rear Wiper Link Pivot, No.2 |
| OEM | Part name | Category |
|---|---|---|
| 27060-78130 | Alternator Assy | Alternator ([06.2004 - ] 24V 80A (0406- )N04C,S05D) |
| 27370-75060 | Holder Assy, Alternator Brush | Alternator ([06.2004 - ] 24V 80A (0406- )N04C,S05D) |
| 27411-89111 | Pulley, Alternator | Alternator ([06.2004 - ] 24V 80A (0406- )N04C,S05D) |
| 90031-05165 | Bolt(For Alternator) | Alternator ([06.2004 - ] 24V 80A (0406- )N04C,S05D) |
| 90099-05171 | Nut(For Alternator Pulley) | Alternator ([06.2004 - ] 24V 80A (0406- )N04C,S05D) |
| 90099-05284 | NUT | Alternator ([06.2004 - ] 24V 80A (0406- )N04C,S05D) |
| 90179-06158 | Nut, Rear Wiper Link Pivot, No.2 | Alternator ([06.2004 - ] 24V 80A (0406- )N04C,S05D) |
