Search › Model › XZU350

XZU350

Toyota DYNA-TOYOACE · 1999 · 4,916 parts · 248 categories

4,916 items

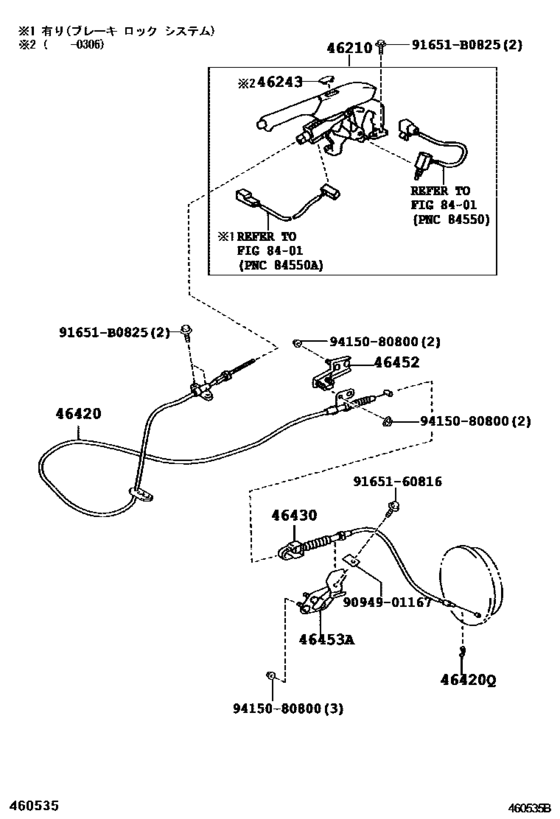

Parking Brake & Cable ([06.2002 - 10.2002] (0206-0210)XZU302..5F..20T..1NO ; (0206-0210)XZU 301,330,350..T3,T5..20T,40T ; (0206 -0210)XZU301..SCB ..5F..20T,30T..DSL..1NO) 21

#	OEM	Part name
46210	46210-37010-B0	Lever Assy, Parking Brake
46210	46210-37012-B0	Lever Assy, Parking Brake
46210	46210-37011-B0	Lever Assy, Parking Brake
46210	46210-37040-B0	Lever Assy, Parking Brake
46210	46210-37042-B0	Lever Assy, Parking Brake
46210	46210-37041-B0	Lever Assy, Parking Brake
46243	46243-37020-B0	Cover, Parking Brake Lever
46420	46420-37160	Cable Assy, Parking Brake, No.2
46420	46420-37162	Cable Assy, Parking Brake, No.2
46420	46420-37161	Cable Assy, Parking Brake, No.2
46420	96160-01200	Ring, E(For Clutch Release Cable)
46430	46430-37300	Cable Assy, Parking Brake, No.3
46430	46430-37600	Cable Assy, Parking Brake, No.3
46452	46452-37020	Bracket, Parking Brake Cable Support, No.2
46452	46452-37110	Bracket, Parking Brake Cable Support, No.2
46453	46453-37070	Bracket, Cable Support, No.3
91651	91651-B0825	Bolt, Hexagon(For Steering Column Bracket)
9094901167	90949-01167	Clamp, No.1(For Parking Brake Cable)
9165160816	91651-60816	BOLT
9165160816	90080-11396	Bolt
9415080800	94150-80800	NUT, FLANGE

OEM	Part name	Category
46210-37010-B0	Lever Assy, Parking Brake	Parking Brake & Cable ([06.2002 - 10.2002] (0206-0210)XZU302..5F..20T..1NO ; (0206-0210)XZU 301,330,350..T3,T5..20T,40T ; (0206 -0210)XZU301..SCB ..5F..20T,30T..DSL..1NO)
46210-37011-B0	Lever Assy, Parking Brake	Parking Brake & Cable ([06.2002 - 10.2002] (0206-0210)XZU302..5F..20T..1NO ; (0206-0210)XZU 301,330,350..T3,T5..20T,40T ; (0206 -0210)XZU301..SCB ..5F..20T,30T..DSL..1NO)
46210-37012-B0	Lever Assy, Parking Brake	Parking Brake & Cable ([06.2002 - 10.2002] (0206-0210)XZU302..5F..20T..1NO ; (0206-0210)XZU 301,330,350..T3,T5..20T,40T ; (0206 -0210)XZU301..SCB ..5F..20T,30T..DSL..1NO)
46210-37040-B0	Lever Assy, Parking Brake	Parking Brake & Cable ([06.2002 - 10.2002] (0206-0210)XZU302..5F..20T..1NO ; (0206-0210)XZU 301,330,350..T3,T5..20T,40T ; (0206 -0210)XZU301..SCB ..5F..20T,30T..DSL..1NO)
46210-37041-B0	Lever Assy, Parking Brake	Parking Brake & Cable ([06.2002 - 10.2002] (0206-0210)XZU302..5F..20T..1NO ; (0206-0210)XZU 301,330,350..T3,T5..20T,40T ; (0206 -0210)XZU301..SCB ..5F..20T,30T..DSL..1NO)
46210-37042-B0	Lever Assy, Parking Brake	Parking Brake & Cable ([06.2002 - 10.2002] (0206-0210)XZU302..5F..20T..1NO ; (0206-0210)XZU 301,330,350..T3,T5..20T,40T ; (0206 -0210)XZU301..SCB ..5F..20T,30T..DSL..1NO)
46243-37020-B0	Cover, Parking Brake Lever	Parking Brake & Cable ([06.2002 - 10.2002] (0206-0210)XZU302..5F..20T..1NO ; (0206-0210)XZU 301,330,350..T3,T5..20T,40T ; (0206 -0210)XZU301..SCB ..5F..20T,30T..DSL..1NO)
46420-37160	Cable Assy, Parking Brake, No.2	Parking Brake & Cable ([06.2002 - 10.2002] (0206-0210)XZU302..5F..20T..1NO ; (0206-0210)XZU 301,330,350..T3,T5..20T,40T ; (0206 -0210)XZU301..SCB ..5F..20T,30T..DSL..1NO)
46420-37161	Cable Assy, Parking Brake, No.2	Parking Brake & Cable ([06.2002 - 10.2002] (0206-0210)XZU302..5F..20T..1NO ; (0206-0210)XZU 301,330,350..T3,T5..20T,40T ; (0206 -0210)XZU301..SCB ..5F..20T,30T..DSL..1NO)
46420-37162	Cable Assy, Parking Brake, No.2	Parking Brake & Cable ([06.2002 - 10.2002] (0206-0210)XZU302..5F..20T..1NO ; (0206-0210)XZU 301,330,350..T3,T5..20T,40T ; (0206 -0210)XZU301..SCB ..5F..20T,30T..DSL..1NO)
46430-37300	Cable Assy, Parking Brake, No.3	Parking Brake & Cable ([06.2002 - 10.2002] (0206-0210)XZU302..5F..20T..1NO ; (0206-0210)XZU 301,330,350..T3,T5..20T,40T ; (0206 -0210)XZU301..SCB ..5F..20T,30T..DSL..1NO)
46430-37600	Cable Assy, Parking Brake, No.3	Parking Brake & Cable ([06.2002 - 10.2002] (0206-0210)XZU302..5F..20T..1NO ; (0206-0210)XZU 301,330,350..T3,T5..20T,40T ; (0206 -0210)XZU301..SCB ..5F..20T,30T..DSL..1NO)
46452-37020	Bracket, Parking Brake Cable Support, No.2	Parking Brake & Cable ([06.2002 - 10.2002] (0206-0210)XZU302..5F..20T..1NO ; (0206-0210)XZU 301,330,350..T3,T5..20T,40T ; (0206 -0210)XZU301..SCB ..5F..20T,30T..DSL..1NO)
46452-37110	Bracket, Parking Brake Cable Support, No.2	Parking Brake & Cable ([06.2002 - 10.2002] (0206-0210)XZU302..5F..20T..1NO ; (0206-0210)XZU 301,330,350..T3,T5..20T,40T ; (0206 -0210)XZU301..SCB ..5F..20T,30T..DSL..1NO)
46453-37070	Bracket, Cable Support, No.3	Parking Brake & Cable ([06.2002 - 10.2002] (0206-0210)XZU302..5F..20T..1NO ; (0206-0210)XZU 301,330,350..T3,T5..20T,40T ; (0206 -0210)XZU301..SCB ..5F..20T,30T..DSL..1NO)
90080-11396	Bolt	Parking Brake & Cable ([06.2002 - 10.2002] (0206-0210)XZU302..5F..20T..1NO ; (0206-0210)XZU 301,330,350..T3,T5..20T,40T ; (0206 -0210)XZU301..SCB ..5F..20T,30T..DSL..1NO)
90949-01167	Clamp, No.1(For Parking Brake Cable)	Parking Brake & Cable ([06.2002 - 10.2002] (0206-0210)XZU302..5F..20T..1NO ; (0206-0210)XZU 301,330,350..T3,T5..20T,40T ; (0206 -0210)XZU301..SCB ..5F..20T,30T..DSL..1NO)
91651-60816	BOLT	Parking Brake & Cable ([06.2002 - 10.2002] (0206-0210)XZU302..5F..20T..1NO ; (0206-0210)XZU 301,330,350..T3,T5..20T,40T ; (0206 -0210)XZU301..SCB ..5F..20T,30T..DSL..1NO)
91651-B0825	Bolt, Hexagon(For Steering Column Bracket)	Parking Brake & Cable ([06.2002 - 10.2002] (0206-0210)XZU302..5F..20T..1NO ; (0206-0210)XZU 301,330,350..T3,T5..20T,40T ; (0206 -0210)XZU301..SCB ..5F..20T,30T..DSL..1NO)
94150-80800	NUT, FLANGE	Parking Brake & Cable ([06.2002 - 10.2002] (0206-0210)XZU302..5F..20T..1NO ; (0206-0210)XZU 301,330,350..T3,T5..20T,40T ; (0206 -0210)XZU301..SCB ..5F..20T,30T..DSL..1NO)
96160-01200	Ring, E(For Clutch Release Cable)	Parking Brake & Cable ([06.2002 - 10.2002] (0206-0210)XZU302..5F..20T..1NO ; (0206-0210)XZU 301,330,350..T3,T5..20T,40T ; (0206 -0210)XZU301..SCB ..5F..20T,30T..DSL..1NO)
