XZU350

Toyota DYNA-TOYOACE · 1999 · 4,916 parts · 248 categories
XZU350 ×

← Back to categories

4,916 items

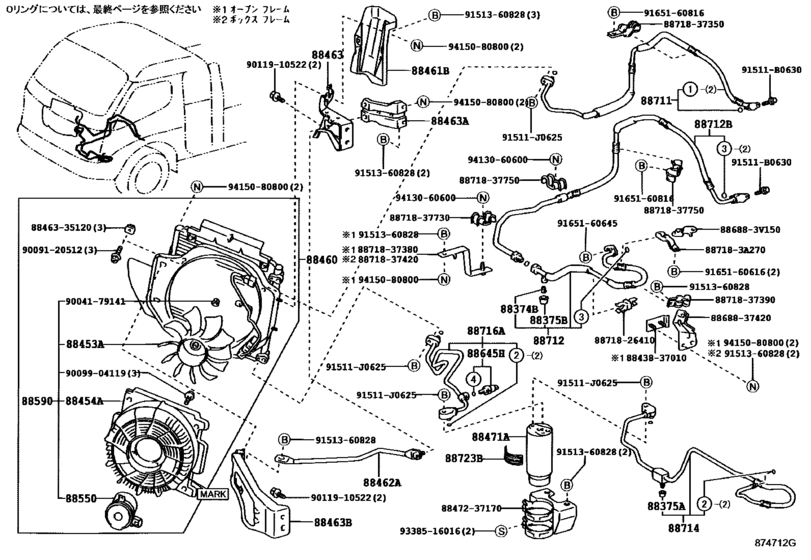

Heating & Air Conditioning - Cooler Piping ([05.1999 - 06.2004] (9905-0406)XZU300,302,306,31#,32#,330,337,340,34 2,346,347,350,362,37#,382..CNG,DSL, LPG) 60
#OEMPart name
88374 88374-30010 Valve, Service, No.1
88375 88375-30280 Cap, Service Valve (For Cooler Pipe)
88375 88375-30290 Cap, Service Valve (For Cooler Pipe)
88453 88453-37010 Fan, Cooling
88454 88454-37031 Shroud, Fan
88460 88460-37324 Condenser Assy, Cooler
88460 88460-37401 Condenser Assy, Cooler
88460 88460-37510 Condenser Assy, Cooler
88460 88460-37512 Condenser Assy, Cooler
88460 88460-37511 Condenser Assy, Cooler
88461 53715-37180 Cover, Cooler Condenser
88462 88462-37070 Holder, Condenser
88463 88463-37140 Bracket, Cooler Condenser, No.1
88463 88463-37150 Bracket, Cooler Condenser, No.2
88463 88463-37050 Bracket, Cooler Condenser, No.3
88471 88471-34010 Receiver & Dryer Assy, Cooler
88550 88550-37040 Motor Assy, Blower (For Condenser)
88550 88550-37060 Motor Assy, Blower (For Condenser)
88590 88590-37051 Blower Assy, W/shroud
88645 88645-60030 Switch, Pressure No.1
88711 88711-37470 Hose, Cooler Refrigerant Discharge, No.1
88711 88711-37471 Hose, Cooler Refrigerant Discharge, No.1
88712 88712-3V270 Hose, Cooler Refrigerant Suction, No.1
88712 88712-37780 Hose, Cooler Refrigerant Suction
88712 88712-37781 Hose, Cooler Refrigerant Suction
88712 88712-37782 Hose, Cooler Refrigerant Suction
88714 88721-37580 Hose, Cooler Refrigerant Liquid, No.1
88716 88716-37840 Pipe, Cooler Refrigerant Liquid, A
88723 88723-20030 Plate, Caution, No.1
88723 88733-30040 Label, Cooler Service Caution
88723 88733-27010 Label, Cooler Service Caution
91511 91511-B0630 BOLT FLANGE
91511 91511-J0625 Bolt(For Cylinder Head Cover)
886883 88688-3V150 Bracket, Cooler Diaphragm
886883 88688-3V500 Bracket, Cooler Diaphragm
887183 88718-3A270 Pipe, Cooler Refrigerant Suction, No.2
887183 88718-3V160 Pipe, Cooler Refrigerant Suction, No.2
8843837010 88438-37010 New Genuine Part
8846335120 88463-35120 Bracket, Cooler Condenser, No.1
8847237170 88472-37170 Bracket, Receiver Tank, No.1
8868837420 88688-37420 Bracket, Cooler Diaphragm
8871826410 88718-26410 Pipe, Cooler Refrigerant Suction, No.2
8871837350 88718-37350 Pipe, Cooler Refrigerant Suction, No.2
8871837380 88718-37380 Pipe, Cooler Refrigerant Suction, No.2
8871837390 88718-37390 Pipe, Cooler Refrigerant Suction, No.2
8871837420 88718-37420 Pipe, Cooler Refrigerant Suction, No.2
8871837730 88718-37730 Pipe, Cooler Refrigerant Suction, No.2
8871837750 88718-37750 Pipe, Cooler Refrigerant Suction, No.2
9004179141 90041-79141 New Genuine Part
9009120512 90091-20512 BOLT WWASHER
9009904119 90099-04119 BOLT WASHER HEAD
9011910522 90119-10522 BOLT WWASHER
9151360828 91513-60828 BOLT FLANGE
9165160616 91651-60616 BOLT
9165160645 91651-60645 BOLT
9165160816 91651-60816 BOLT
9165160816 90080-11396 Bolt
9338516016 93385-16016 New Genuine Part
9413060600 94130-60600 Nut, Wire Adjusting, No.1
9415080800 94150-80800 NUT, FLANGE
