Search › Model › XZU350
XZU350

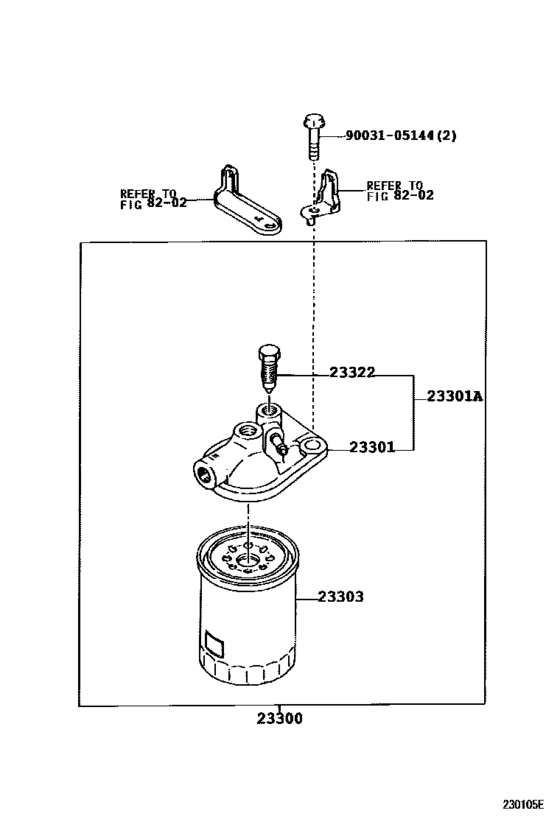

Fuel Filter ([06.1999 - 06.2004] (9906-0406)J05C) 6
| # | OEM | Part name |
|---|---|---|
| 23300 | 23300-78100 | Filter Assy, Fuel |
| 23301 | 23311-89101 | Body Sub-Assy, Fuel Filter |
| 23301 | 23310-89101 | Cap Assy, Fuel Filter |
| 23303 | 23304-89101 | Element Sub-Assy, Fuel Filter |
| 23322 | 23322-78030 | Plug, Drain(For Fuel Filter) |
| 9003105144 | 90031-05144 | Bolt(For Cylinder Head Set) |
| OEM | Part name | Category |
|---|---|---|
| 23300-78100 | Filter Assy, Fuel | Fuel Filter ([06.1999 - 06.2004] (9906-0406)J05C) |
| 23304-89101 | Element Sub-Assy, Fuel Filter | Fuel Filter ([06.1999 - 06.2004] (9906-0406)J05C) |
| 23310-89101 | Cap Assy, Fuel Filter | Fuel Filter ([06.1999 - 06.2004] (9906-0406)J05C) |
| 23311-89101 | Body Sub-Assy, Fuel Filter | Fuel Filter ([06.1999 - 06.2004] (9906-0406)J05C) |
| 23322-78030 | Plug, Drain(For Fuel Filter) | Fuel Filter ([06.1999 - 06.2004] (9906-0406)J05C) |
| 90031-05144 | Bolt(For Cylinder Head Set) | Fuel Filter ([06.1999 - 06.2004] (9906-0406)J05C) |
