XZU350

Toyota DYNA-TOYOACE · 1999 · 4,916 parts · 248 categories
XZU350 ×

← Back to categories

4,916 items

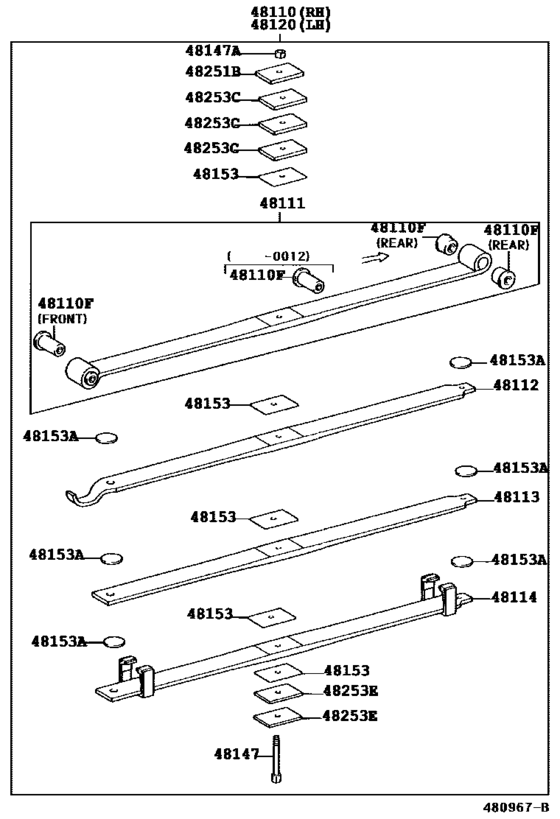

Front Spring & Shock Absorber ([06.1999 - 06.2004] 4-LEAF (9906-0406)XZU350) 23
#OEMPart name
48110 48110-37510 Spring Assy, Front, Rh
48110 48110-37511 Spring Assy, Front, Rh
48110 90389-16025 Bush, Front Spring No.2 Shackle
48110 90389-16026 Bush, Front Spring No.2 Shackle
48111 48101-37510 Leaf, Front Spring, No.1
48111 48101-37511 Leaf, Front Spring, No.1
48111 48101-37520 Leaf, Front Spring, No.1
48111 48101-37521 Leaf, Front Spring, No.1
48112 48112-37510 Leaf, Front Spring, No.2
48112 48112-37520 Leaf, Front Spring, No.2
48113 48113-37510 Leaf, Front Spring, No.3
48113 48113-37520 Leaf, Front Spring, No.3
48114 48105-37510 Leaf, Front Spring, No.4
48114 48105-37520 Leaf, Front Spring, No.4
48120 48110-37520 Spring Assy, Front, Lh
48120 48110-37521 Spring Assy, Front, Lh
48147 48147-37270 Bolt, Front Spring, Center
48147 48155-3B470 Nut, Front Spring Center Bolt
48153 48152-37270 Seat, Front Spring
48153 48153-37270 Silencer, Front Spring, No.1
48251 48117-37270 Spacer(For Front Spring)
48253 48115-37510 Spacer, Front Leaf Spring, No.2
48253 48116-37270 Spacer, Front Spring, No.3
