XZU350

Toyota DYNA-TOYOACE · 1999 · 4,916 parts · 248 categories
XZU350 ×

← Back to categories

4,916 items

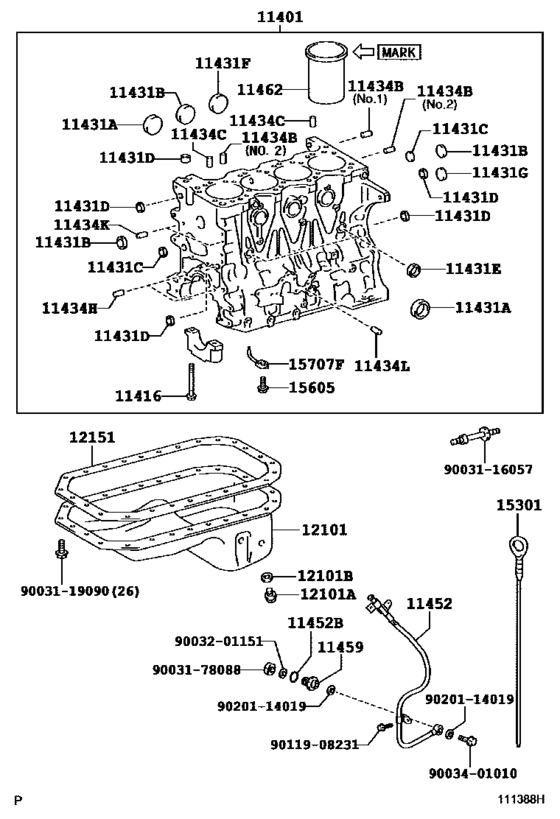

Cylinder Block ([06.1999 - 06.2004] (9906-0406)J05C..XZU350) 43
#OEMPart name
11401 11401-78020 Block Sub-Assy, Cylinder
11401 11401-E0692 Block Sub-assy, Cylinder
11401 90032-50049 Pin, Straight(For Clutch Housing Set)
11401 90033-31020 Plug, Tight, No.3
11401 11401-78070 Block Sub-Assy, Cylinder
11401 11401-78071 Block Sub-Assy, Cylinder
11416 90031-09052 Bolt(For Crankshaft Bearing Cap Set)
11431 90033-31026 Plug, Tight, No.4
11431 90331-50002 Plug, Tight, No.6
11431 90033-31019 Plug, Tight, No.2(For Cylinder Block)
11431 90033-31027 Plug, Tight, No.2(For Cylinder Block)
11431 90033-31018 Plug, Tight, No.3(For Cylinder Block)
11431 90033-31021 Plug, Tight, No.3(For Cylinder Block)
11431 90033-31016 Plug, Tight, No.4(For Cylinder Block)
11431 90033-31025 Plug, Tight, No.5(For Cylinder Block)
11434 90250-08016 Pin, Straight, No.1
11434 90250-08015 Pin, Straight(For Flywheel Housing)
11452 11452-78030 Guide, Oil Level Gage
11452 90033-01061 Ring, O(For Oil Level Gage Guide)
11459 11459-78010 Support, Oil Level Gage Guide
11462 11461-78060 Liner, Cylinder
11462 11461-78070 Liner, Cylinder
11462 11461-78080 Liner, Cylinder
12101 12101-78030 Pan Sub-Assy, Oil
12101 12101-E0050 Pan Sub-Assy, Oil
12101 12101-78070 Pan Sub-Assy, Oil
12101 12101-E0040 Pan Sub-Assy, Oil
12101 90033-41020 Plug(For Oil Pan Drain)
12101 90202-18002 Gasket(For Oil Pan Drain Plug)
12101 90034-30047 Gasket(For Oil Pan Drain Plug)
12151 12151-89101 Gasket, Oil Pan
15301 15301-78030 Gage Sub-Assy, Oil Level
15605 15703-78010 Valve Sub-Assy, Oil Check
15707 11418-78050 Pipe Sub-Assy, Oil
15707 15707-89103 Pipe Sub-Assy, Oil
9003116057 90031-16057 BOLT STUD
9003119090 90031-19090 New Genuine Part
9003119090 90031-19153 New Genuine Part
9003178088 90031-78088 New Genuine Part
9003201151 90032-01151 New Genuine Part
9003401010 90034-01010 Bolt, Union(For Turbo Oil Inlet Pipe)
9011908231 90119-08231 New Genuine Part
9020114019 90201-14019 New Genuine Part
