XZU348

Toyota DYNA-TOYOACE · 2004 · 3,471 parts · 203 categories
XZU348 ×

← Back to categories

3,471 items

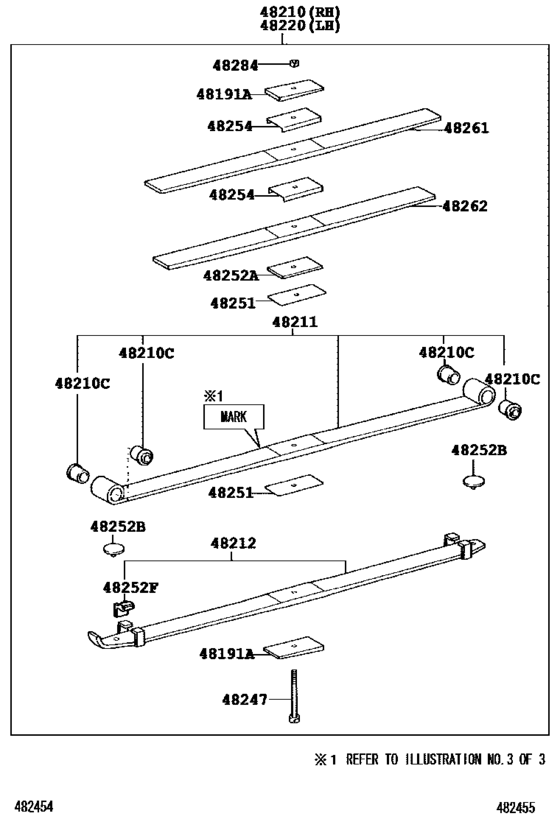

Rear Spring & Shock Absorber ([10.2006 - ] MAIN 2+HELPER 2-LEAF (0610- )BZU340,TRU340,XZU34#,378,388,548..20T) 32
#OEMPart name
48191 48192-37030 Wedge, Caster(For Rear Leaf Spring)
48210 48210-37380 Spring Assy, Rear Rh
48210 48210-37381 Spring Assy, Rear Rh
48210 48210-37390 Spring Assy, Rear Rh
48210 48210-37391 Spring Assy, Rear Rh
48210 90389-16026 Bush, Front Spring No.2 Shackle
48211 48201-37380 Leaf, Rear Spring, No.1
48211 48201-37381 Leaf, Rear Spring, No.1
48211 48201-37390 Leaf, Rear Spring, No.1
48211 48201-37391 Leaf, Rear Spring, No.1
48212 48202-37380 Leaf, Rear Spring, No.2
48212 48202-37381 Leaf, Rear Spring, No.2
48212 48252-37521 Silencer, Front Spring, No.1
48212 48202-37390 Leaf, Rear Spring, No.2
48212 48202-37391 Leaf, Rear Spring, No.2
48247 48247-26360 Bolt, Rear Spring, Center
48247 48247-37381 Bolt, Rear Spring, Center
48251 48251-36530 Spacer, Front Leaf Spring, No.1
48252 48251-3B720 Spacer, Rear Spring Leaf
48252 48252-37670 Silencer, Front Spring, No.1
48252 48252-37380 Silencer, Rear Spring
48254 48254-37380 Spacer, Rear Spring Leaf
48254 48282-37711 Spacer, Rear Spring Leaf
48261 48213-37380 Leaf, Rear Helper Spring, No.1
48261 48213-37381 Leaf, Rear Helper Spring, No.1
48261 48213-37390 Leaf, Rear Helper Spring, No.1
48261 48213-37391 Leaf, Rear Helper Spring, No.1
48262 48214-37380 Leaf, Rear Helper Spring, No.2
48262 48214-37381 Leaf, Rear Helper Spring, No.2
48262 48214-37390 Leaf, Rear Helper Spring, No.2
48262 48214-37391 Leaf, Rear Helper Spring, No.2
48284 48284-37130 Nut, Front Spring Center Bolt
