| 47312-37860 |
Tube, Front Brake, Frame, No.2 |

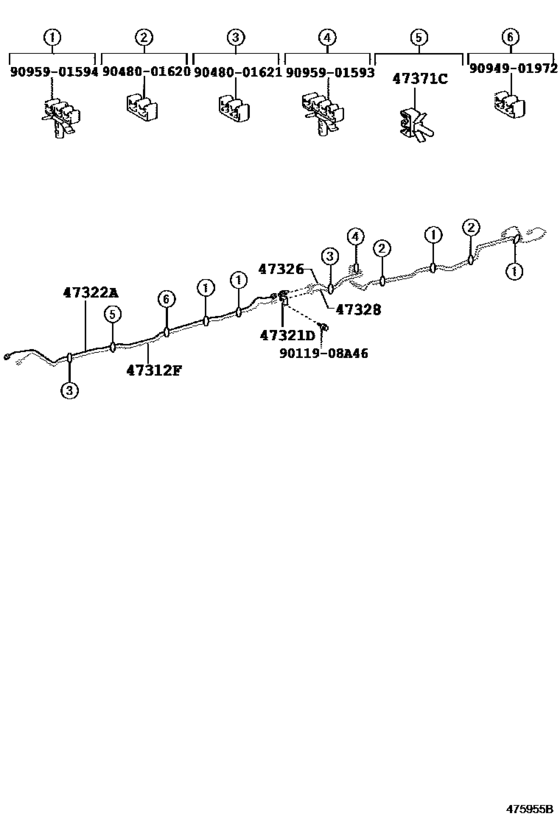

Brake Tube & Clamp ([10.2006 - ] (0610- )XZU34#,548..20T,30T) |
| 47322-37860 |
Tube, Rear Brake, Frame No.2 |
Brake Tube & Clamp ([10.2006 - ] (0610- )XZU34#,548..20T,30T) |
| 47326-37490 |
Tube, Rear Brake, No.6 |
Brake Tube & Clamp ([10.2006 - ] (0610- )XZU34#,548..20T,30T) |
| 47328-37340 |
Tube, Rear Brake, No.8 |
Brake Tube & Clamp ([10.2006 - ] (0610- )XZU34#,548..20T,30T) |
| 47371-37100 |
Clamp, Brake Tube, No.6 |
Brake Tube & Clamp ([10.2006 - ] (0610- )XZU34#,548..20T,30T) |
| 90119-08A46 |
BOLT WWASHER |
Brake Tube & Clamp ([10.2006 - ] (0610- )XZU34#,548..20T,30T) |
| 90412-10229 |
Way, No.1(For Rear Brake Tube) |
Brake Tube & Clamp ([10.2006 - ] (0610- )XZU34#,548..20T,30T) |
| 90480-01620 |
Grommet, No.1(For Front Brake Tube) |
Brake Tube & Clamp ([10.2006 - ] (0610- )XZU34#,548..20T,30T) |
| 90480-01621 |
Grommet(For Front Brake Tube) |
Brake Tube & Clamp ([10.2006 - ] (0610- )XZU34#,548..20T,30T) |
| 90949-01972 |
Grommet, No.1(For Front Brake Tube) |
Brake Tube & Clamp ([10.2006 - ] (0610- )XZU34#,548..20T,30T) |
| 90959-01593 |
Clamp, Brake Tube, No.6 |
Brake Tube & Clamp ([10.2006 - ] (0610- )XZU34#,548..20T,30T) |
| 90959-01594 |
Clamp, Brake Tube, No.9 |
Brake Tube & Clamp ([10.2006 - ] (0610- )XZU34#,548..20T,30T) |
