XZU347

Toyota DYNA-TOYOACE · 1999 · 6,375 parts · 399 categories
XZU347 ×

← Back to categories

6,375 items

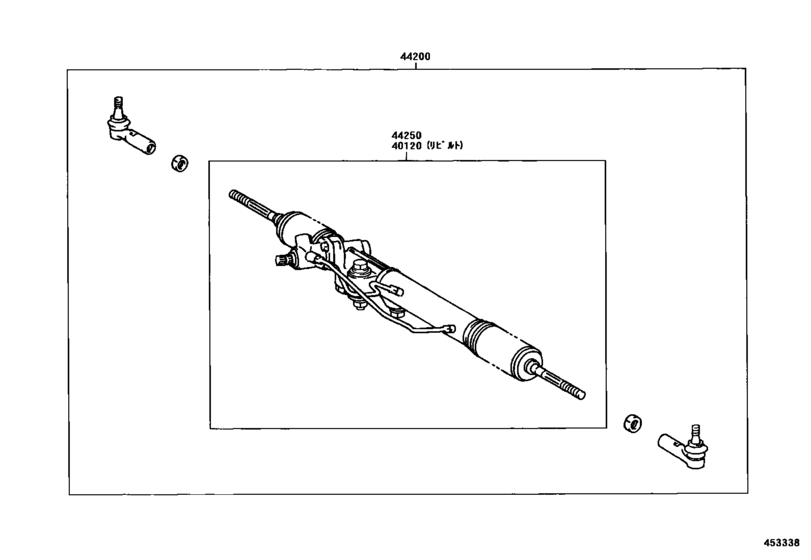

Front Steering Gear & Link ([05.1999 - 06.2004] (9905-0406)BU306,346,XZU306,307,337,346,347) 60
#OEMPart name
4445 04445-37030 Gasket Kit, Power Steering Gear(For Rack & Pinion)
4455 04455-43010 Gasket Kit, Power Steering Control Valve Overhole
40120 40120-37030 Gear Assy,power Steering,rebuilt
44015 44015-43010 Nut Sub-Assy, Bearing Guide
44015 90301-43002 Ring, O(For Bearing Guide Nut)
44015 90310-25027 Seal, Oil(For Bearing Guide Nut)
44200 44200-37030 Link Assy, Power Steering
44200 44200-37050 Link Assy, Power Steering
44201 44201-37020 Valve Sub-Assy, Power Steering Control
44201 44201-37030 Valve Sub-Assy, Power Steering Control
44201 90562-33007 Ring(For Power Steering Control Valve)
44201 90364-13003 Bearing(For Power Steering Control Valve Lower)
44203 44203-37030 Housing Sub-Assy, Power Steering Rack
44204 44204-37020 Rack Sub-Assy, Power Steering
44204 90301-48005 Ring(For Rack Steering Piston)
44204 90562-52001 Ring(For Rack Steering Piston)
44210 44210-37020 Valve Assy, Power Steering Control
44210 44210-37030 Valve Assy, Power Steering Control
44210 90410-06005 Seat, Union(Pressure Control Valve Assy)
44210 90301-51001 Ring, O(For Adjuster Plug)
44210 90311-19013 Seal, Oil(For Power Steering Control Valve)
44210 90363-19003 Bearing(For Rear Steering Control Valve Housing)
44211 44211-60020 Housing, Control Valve
44222 45222-32010 Cover, Dust(For Power Steering Gear)
44222 45222-51010 Cover, Dust(For Power Steering Gear)
44250 44250-37030 Gear Assy, Power Steering(For Rack & Pinion)
44253 90310-35013 Seal, Oil(For Power Steering Rack Housing)
44253 90560-35014 Spacer(For Power Steering Rack Housing)
44275 44275-37040 Stopper, Cylinder End
44275 90301-52005 Ring, O(For Power Steering Rack Housing)
44277 44277-37010 Seat, Rack Guide
44418 44418-37020 Tube, Steering Right Turn Pressure
44418 90410-04002 Seat, Union(For Power Steering Rack Housing)
44419 44419-37020 Tube, Steering Left Turn Pressure
45046 45046-39445 End Sub-Assy, Tie Rod, Rh
45046 90171-16005 Nut, Castle(For Tie Rod End)
45503 45503-39195 End Sub-Assy, Steering Rack
45503 90214-18002 Washer, Claw(For Steering Rack End)
45515 45515-37020 Bracket, Steering Rack Housing, No.2
45517 45517-60010 Grommet, Steering Rack Housing, No.2
45523 45523-37010 Guide, Rack(For Steering Gear)
45523 90501-23024 Spring(For Power Steering Rack Guide)
45524 45524-37010 Cap, Steering Rack Guide Spring
45524 90179-48003 Nut(For Steering Rack Guide Spring Cap)
45535 45535-37010 Boot, Steering Rack, No.1
45535 90460-62006 Clamp(For Steering Rack Boot No.1)
9010516066 90105-16066 New Genuine Part
9011914048 90119-14048 New Genuine Part
9011916007 90119-16007 New Genuine Part
9017019001 90170-19001 Nut (For Rear Axle Shaft)
9017916015 90179-16015 NUT
9025204003 90252-04003 PIN
9038635002 90386-35002 BUSH
9056016027 90560-16027 New Genuine Part
9151160825 91511-60825 Bolt (For Transfer Stiffener Plate)
9151160825 91511-B0825 Bolt (For Transfer Stiffener Plate)
9413001601 94130-01601 New Genuine Part
9462211600 94622-11600 WASHER
9462241600 94622-41600 WASHER PLATE
9613442300 96134-42300 Clip Or Clamp(For Ventilation Hose)
