Search › Model › XZU347

XZU347

Toyota DYNA-TOYOACE · 1999 · 6,375 parts · 399 categories

6,375 items

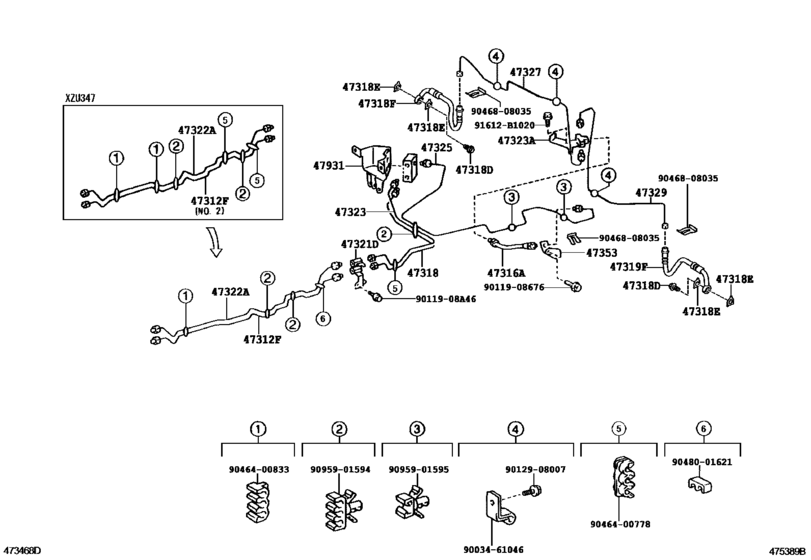

Brake Tube & Clamp ([10.2006 - ] (0610- )80T) 31

#	OEM	Part name
47312	47312-37512	Tube, Front Brake, Frame, No.2
47316	90947-02B29	Hose, Flexible(For Rear Brake Tube)
47318	47318-37180	Tube, Front Brake, No.8
47318	47318-37181	Tube, Front Brake, No.8
47318	90401-10015	Bolt, Union(For Clutch Mas Cylinder To Flexible Hose Tube)
47318	47389-30010	Gasket(For Clutch Master Cylinder To Flexible Hose Tube)
47318	90947-02E74	Hose, Flexible(For Rear Rh)
47319	90947-02D85	Hose, Flexible(For Rear Lh)
47321	90412-10229	Way, No.1(For Rear Brake Tube)
47322	47322-37890	Tube, Rear Brake, Frame No.2
47323	47323-37200	Tube, Rear Brake, No.3
47323	47323-37201	Tube, Rear Brake, No.3
47323	90904-13052	Way, No.3(For Rear Brake Tube)
47325	47325-37210	Tube, Rear Brake, No.5
47325	47325-37211	Tube, Rear Brake, No.5
47327	47327-37750	Tube, Rear Brake, No.7
47329	47329-37570	Tube, Rear Brake, No.9
47353	47353-37240	Bracket, Flexible Hose, Front Rh No.2
47931	47931-37020	Bracket, Load Sensing Valve
91612	91612-B1020	Bolt (For Transfer Case)Cover No.2
9011908	90119-08A46	BOLT WWASHER
9003461046	90034-61046	New Genuine Part
9011908676	90119-08676	BOLT WWASHER
9012908007	90129-08007	New Genuine Part
9046400778	90464-00778	Clamp, Brake Tube, No.1
9046400833	90464-00833	New Genuine Part
9046808035	90468-08035	CLIP
9046808035	90468-A0007	New Genuine Part
9048001621	90480-01621	Grommet(For Front Brake Tube)
9095901594	90959-01594	Clamp, Brake Tube, No.9
9095901595	90959-01595	Clamp, Brake Tube, No.1

OEM	Part name	Category
47312-37512	Tube, Front Brake, Frame, No.2	Brake Tube & Clamp ([10.2006 - ] (0610- )80T)
47318-37180	Tube, Front Brake, No.8	Brake Tube & Clamp ([10.2006 - ] (0610- )80T)
47318-37181	Tube, Front Brake, No.8	Brake Tube & Clamp ([10.2006 - ] (0610- )80T)
47322-37890	Tube, Rear Brake, Frame No.2	Brake Tube & Clamp ([10.2006 - ] (0610- )80T)
47323-37200	Tube, Rear Brake, No.3	Brake Tube & Clamp ([10.2006 - ] (0610- )80T)
47323-37201	Tube, Rear Brake, No.3	Brake Tube & Clamp ([10.2006 - ] (0610- )80T)
47325-37210	Tube, Rear Brake, No.5	Brake Tube & Clamp ([10.2006 - ] (0610- )80T)
47325-37211	Tube, Rear Brake, No.5	Brake Tube & Clamp ([10.2006 - ] (0610- )80T)
47327-37750	Tube, Rear Brake, No.7	Brake Tube & Clamp ([10.2006 - ] (0610- )80T)
47329-37570	Tube, Rear Brake, No.9	Brake Tube & Clamp ([10.2006 - ] (0610- )80T)
47353-37240	Bracket, Flexible Hose, Front Rh No.2	Brake Tube & Clamp ([10.2006 - ] (0610- )80T)
47389-30010	Gasket(For Clutch Master Cylinder To Flexible Hose Tube)	Brake Tube & Clamp ([10.2006 - ] (0610- )80T)
47931-37020	Bracket, Load Sensing Valve	Brake Tube & Clamp ([10.2006 - ] (0610- )80T)
90034-61046	New Genuine Part	Brake Tube & Clamp ([10.2006 - ] (0610- )80T)
90119-08676	BOLT WWASHER	Brake Tube & Clamp ([10.2006 - ] (0610- )80T)
90119-08A46	BOLT WWASHER	Brake Tube & Clamp ([10.2006 - ] (0610- )80T)
90129-08007	New Genuine Part	Brake Tube & Clamp ([10.2006 - ] (0610- )80T)
90401-10015	Bolt, Union(For Clutch Mas Cylinder To Flexible Hose Tube)	Brake Tube & Clamp ([10.2006 - ] (0610- )80T)
90412-10229	Way, No.1(For Rear Brake Tube)	Brake Tube & Clamp ([10.2006 - ] (0610- )80T)
90464-00778	Clamp, Brake Tube, No.1	Brake Tube & Clamp ([10.2006 - ] (0610- )80T)
90464-00833	New Genuine Part	Brake Tube & Clamp ([10.2006 - ] (0610- )80T)
90468-08035	CLIP	Brake Tube & Clamp ([10.2006 - ] (0610- )80T)
90468-A0007	New Genuine Part	Brake Tube & Clamp ([10.2006 - ] (0610- )80T)
90480-01621	Grommet(For Front Brake Tube)	Brake Tube & Clamp ([10.2006 - ] (0610- )80T)
90904-13052	Way, No.3(For Rear Brake Tube)	Brake Tube & Clamp ([10.2006 - ] (0610- )80T)
90947-02B29	Hose, Flexible(For Rear Brake Tube)	Brake Tube & Clamp ([10.2006 - ] (0610- )80T)
90947-02D85	Hose, Flexible(For Rear Lh)	Brake Tube & Clamp ([10.2006 - ] (0610- )80T)
90947-02E74	Hose, Flexible(For Rear Rh)	Brake Tube & Clamp ([10.2006 - ] (0610- )80T)
90959-01594	Clamp, Brake Tube, No.9	Brake Tube & Clamp ([10.2006 - ] (0610- )80T)
90959-01595	Clamp, Brake Tube, No.1	Brake Tube & Clamp ([10.2006 - ] (0610- )80T)
91612-B1020	Bolt (For Transfer Case)Cover No.2	Brake Tube & Clamp ([10.2006 - ] (0610- )80T)
