Search › Model › XZU346

XZU346

Toyota DYNA-TOYOACE · 1999 · 3,716 parts · 217 categories

3,716 items

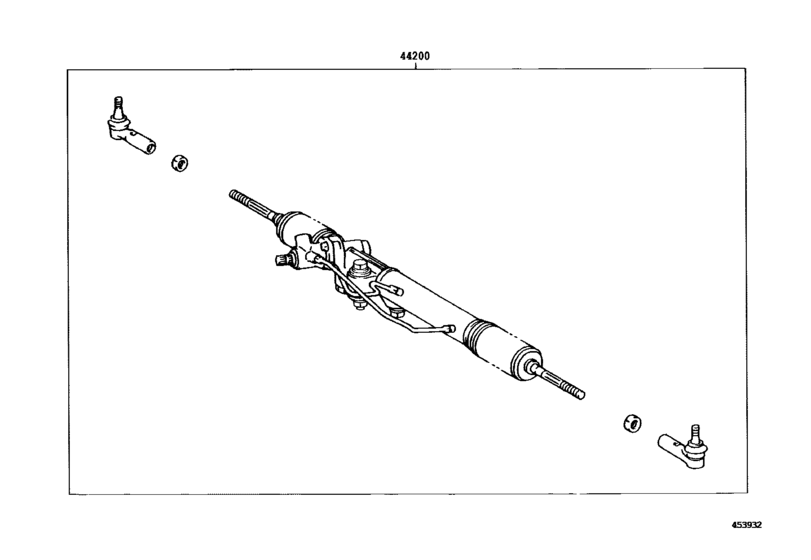

Front Steering Gear & Link ([06.2004 - ] (0406- )XZU306,308,336,338,346,348,368,378,38 8) 48

#	OEM	Part name
44015	44015-43010	Nut Sub-Assy, Bearing Guide
44015	90301-43002	Ring, O(For Bearing Guide Nut)
44015	90310-25027	Seal, Oil(For Bearing Guide Nut)
44200	44200-37050	Link Assy, Power Steering
44201	44201-37030	Valve Sub-Assy, Power Steering Control
44201	90562-33007	Ring(For Power Steering Control Valve)
44201	90364-13003	Bearing(For Power Steering Control Valve Lower)
44203	44203-37050	Housing Sub-Assy, Power Steering Rack
44204	44204-37020	Rack Sub-Assy, Power Steering
44204	90301-48005	Ring(For Rack Steering Piston)
44204	90562-52001	Ring(For Rack Steering Piston)
44210	44210-37030	Valve Assy, Power Steering Control
44210	90410-06005	Seat, Union(Pressure Control Valve Assy)
44210	90301-51001	Ring, O(For Adjuster Plug)
44210	90311-19013	Seal, Oil(For Power Steering Control Valve)
44210	90363-19003	Bearing(For Rear Steering Control Valve Housing)
44211	44022-37020	Housing, Control Valve
44253	90310-35013	Seal, Oil(For Power Steering Rack Housing)
44253	90560-35014	Spacer(For Power Steering Rack Housing)
44275	44275-37060	Stopper, Cylinder End
44275	90301-52005	Ring, O(For Power Steering Rack Housing)
44277	44277-37010	Seat, Rack Guide
44418	44418-37030	Tube, Steering Right Turn Pressure
44419	44419-37030	Tube, Steering Left Turn Pressure
45046	45046-39825	End Sub-Assy, Tie Rod
45046	90171-16005	Nut, Castle(For Tie Rod End)
45503	45503-39195	End Sub-Assy, Steering Rack
45503	90214-18002	Washer, Claw(For Steering Rack End)
45515	45515-37020	Bracket, Steering Rack Housing, No.2
45517	45517-60010	Grommet, Steering Rack Housing, No.2
45523	45523-37010	Guide, Rack(For Steering Gear)
45523	90501-23024	Spring(For Power Steering Rack Guide)
45524	45524-37010	Cap, Steering Rack Guide Spring
45524	90179-48003	Nut(For Steering Rack Guide Spring Cap)
45535	45535-37010	Boot, Steering Rack, No.1
45535	90460-62006	Clamp(For Steering Rack Boot No.1)
91511	91511-B0825	Bolt (For Transfer Stiffener Plate)
9010516066	90105-16066	New Genuine Part
9011914048	90119-14048	New Genuine Part
9011916007	90119-16007	New Genuine Part
9017019001	90170-19001	Nut (For Rear Axle Shaft)
9017916015	90179-16015	NUT
9025204003	90252-04003	PIN
9038635002	90386-35002	BUSH
9056016027	90560-16027	New Genuine Part
9413001601	94130-01601	New Genuine Part
9462241600	94622-41600	WASHER PLATE
9613442300	96134-42300	Clip Or Clamp(For Ventilation Hose)

OEM	Part name	Category
44015-43010	Nut Sub-Assy, Bearing Guide	Front Steering Gear & Link ([06.2004 - ] (0406- )XZU306,308,336,338,346,348,368,378,38 8)
44022-37020	Housing, Control Valve	Front Steering Gear & Link ([06.2004 - ] (0406- )XZU306,308,336,338,346,348,368,378,38 8)
44200-37050	Link Assy, Power Steering	Front Steering Gear & Link ([06.2004 - ] (0406- )XZU306,308,336,338,346,348,368,378,38 8)
44201-37030	Valve Sub-Assy, Power Steering Control	Front Steering Gear & Link ([06.2004 - ] (0406- )XZU306,308,336,338,346,348,368,378,38 8)
44203-37050	Housing Sub-Assy, Power Steering Rack	Front Steering Gear & Link ([06.2004 - ] (0406- )XZU306,308,336,338,346,348,368,378,38 8)
44204-37020	Rack Sub-Assy, Power Steering	Front Steering Gear & Link ([06.2004 - ] (0406- )XZU306,308,336,338,346,348,368,378,38 8)
44210-37030	Valve Assy, Power Steering Control	Front Steering Gear & Link ([06.2004 - ] (0406- )XZU306,308,336,338,346,348,368,378,38 8)
44275-37060	Stopper, Cylinder End	Front Steering Gear & Link ([06.2004 - ] (0406- )XZU306,308,336,338,346,348,368,378,38 8)
44277-37010	Seat, Rack Guide	Front Steering Gear & Link ([06.2004 - ] (0406- )XZU306,308,336,338,346,348,368,378,38 8)
44418-37030	Tube, Steering Right Turn Pressure	Front Steering Gear & Link ([06.2004 - ] (0406- )XZU306,308,336,338,346,348,368,378,38 8)
44419-37030	Tube, Steering Left Turn Pressure	Front Steering Gear & Link ([06.2004 - ] (0406- )XZU306,308,336,338,346,348,368,378,38 8)
45046-39825	End Sub-Assy, Tie Rod	Front Steering Gear & Link ([06.2004 - ] (0406- )XZU306,308,336,338,346,348,368,378,38 8)
45503-39195	End Sub-Assy, Steering Rack	Front Steering Gear & Link ([06.2004 - ] (0406- )XZU306,308,336,338,346,348,368,378,38 8)
45515-37020	Bracket, Steering Rack Housing, No.2	Front Steering Gear & Link ([06.2004 - ] (0406- )XZU306,308,336,338,346,348,368,378,38 8)
45517-60010	Grommet, Steering Rack Housing, No.2	Front Steering Gear & Link ([06.2004 - ] (0406- )XZU306,308,336,338,346,348,368,378,38 8)
45523-37010	Guide, Rack(For Steering Gear)	Front Steering Gear & Link ([06.2004 - ] (0406- )XZU306,308,336,338,346,348,368,378,38 8)
45524-37010	Cap, Steering Rack Guide Spring	Front Steering Gear & Link ([06.2004 - ] (0406- )XZU306,308,336,338,346,348,368,378,38 8)
45535-37010	Boot, Steering Rack, No.1	Front Steering Gear & Link ([06.2004 - ] (0406- )XZU306,308,336,338,346,348,368,378,38 8)
90105-16066	New Genuine Part	Front Steering Gear & Link ([06.2004 - ] (0406- )XZU306,308,336,338,346,348,368,378,38 8)
90119-14048	New Genuine Part	Front Steering Gear & Link ([06.2004 - ] (0406- )XZU306,308,336,338,346,348,368,378,38 8)
90119-16007	New Genuine Part	Front Steering Gear & Link ([06.2004 - ] (0406- )XZU306,308,336,338,346,348,368,378,38 8)
90170-19001	Nut (For Rear Axle Shaft)	Front Steering Gear & Link ([06.2004 - ] (0406- )XZU306,308,336,338,346,348,368,378,38 8)
90171-16005	Nut, Castle(For Tie Rod End)	Front Steering Gear & Link ([06.2004 - ] (0406- )XZU306,308,336,338,346,348,368,378,38 8)
90179-16015	NUT	Front Steering Gear & Link ([06.2004 - ] (0406- )XZU306,308,336,338,346,348,368,378,38 8)
90179-48003	Nut(For Steering Rack Guide Spring Cap)	Front Steering Gear & Link ([06.2004 - ] (0406- )XZU306,308,336,338,346,348,368,378,38 8)
90214-18002	Washer, Claw(For Steering Rack End)	Front Steering Gear & Link ([06.2004 - ] (0406- )XZU306,308,336,338,346,348,368,378,38 8)
90252-04003	PIN	Front Steering Gear & Link ([06.2004 - ] (0406- )XZU306,308,336,338,346,348,368,378,38 8)
90301-43002	Ring, O(For Bearing Guide Nut)	Front Steering Gear & Link ([06.2004 - ] (0406- )XZU306,308,336,338,346,348,368,378,38 8)
90301-48005	Ring(For Rack Steering Piston)	Front Steering Gear & Link ([06.2004 - ] (0406- )XZU306,308,336,338,346,348,368,378,38 8)
90301-51001	Ring, O(For Adjuster Plug)	Front Steering Gear & Link ([06.2004 - ] (0406- )XZU306,308,336,338,346,348,368,378,38 8)
90301-52005	Ring, O(For Power Steering Rack Housing)	Front Steering Gear & Link ([06.2004 - ] (0406- )XZU306,308,336,338,346,348,368,378,38 8)
90310-25027	Seal, Oil(For Bearing Guide Nut)	Front Steering Gear & Link ([06.2004 - ] (0406- )XZU306,308,336,338,346,348,368,378,38 8)
90310-35013	Seal, Oil(For Power Steering Rack Housing)	Front Steering Gear & Link ([06.2004 - ] (0406- )XZU306,308,336,338,346,348,368,378,38 8)
90311-19013	Seal, Oil(For Power Steering Control Valve)	Front Steering Gear & Link ([06.2004 - ] (0406- )XZU306,308,336,338,346,348,368,378,38 8)
90363-19003	Bearing(For Rear Steering Control Valve Housing)	Front Steering Gear & Link ([06.2004 - ] (0406- )XZU306,308,336,338,346,348,368,378,38 8)
90364-13003	Bearing(For Power Steering Control Valve Lower)	Front Steering Gear & Link ([06.2004 - ] (0406- )XZU306,308,336,338,346,348,368,378,38 8)
90386-35002	BUSH	Front Steering Gear & Link ([06.2004 - ] (0406- )XZU306,308,336,338,346,348,368,378,38 8)
90410-06005	Seat, Union(Pressure Control Valve Assy)	Front Steering Gear & Link ([06.2004 - ] (0406- )XZU306,308,336,338,346,348,368,378,38 8)
90460-62006	Clamp(For Steering Rack Boot No.1)	Front Steering Gear & Link ([06.2004 - ] (0406- )XZU306,308,336,338,346,348,368,378,38 8)
90501-23024	Spring(For Power Steering Rack Guide)	Front Steering Gear & Link ([06.2004 - ] (0406- )XZU306,308,336,338,346,348,368,378,38 8)
90560-16027	New Genuine Part	Front Steering Gear & Link ([06.2004 - ] (0406- )XZU306,308,336,338,346,348,368,378,38 8)
90560-35014	Spacer(For Power Steering Rack Housing)	Front Steering Gear & Link ([06.2004 - ] (0406- )XZU306,308,336,338,346,348,368,378,38 8)
90562-33007	Ring(For Power Steering Control Valve)	Front Steering Gear & Link ([06.2004 - ] (0406- )XZU306,308,336,338,346,348,368,378,38 8)
90562-52001	Ring(For Rack Steering Piston)	Front Steering Gear & Link ([06.2004 - ] (0406- )XZU306,308,336,338,346,348,368,378,38 8)
91511-B0825	Bolt (For Transfer Stiffener Plate)	Front Steering Gear & Link ([06.2004 - ] (0406- )XZU306,308,336,338,346,348,368,378,38 8)
94130-01601	New Genuine Part	Front Steering Gear & Link ([06.2004 - ] (0406- )XZU306,308,336,338,346,348,368,378,38 8)
94622-41600	WASHER PLATE	Front Steering Gear & Link ([06.2004 - ] (0406- )XZU306,308,336,338,346,348,368,378,38 8)
96134-42300	Clip Or Clamp(For Ventilation Hose)	Front Steering Gear & Link ([06.2004 - ] (0406- )XZU306,308,336,338,346,348,368,378,38 8)
