XZU346

Toyota DYNA-TOYOACE · 1999 · 3,716 parts · 217 categories
XZU346 ×

← Back to categories

3,716 items

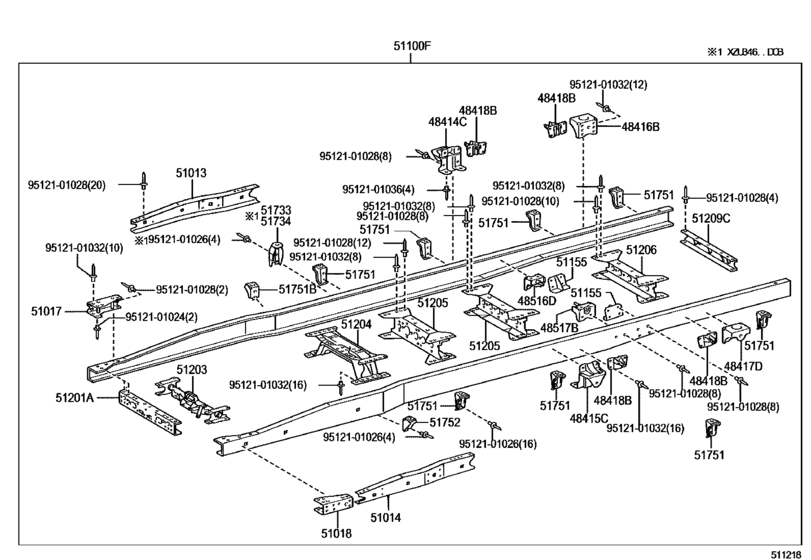

Frame ([06.2004 - 10.2006] ﾌﾚｰﾑ (0406-0610)XZU346,348) 28
#OEMPart name
48414 48414-37100 Bracket, Spring, No.3 Rh
48415 48415-37020 Bracket, Spring, No.3 Lh
48416 48416-37100 Bracket, Spring, No.4 Rh
48418 48418-36090 Bracket, Helper Spring, Front
48516 48505-37010 Bracket Sub-Assy, Rear Shock Absorber, Upper Rh
51013 51013-37192 Channel Sub-Assy, Side Rail, Inner Front Rh
51014 51014-37192 Channel Sub-Assy, Side Rail, Inner Front Lh
51017 51017-37150 Reinforcement Sub-Assy, Side Rail, No.1 Rh
51018 51018-37021 Reinforcement Sub-Assy, Side Rail, No.1 Lh
51100 51001-37D70 Frame Sub-Assy
51100 51001-37D71 Frame Sub-Assy
51100 51001-37E70 Frame Sub-Assy
51100 51001-37E80 Frame Sub-Assy
51100 51001-37E71 Frame Sub-Assy
51100 51001-37E81 Frame Sub-Assy
51155 51155-37060 Stiffener, Frame Side Rail, Rear Rh
51201 51211-37090 Crossmember Sub-Assy, Frame, Front
51203 51202-37150 Crossmember Sub-Assy, Frame, No.2
51204 51203-37060 Crossmember Sub-Assy, Frame, No.3
51204 51203-37061 Crossmember Sub-Assy, Frame, No.3
51205 51205-37060 Crossmember Sub-Assy, Frame, No.4
51206 51206-37010 Crossmember Sub-Assy, Frame, No.5
51209 51291-37040 Crossmember Sub-Assy, Frame, Rear
9512101024 95121-01024 New Genuine Part
9512101026 95121-01026 RIVET
9512101028 95121-01028 RIVET
9512101032 95121-01032 RIVET
9512101036 95121-01036 RIVET
