Search › Model › XZU345

XZU345

Toyota DYNA-TOYOACE · 2003 · 3,183 parts · 169 categories

3,183 items

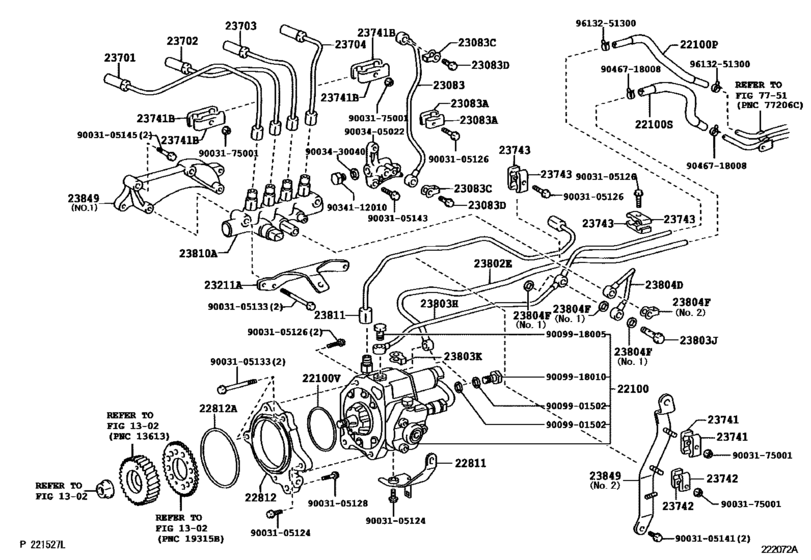

Injection Pump Assembly ([12.2003 - 10.2006] (0312-0610)N04C) 53

#	OEM	Part name
22100	22100-78180	Pump Assy, Injection Or Supply
22100	22100-78187	Pump Assy, Injection Or Supply
22100	22100-78181	Pump Assy, Injection Or Supply
22100	22100-78182	Pump Assy, Injection Or Supply
22100	22100-78183	Pump Assy, Injection Or Supply
22100	23273-78240	Hose, Fuel(For Fuel Pipe To Fuel Tube)
22100	23271-78220	Hose, Fuel(For Injection Pump To Fuel Pipe)
22100	90033-01075	Ring, O(For Injection Pump)
22811	82702-37350	Stay, Injection Pump, No.1
22811	82702-E0P50	Stay, Injection Pump, No.1
22812	22811-78110	Stay, Injection Pump, No.2
22812	90033-01076	Ring, O
23083	23803-78150	Pipe Sub-Assy, Nozzle Leakage, No.3
23083	90034-68024	Clamp, Nozzle Leakage
23083	90032-09020	Gasket(Nozzle Lekage Pipe No.3)
23083	90034-01009	Bolt, Union(For Nozzle Lekage Pipe No.3)
23083	21811-E0060	Bolt, Union(For Nozzle Lekage Pipe No.3)
23211	23849-78110	Bracket(For Injection Pipe No.3)
23211	23849-E0210	Bracket(For Injection Pipe No.3)
23701	23701-78090	Pipe Sub-Assy, Injection, No.1
23702	23702-78090	Pipe Sub-Assy, Injection, No.2
23703	23703-78090	Pipe Sub-Assy, Injection, No.3
23704	23704-78080	Pipe Sub-Assy, Injection, No.4
23741	90034-68032	Clamp, Injection Pipe, No.1
23741	23741-78010	Clamp, Injection Pipe
23742	90034-68026	Clamp, Injection Pipe, No.2
23743	90034-68033	Clamp, Injection Pipe, No.1
23802	23811-78130	Pipe Sub-Assy, Fuel
23803	23803-78140	Pipe Sub-Assy, Fuel Return
23803	90031-09074	Bolt, Union(For Fuel Return Pipe)
23803	90032-09021	Gasket
23804	23803-78160	Pipe Sub-Assy, Fuel, No.4
23804	90034-30040	Gasket(For Turbo Water Pipe)
23810	23810-78020	Rail Assy, Common
23810	23810-E0080	Rail Assy, Common
23811	23811-78120	Pipe, Fuel(For Fuel Filter To Injection Pump)
23849	23849-78050	Support, Fuel
23849	23849-78060	Support, Fuel
9003105124	90031-05124	New Genuine Part
9003105126	90031-05126	New Genuine Part
9003105128	90031-05128	Bolt(For Cylinder Head Cover)
9003105133	90031-05133	Bolt(For Cylinder Head Cover)
9003105141	90031-05141	New Genuine Part
9003105143	90031-05143	New Genuine Part
9003105145	90031-05145	New Genuine Part
9003175001	90031-75001	New Genuine Part
9003405022	90034-05022	New Genuine Part
9009901502	90099-01502	Washer(For Inlet Follow Screw)
9009918005	90099-18005	Screw, Fuel Inlet Follow
9009918010	90099-18010	Screw, Fuel Pipe Follow
9034112010	90341-12010	Plug, W/head Taper Screw
9046718008	90467-18008	Clip(For Water By-Pass Hose No.2)
9613251300	96132-51300	Clip(For Ventilation Hose No.2)

OEM	Part name	Category
21811-E0060	Bolt, Union(For Nozzle Lekage Pipe No.3)	Injection Pump Assembly ([12.2003 - 10.2006] (0312-0610)N04C)
22100-78180	Pump Assy, Injection Or Supply	Injection Pump Assembly ([12.2003 - 10.2006] (0312-0610)N04C)
22100-78181	Pump Assy, Injection Or Supply	Injection Pump Assembly ([12.2003 - 10.2006] (0312-0610)N04C)
22100-78182	Pump Assy, Injection Or Supply	Injection Pump Assembly ([12.2003 - 10.2006] (0312-0610)N04C)
22100-78183	Pump Assy, Injection Or Supply	Injection Pump Assembly ([12.2003 - 10.2006] (0312-0610)N04C)
22100-78187	Pump Assy, Injection Or Supply	Injection Pump Assembly ([12.2003 - 10.2006] (0312-0610)N04C)
22811-78110	Stay, Injection Pump, No.2	Injection Pump Assembly ([12.2003 - 10.2006] (0312-0610)N04C)
23271-78220	Hose, Fuel(For Injection Pump To Fuel Pipe)	Injection Pump Assembly ([12.2003 - 10.2006] (0312-0610)N04C)
23273-78240	Hose, Fuel(For Fuel Pipe To Fuel Tube)	Injection Pump Assembly ([12.2003 - 10.2006] (0312-0610)N04C)
23701-78090	Pipe Sub-Assy, Injection, No.1	Injection Pump Assembly ([12.2003 - 10.2006] (0312-0610)N04C)
23702-78090	Pipe Sub-Assy, Injection, No.2	Injection Pump Assembly ([12.2003 - 10.2006] (0312-0610)N04C)
23703-78090	Pipe Sub-Assy, Injection, No.3	Injection Pump Assembly ([12.2003 - 10.2006] (0312-0610)N04C)
23704-78080	Pipe Sub-Assy, Injection, No.4	Injection Pump Assembly ([12.2003 - 10.2006] (0312-0610)N04C)
23741-78010	Clamp, Injection Pipe	Injection Pump Assembly ([12.2003 - 10.2006] (0312-0610)N04C)
23803-78140	Pipe Sub-Assy, Fuel Return	Injection Pump Assembly ([12.2003 - 10.2006] (0312-0610)N04C)
23803-78150	Pipe Sub-Assy, Nozzle Leakage, No.3	Injection Pump Assembly ([12.2003 - 10.2006] (0312-0610)N04C)
23803-78160	Pipe Sub-Assy, Fuel, No.4	Injection Pump Assembly ([12.2003 - 10.2006] (0312-0610)N04C)
23810-78020	Rail Assy, Common	Injection Pump Assembly ([12.2003 - 10.2006] (0312-0610)N04C)
23810-E0080	Rail Assy, Common	Injection Pump Assembly ([12.2003 - 10.2006] (0312-0610)N04C)
23811-78120	Pipe, Fuel(For Fuel Filter To Injection Pump)	Injection Pump Assembly ([12.2003 - 10.2006] (0312-0610)N04C)
23811-78130	Pipe Sub-Assy, Fuel	Injection Pump Assembly ([12.2003 - 10.2006] (0312-0610)N04C)
23849-78050	Support, Fuel	Injection Pump Assembly ([12.2003 - 10.2006] (0312-0610)N04C)
23849-78060	Support, Fuel	Injection Pump Assembly ([12.2003 - 10.2006] (0312-0610)N04C)
23849-78110	Bracket(For Injection Pipe No.3)	Injection Pump Assembly ([12.2003 - 10.2006] (0312-0610)N04C)
23849-E0210	Bracket(For Injection Pipe No.3)	Injection Pump Assembly ([12.2003 - 10.2006] (0312-0610)N04C)
82702-37350	Stay, Injection Pump, No.1	Injection Pump Assembly ([12.2003 - 10.2006] (0312-0610)N04C)
82702-E0P50	Stay, Injection Pump, No.1	Injection Pump Assembly ([12.2003 - 10.2006] (0312-0610)N04C)
90031-05124	New Genuine Part	Injection Pump Assembly ([12.2003 - 10.2006] (0312-0610)N04C)
90031-05126	New Genuine Part	Injection Pump Assembly ([12.2003 - 10.2006] (0312-0610)N04C)
90031-05128	Bolt(For Cylinder Head Cover)	Injection Pump Assembly ([12.2003 - 10.2006] (0312-0610)N04C)
90031-05133	Bolt(For Cylinder Head Cover)	Injection Pump Assembly ([12.2003 - 10.2006] (0312-0610)N04C)
90031-05141	New Genuine Part	Injection Pump Assembly ([12.2003 - 10.2006] (0312-0610)N04C)
90031-05143	New Genuine Part	Injection Pump Assembly ([12.2003 - 10.2006] (0312-0610)N04C)
90031-05145	New Genuine Part	Injection Pump Assembly ([12.2003 - 10.2006] (0312-0610)N04C)
90031-09074	Bolt, Union(For Fuel Return Pipe)	Injection Pump Assembly ([12.2003 - 10.2006] (0312-0610)N04C)
90031-75001	New Genuine Part	Injection Pump Assembly ([12.2003 - 10.2006] (0312-0610)N04C)
90032-09020	Gasket(Nozzle Lekage Pipe No.3)	Injection Pump Assembly ([12.2003 - 10.2006] (0312-0610)N04C)
90032-09021	Gasket	Injection Pump Assembly ([12.2003 - 10.2006] (0312-0610)N04C)
90033-01075	Ring, O(For Injection Pump)	Injection Pump Assembly ([12.2003 - 10.2006] (0312-0610)N04C)
90033-01076	Ring, O	Injection Pump Assembly ([12.2003 - 10.2006] (0312-0610)N04C)
90034-01009	Bolt, Union(For Nozzle Lekage Pipe No.3)	Injection Pump Assembly ([12.2003 - 10.2006] (0312-0610)N04C)
90034-05022	New Genuine Part	Injection Pump Assembly ([12.2003 - 10.2006] (0312-0610)N04C)
90034-30040	Gasket(For Turbo Water Pipe)	Injection Pump Assembly ([12.2003 - 10.2006] (0312-0610)N04C)
90034-68024	Clamp, Nozzle Leakage	Injection Pump Assembly ([12.2003 - 10.2006] (0312-0610)N04C)
90034-68026	Clamp, Injection Pipe, No.2	Injection Pump Assembly ([12.2003 - 10.2006] (0312-0610)N04C)
90034-68032	Clamp, Injection Pipe, No.1	Injection Pump Assembly ([12.2003 - 10.2006] (0312-0610)N04C)
90034-68033	Clamp, Injection Pipe, No.1	Injection Pump Assembly ([12.2003 - 10.2006] (0312-0610)N04C)
90099-01502	Washer(For Inlet Follow Screw)	Injection Pump Assembly ([12.2003 - 10.2006] (0312-0610)N04C)
90099-18005	Screw, Fuel Inlet Follow	Injection Pump Assembly ([12.2003 - 10.2006] (0312-0610)N04C)
90099-18010	Screw, Fuel Pipe Follow	Injection Pump Assembly ([12.2003 - 10.2006] (0312-0610)N04C)
90341-12010	Plug, W/head Taper Screw	Injection Pump Assembly ([12.2003 - 10.2006] (0312-0610)N04C)
90467-18008	Clip(For Water By-Pass Hose No.2)	Injection Pump Assembly ([12.2003 - 10.2006] (0312-0610)N04C)
96132-51300	Clip(For Ventilation Hose No.2)	Injection Pump Assembly ([12.2003 - 10.2006] (0312-0610)N04C)
