XZU340

Toyota DYNA-TOYOACE · 1999 · 6,979 parts · 416 categories
XZU340 ×

← Back to categories

6,979 items

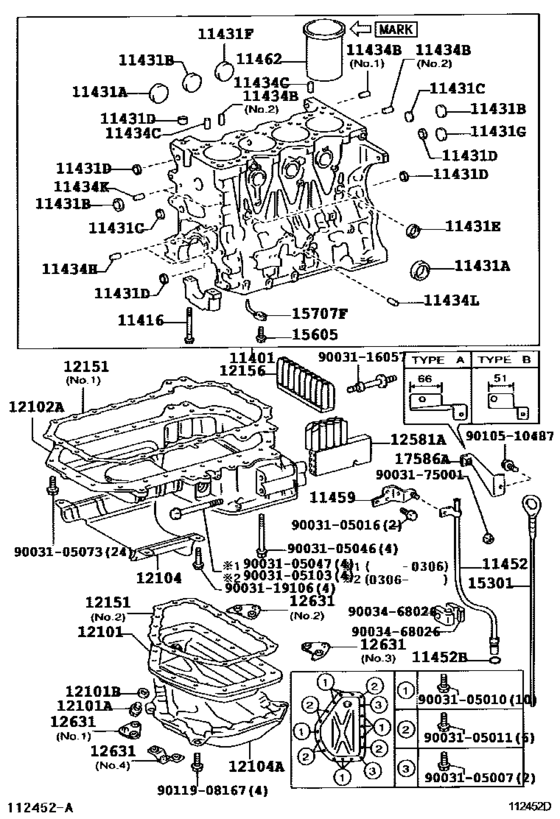

Cylinder Block ([06.2002 - 06.2004] (0206-0406)J05C..XZU300,330,340) 62
#OEMPart name
11401 11401-78071 Block Sub-Assy, Cylinder
11401 11401-E0692 Block Sub-assy, Cylinder
11401 90032-50049 Pin, Straight(For Clutch Housing Set)
11401 90033-31020 Plug, Tight, No.3
11416 90031-09052 Bolt(For Crankshaft Bearing Cap Set)
11431 90033-31026 Plug, Tight, No.4
11431 90033-31019 Plug, Tight, No.2(For Cylinder Block)
11431 90033-31027 Plug, Tight, No.2(For Cylinder Block)
11431 90033-31021 Plug, Tight, No.3(For Cylinder Block)
11431 90033-31025 Plug, Tight, No.5(For Cylinder Block)
11434 90250-08016 Pin, Straight, No.1
11434 90250-08015 Pin, Straight(For Flywheel Housing)
11452 11452-78020 Guide, Oil Level Gage
11452 90033-01058 Ring, O(For Oil Level Gage Guide)
11462 11461-78060 Liner, Cylinder
11462 11461-78070 Liner, Cylinder
11462 11461-78080 Liner, Cylinder
12101 12101-78020 Pan Sub-Assy, Oil
12101 12101-E0390 Pan Sub-Assy, Oil
12101 90033-41020 Plug(For Oil Pan Drain)
12101 90202-18002 Gasket(For Oil Pan Drain Plug)
12101 90034-30047 Gasket(For Oil Pan Drain Plug)
12102 12101-78060 Pan Sub-Assy, Oil, No.2
12102 12101-E0260 Pan Sub-Assy, Oil, No.2
12102 12111-78030 Pan Sub-Assy, Oil, No.2
12104 12104-78010 Cover Sub-Assy, Oil Pan, No.1
12104 12104-78012 Cover Sub-Assy, Oil Pan, No.1
12104 12104-78011 Cover Sub-Assy, Oil Pan, No.1
12104 12104-78031 Cover Sub-Assy, Oil Pan, No.2
12151 12151-78010 Gasket, Oil Pan
12151 12151-78020 Gasket, Oil Pan
12151 12151-78030 Gasket, Oil Pan
12156 12156-78010 Insulator, Oil Pan
12581 12581-78030 Insulator, Cylinder Block, No.1
12631 12631-78010 Bracket, Engine Cover
12631 12631-78020 Bracket, Engine Cover
12631 12631-78030 Bracket, Engine Cover
12631 12631-78050 Bracket, Engine Cover
15301 15301-78020 Gage Sub-Assy, Oil Level
15605 15703-78010 Valve Sub-Assy, Oil Check
15707 11418-78050 Pipe Sub-Assy, Oil
15707 15707-89103 Pipe Sub-Assy, Oil
17586 17586-78010 Bracket, Heat Insulator
9003105007 90031-05007 New Genuine Part
9003105010 90031-05010 New Genuine Part
9003105010 90031-05124 New Genuine Part
9003105011 90031-05011 New Genuine Part
9003105011 90031-05125 New Genuine Part
9003105016 90031-05016 New Genuine Part
9003105016 90031-05138 New Genuine Part
9003105046 90031-05046 Bolt(For Alternator)
9003105046 90031-05170 Bolt(For Alternator)
9003105047 90031-05047 New Genuine Part
9003105073 90031-05073 New Genuine Part
9003105103 90031-05103 New Genuine Part
9003116057 90031-16057 BOLT STUD
9003119106 90031-19106 New Genuine Part
9003175001 90031-75001 New Genuine Part
9003468026 90034-68026 Clamp, Injection Pipe, No.2
9010510487 90105-10487 New Genuine Part
9010510487 90031-05140 New Genuine Part
9011908167 90119-08167 New Genuine Part
