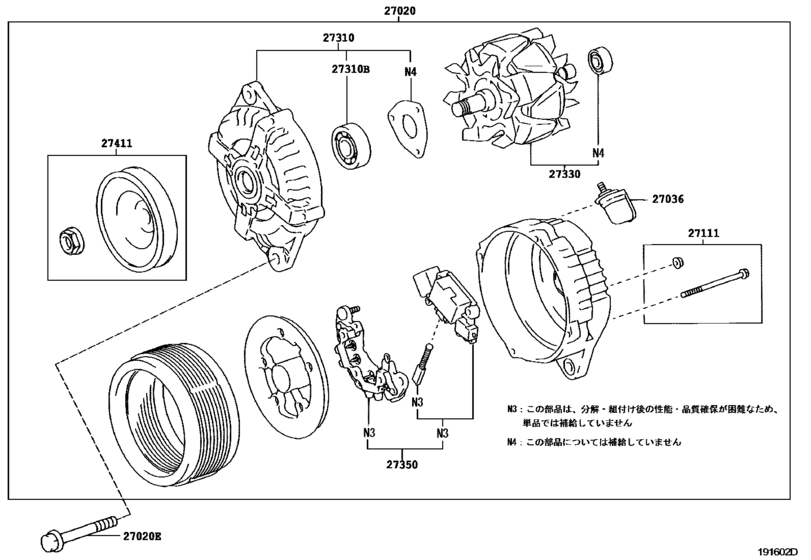

| 27036-89103 |
Terminal Sub-Assy, Lead Wire, Alternator |
Alternator ([05.1999 - 06.2004] 24V 80A (9905-0406)S05C..XZU307,347,372,382..SCB..IV3 ; (9905-0406)J05C,S05#..XZU300,301,30 2,306,33#,340,341 ,342,346,362,371..T2,T3,T4,T5..IV3,IV4) |
| 27060-78010 |
Alternator Assy |
Alternator ([05.1999 - 06.2004] 24V 80A (9905-0406)S05C..XZU307,347,372,382..SCB..IV3 ; (9905-0406)J05C,S05#..XZU300,301,30 2,306,33#,340,341 ,342,346,362,371..T2,T3,T4,T5..IV3,IV4) |
| 27060-78050 |
Alternator Assy |
Alternator ([05.1999 - 06.2004] 24V 80A (9905-0406)S05C..XZU307,347,372,382..SCB..IV3 ; (9905-0406)J05C,S05#..XZU300,301,30 2,306,33#,340,341 ,342,346,362,371..T2,T3,T4,T5..IV3,IV4) |
| 27111-89101 |
Bolt, Alternator |
Alternator ([05.1999 - 06.2004] 24V 80A (9905-0406)S05C..XZU307,347,372,382..SCB..IV3 ; (9905-0406)J05C,S05#..XZU300,301,30 2,306,33#,340,341 ,342,346,362,371..T2,T3,T4,T5..IV3,IV4) |
| 27230-89101 |
Pulley, Alternator |
Alternator ([05.1999 - 06.2004] 24V 80A (9905-0406)S05C..XZU307,347,372,382..SCB..IV3 ; (9905-0406)J05C,S05#..XZU300,301,30 2,306,33#,340,341 ,342,346,362,371..T2,T3,T4,T5..IV3,IV4) |
| 27310-89104 |
Frame Assy, Drive End, Alternator |
Alternator ([05.1999 - 06.2004] 24V 80A (9905-0406)S05C..XZU307,347,372,382..SCB..IV3 ; (9905-0406)J05C,S05#..XZU300,301,30 2,306,33#,340,341 ,342,346,362,371..T2,T3,T4,T5..IV3,IV4) |
| 27310-89105 |
Frame Assy, Drive End, Alternator |
Alternator ([05.1999 - 06.2004] 24V 80A (9905-0406)S05C..XZU307,347,372,382..SCB..IV3 ; (9905-0406)J05C,S05#..XZU300,301,30 2,306,33#,340,341 ,342,346,362,371..T2,T3,T4,T5..IV3,IV4) |
| 27330-17240 |
Rotor Assy, Alternator |
Alternator ([05.1999 - 06.2004] 24V 80A (9905-0406)S05C..XZU307,347,372,382..SCB..IV3 ; (9905-0406)J05C,S05#..XZU300,301,30 2,306,33#,340,341 ,342,346,362,371..T2,T3,T4,T5..IV3,IV4) |
| 27330-89104 |
Rotor Assy, Alternator |
Alternator ([05.1999 - 06.2004] 24V 80A (9905-0406)S05C..XZU307,347,372,382..SCB..IV3 ; (9905-0406)J05C,S05#..XZU300,301,30 2,306,33#,340,341 ,342,346,362,371..T2,T3,T4,T5..IV3,IV4) |
| 27360-89101 |
Frame Assy, Rectifier End |
Alternator ([05.1999 - 06.2004] 24V 80A (9905-0406)S05C..XZU307,347,372,382..SCB..IV3 ; (9905-0406)J05C,S05#..XZU300,301,30 2,306,33#,340,341 ,342,346,362,371..T2,T3,T4,T5..IV3,IV4) |
| 27411-89106 |
Pulley, Alternator |
Alternator ([05.1999 - 06.2004] 24V 80A (9905-0406)S05C..XZU307,347,372,382..SCB..IV3 ; (9905-0406)J05C,S05#..XZU300,301,30 2,306,33#,340,341 ,342,346,362,371..T2,T3,T4,T5..IV3,IV4) |
| 28252-89103 |
Bearing(For Alternator Drive End Frame) |
Alternator ([05.1999 - 06.2004] 24V 80A (9905-0406)S05C..XZU307,347,372,382..SCB..IV3 ; (9905-0406)J05C,S05#..XZU300,301,30 2,306,33#,340,341 ,342,346,362,371..T2,T3,T4,T5..IV3,IV4) |
| 90031-05027 |
Bolt(For Alternator) |
Alternator ([05.1999 - 06.2004] 24V 80A (9905-0406)S05C..XZU307,347,372,382..SCB..IV3 ; (9905-0406)J05C,S05#..XZU300,301,30 2,306,33#,340,341 ,342,346,362,371..T2,T3,T4,T5..IV3,IV4) |
| 90031-05093 |
Bolt(For Alternator) |
Alternator ([05.1999 - 06.2004] 24V 80A (9905-0406)S05C..XZU307,347,372,382..SCB..IV3 ; (9905-0406)J05C,S05#..XZU300,301,30 2,306,33#,340,341 ,342,346,362,371..T2,T3,T4,T5..IV3,IV4) |
| 90031-05158 |
Bolt(For Alternator) |
Alternator ([05.1999 - 06.2004] 24V 80A (9905-0406)S05C..XZU307,347,372,382..SCB..IV3 ; (9905-0406)J05C,S05#..XZU300,301,30 2,306,33#,340,341 ,342,346,362,371..T2,T3,T4,T5..IV3,IV4) |
| 90099-10192 |
Bearing(For Alternator Drive End Frame) |
Alternator ([05.1999 - 06.2004] 24V 80A (9905-0406)S05C..XZU307,347,372,382..SCB..IV3 ; (9905-0406)J05C,S05#..XZU300,301,30 2,306,33#,340,341 ,342,346,362,371..T2,T3,T4,T5..IV3,IV4) |
