Search › Model › XZU331
XZU331

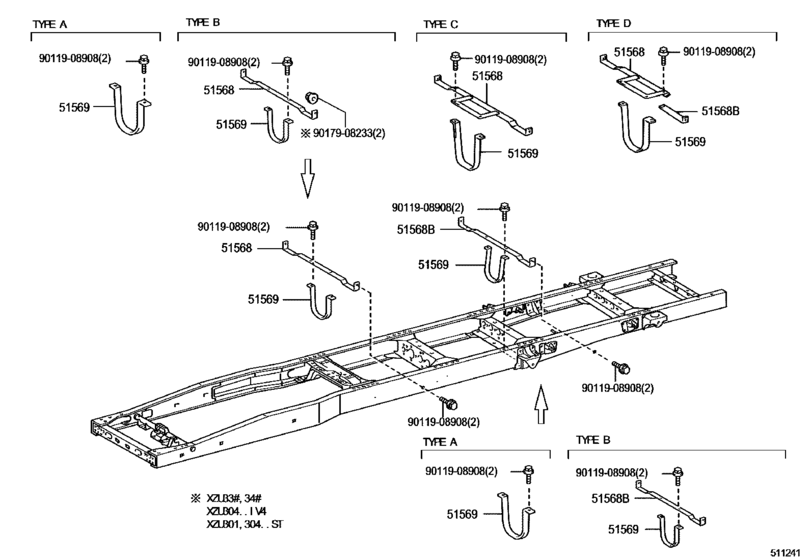

Frame ([06.2004 - ] ﾌﾟﾛﾍﾟﾗｼﾔﾌﾄｶﾞｰﾄﾞ (0406- )) 4
| # | OEM | Part name |
|---|---|---|
| 51568 | 51568-37560 | Bracket, Propeller Shaft Guard |
| 51569 | 51569-37310 | Guard, Propeller Shaft |
| 9011908908 | 90119-08908 | BOLT WWASHER |
| 9017908233 | 90179-08233 | NUT |
| OEM | Part name | Category |
|---|---|---|
| 51568-37560 | Bracket, Propeller Shaft Guard | Frame ([06.2004 - ] ﾌﾟﾛﾍﾟﾗｼﾔﾌﾄｶﾞｰﾄﾞ (0406- )) |
| 51569-37310 | Guard, Propeller Shaft | Frame ([06.2004 - ] ﾌﾟﾛﾍﾟﾗｼﾔﾌﾄｶﾞｰﾄﾞ (0406- )) |
| 90119-08908 | BOLT WWASHER | Frame ([06.2004 - ] ﾌﾟﾛﾍﾟﾗｼﾔﾌﾄｶﾞｰﾄﾞ (0406- )) |
| 90179-08233 | NUT | Frame ([06.2004 - ] ﾌﾟﾛﾍﾟﾗｼﾔﾌﾄｶﾞｰﾄﾞ (0406- )) |
