Search › Model › XZU324

XZU324

Toyota DYNA-TOYOACE · 2006 · 3,016 parts · 184 categories
XZU324 ×

← Back to categories

3,016 items

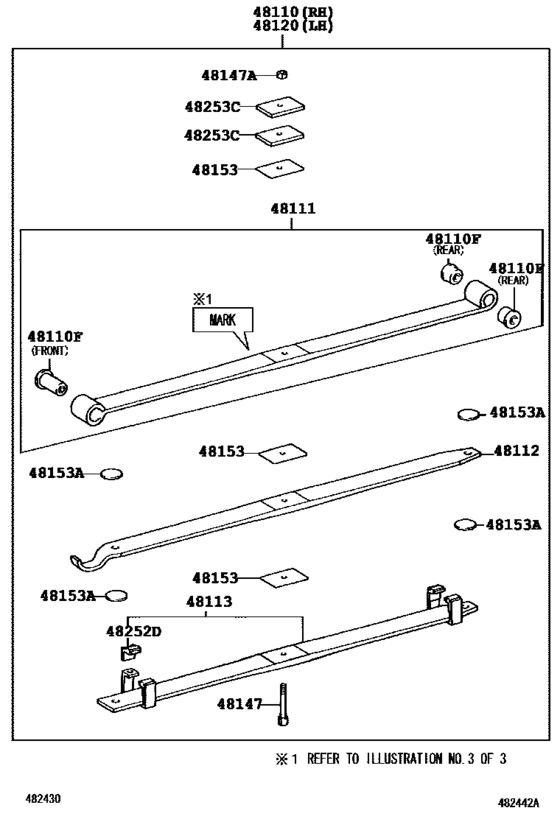

Front Spring & Shock Absorber ([10.2006 - ] 3-LEAF (0610- )DM7,T5..30T) 27
#OEMPart name
48110 48110-3V371 Spring Assy, Front, Rh
48110 48110-3V372 Spring Assy, Front, Rh
48110 90389-16025 Bush, Front Spring No.2 Shackle
48110 90389-16026 Bush, Front Spring No.2 Shackle
48111 48101-3V371 Leaf, Front Spring, No.1
48111 48101-3V372 Leaf, Front Spring, No.1
48111 48101-3V381 Leaf, Front Spring, No.1
48111 48101-3V382 Leaf, Front Spring, No.1
48112 48112-3V370 Leaf, Front Spring, No.2
48112 48112-3V371 Leaf, Front Spring, No.2
48112 48252-37521 Silencer, Front Spring, No.1
48112 48112-3V380 Leaf, Front Spring, No.2
48112 48112-3V381 Leaf, Front Spring, No.2
48113 48102-3V370 Leaf, Front Spring, No.3
48113 48102-3V371 Leaf, Front Spring, No.3
48113 48102-3V380 Leaf, Front Spring, No.3
48113 48102-3V381 Leaf, Front Spring, No.3
48120 48110-3V381 Spring Assy, Front, Lh
48120 48110-3V382 Spring Assy, Front, Lh
48147 48147-37410 Bolt, Front Spring, Center
48147 48147-37A01 Bolt, Front Spring, Center
48147 48284-37130 Nut, Front Spring Center Bolt
48153 48253-3B440 Spacer, Front Leaf Spring, No.1
48153 48152-37J42 Spacer, Front Leaf Spring, No.1
48153 48252-37670 Silencer, Front Spring, No.1
48252 48252-37380 Silencer, Rear Spring
48253 48253-3B122 Leaf, Front Spring, No.4
