Search › Model › XZU322

XZU322

Toyota DYNA-TOYOACE · 1999 · 4,091 parts · 237 categories

4,091 items

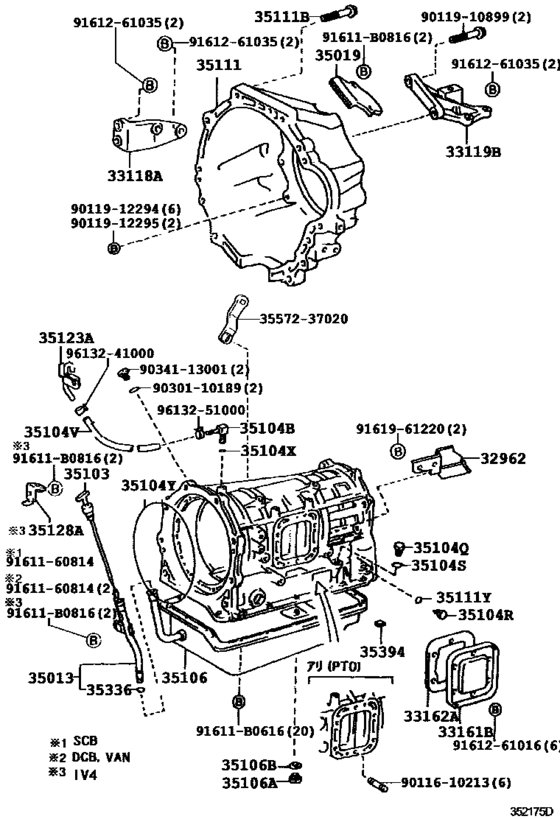

Transmission Case & Oil Pan (Atm) ([05.1999 - 06.2004] A443E (9905-0406)XZU301,302,306,307,312,321,322,331,33 7,341,347,352..4FC) 35

#	OEM	Part name
32962	32962-37010	Insulator, Oil Temperature Switch Heat
33118	33118-37050	Plate, Stiffener, Rh(Atm)
33119	33119-37060	Plate, Stiffener, Lh(Atm)
35013	35013-37030	Tube Sub-Assy, Transmission Oil Filler
35019	35019-37030	Cover Sub-Assy, Transmission Case Dust
35103	35103-37030	Gage Sub-Assy, Transmission Oil Level
35104	90930-03094	Plug, Breather, No.1 (Atm)
35104	90341-13001	Plug, W/head Straight Screw, No.3(For Transaxle Hsg & Case)
35104	90341-08001	Plug, Transaxle Case, No.1
35104	90301-10189	Ring, O(For Oil Cooler Tube Union)
35104	90445-11149	Hose (For Breather Plug)
35104	90301-06005	Ring, O (For Breather Plug)
35104	90301-99067	Ring, O (For Automatic Transmission Case)
35106	35106-37020	Pan Sub-Assy, Automatic Transmission Oil
35106	90341-18057	Drain Plug (with Magnet)
35106	12157-10010	Gasket (For Drain Plug)
35111	35111-37010	Housing, Automatic Transmission
35111	90119-10898	Bolt(For Clutch Housing & Transmission Case Setting)
35111	90301-06196	O Ring, Transaxle Case, No.1
35123	35123-37020	Skirt, Transmission Breather
35336	90301-09011	Ring, O (For Transmission Oil Filler Tube)
35394	35394-30011	Magnet, Oil Cleaner (For Transmission)
91611	91611-B0616	Bolt(For Transaxle Case Receiver)
91611	91611-B0816	Bolt
3557237020	35572-37020	Lever, Transmission Control Shaft
9011610213	90116-10213	Bolt, Stud (For Power Take-Off Case)
9011910899	90119-10899	Bolt (For Transmission Housing & Engine Setting)
9011912294	90119-12294	Bolt (For Transmission Housing & Case Setting)
9011912295	90119-12295	Bolt (For Transmission Housing & Case Setting)
9161160814	91611-60814	Bolt
9161261016	91612-61016	Bolt(For Dust Cover To Steering Knuckle Arm Setting)
9161261035	91612-61035	Bolt(For Hybrid Vehicle Transaxle & Engine Setting)
9161961220	91619-61220	Bolt, Stud
9613241000	96132-41000	Clip, No.1(For Idle-Up Hose)
9613251000	96132-51000	Clip Or Clamp(For Ventilation Hose)

OEM	Part name	Category
12157-10010	Gasket (For Drain Plug)	Transmission Case & Oil Pan (Atm) ([05.1999 - 06.2004] A443E (9905-0406)XZU301,302,306,307,312,321,322,331,33 7,341,347,352..4FC)
32962-37010	Insulator, Oil Temperature Switch Heat	Transmission Case & Oil Pan (Atm) ([05.1999 - 06.2004] A443E (9905-0406)XZU301,302,306,307,312,321,322,331,33 7,341,347,352..4FC)
33118-37050	Plate, Stiffener, Rh(Atm)	Transmission Case & Oil Pan (Atm) ([05.1999 - 06.2004] A443E (9905-0406)XZU301,302,306,307,312,321,322,331,33 7,341,347,352..4FC)
33119-37060	Plate, Stiffener, Lh(Atm)	Transmission Case & Oil Pan (Atm) ([05.1999 - 06.2004] A443E (9905-0406)XZU301,302,306,307,312,321,322,331,33 7,341,347,352..4FC)
35013-37030	Tube Sub-Assy, Transmission Oil Filler	Transmission Case & Oil Pan (Atm) ([05.1999 - 06.2004] A443E (9905-0406)XZU301,302,306,307,312,321,322,331,33 7,341,347,352..4FC)
35019-37030	Cover Sub-Assy, Transmission Case Dust	Transmission Case & Oil Pan (Atm) ([05.1999 - 06.2004] A443E (9905-0406)XZU301,302,306,307,312,321,322,331,33 7,341,347,352..4FC)
35103-37030	Gage Sub-Assy, Transmission Oil Level	Transmission Case & Oil Pan (Atm) ([05.1999 - 06.2004] A443E (9905-0406)XZU301,302,306,307,312,321,322,331,33 7,341,347,352..4FC)
35106-37020	Pan Sub-Assy, Automatic Transmission Oil	Transmission Case & Oil Pan (Atm) ([05.1999 - 06.2004] A443E (9905-0406)XZU301,302,306,307,312,321,322,331,33 7,341,347,352..4FC)
35111-37010	Housing, Automatic Transmission	Transmission Case & Oil Pan (Atm) ([05.1999 - 06.2004] A443E (9905-0406)XZU301,302,306,307,312,321,322,331,33 7,341,347,352..4FC)
35123-37020	Skirt, Transmission Breather	Transmission Case & Oil Pan (Atm) ([05.1999 - 06.2004] A443E (9905-0406)XZU301,302,306,307,312,321,322,331,33 7,341,347,352..4FC)
35394-30011	Magnet, Oil Cleaner (For Transmission)	Transmission Case & Oil Pan (Atm) ([05.1999 - 06.2004] A443E (9905-0406)XZU301,302,306,307,312,321,322,331,33 7,341,347,352..4FC)
35572-37020	Lever, Transmission Control Shaft	Transmission Case & Oil Pan (Atm) ([05.1999 - 06.2004] A443E (9905-0406)XZU301,302,306,307,312,321,322,331,33 7,341,347,352..4FC)
90116-10213	Bolt, Stud (For Power Take-Off Case)	Transmission Case & Oil Pan (Atm) ([05.1999 - 06.2004] A443E (9905-0406)XZU301,302,306,307,312,321,322,331,33 7,341,347,352..4FC)
90119-10898	Bolt(For Clutch Housing & Transmission Case Setting)	Transmission Case & Oil Pan (Atm) ([05.1999 - 06.2004] A443E (9905-0406)XZU301,302,306,307,312,321,322,331,33 7,341,347,352..4FC)
90119-10899	Bolt (For Transmission Housing & Engine Setting)	Transmission Case & Oil Pan (Atm) ([05.1999 - 06.2004] A443E (9905-0406)XZU301,302,306,307,312,321,322,331,33 7,341,347,352..4FC)
90119-12294	Bolt (For Transmission Housing & Case Setting)	Transmission Case & Oil Pan (Atm) ([05.1999 - 06.2004] A443E (9905-0406)XZU301,302,306,307,312,321,322,331,33 7,341,347,352..4FC)
90119-12295	Bolt (For Transmission Housing & Case Setting)	Transmission Case & Oil Pan (Atm) ([05.1999 - 06.2004] A443E (9905-0406)XZU301,302,306,307,312,321,322,331,33 7,341,347,352..4FC)
90301-06005	Ring, O (For Breather Plug)	Transmission Case & Oil Pan (Atm) ([05.1999 - 06.2004] A443E (9905-0406)XZU301,302,306,307,312,321,322,331,33 7,341,347,352..4FC)
90301-06196	O Ring, Transaxle Case, No.1	Transmission Case & Oil Pan (Atm) ([05.1999 - 06.2004] A443E (9905-0406)XZU301,302,306,307,312,321,322,331,33 7,341,347,352..4FC)
90301-09011	Ring, O (For Transmission Oil Filler Tube)	Transmission Case & Oil Pan (Atm) ([05.1999 - 06.2004] A443E (9905-0406)XZU301,302,306,307,312,321,322,331,33 7,341,347,352..4FC)
90301-10189	Ring, O(For Oil Cooler Tube Union)	Transmission Case & Oil Pan (Atm) ([05.1999 - 06.2004] A443E (9905-0406)XZU301,302,306,307,312,321,322,331,33 7,341,347,352..4FC)
90301-99067	Ring, O (For Automatic Transmission Case)	Transmission Case & Oil Pan (Atm) ([05.1999 - 06.2004] A443E (9905-0406)XZU301,302,306,307,312,321,322,331,33 7,341,347,352..4FC)
90341-08001	Plug, Transaxle Case, No.1	Transmission Case & Oil Pan (Atm) ([05.1999 - 06.2004] A443E (9905-0406)XZU301,302,306,307,312,321,322,331,33 7,341,347,352..4FC)
90341-13001	Plug, W/head Straight Screw, No.3(For Transaxle Hsg & Case)	Transmission Case & Oil Pan (Atm) ([05.1999 - 06.2004] A443E (9905-0406)XZU301,302,306,307,312,321,322,331,33 7,341,347,352..4FC)
90341-18057	Drain Plug (with Magnet)	Transmission Case & Oil Pan (Atm) ([05.1999 - 06.2004] A443E (9905-0406)XZU301,302,306,307,312,321,322,331,33 7,341,347,352..4FC)
90445-11149	Hose (For Breather Plug)	Transmission Case & Oil Pan (Atm) ([05.1999 - 06.2004] A443E (9905-0406)XZU301,302,306,307,312,321,322,331,33 7,341,347,352..4FC)
90930-03094	Plug, Breather, No.1 (Atm)	Transmission Case & Oil Pan (Atm) ([05.1999 - 06.2004] A443E (9905-0406)XZU301,302,306,307,312,321,322,331,33 7,341,347,352..4FC)
91611-60814	Bolt	Transmission Case & Oil Pan (Atm) ([05.1999 - 06.2004] A443E (9905-0406)XZU301,302,306,307,312,321,322,331,33 7,341,347,352..4FC)
91611-B0616	Bolt(For Transaxle Case Receiver)	Transmission Case & Oil Pan (Atm) ([05.1999 - 06.2004] A443E (9905-0406)XZU301,302,306,307,312,321,322,331,33 7,341,347,352..4FC)
91611-B0816	Bolt	Transmission Case & Oil Pan (Atm) ([05.1999 - 06.2004] A443E (9905-0406)XZU301,302,306,307,312,321,322,331,33 7,341,347,352..4FC)
91612-61016	Bolt(For Dust Cover To Steering Knuckle Arm Setting)	Transmission Case & Oil Pan (Atm) ([05.1999 - 06.2004] A443E (9905-0406)XZU301,302,306,307,312,321,322,331,33 7,341,347,352..4FC)
91612-61035	Bolt(For Hybrid Vehicle Transaxle & Engine Setting)	Transmission Case & Oil Pan (Atm) ([05.1999 - 06.2004] A443E (9905-0406)XZU301,302,306,307,312,321,322,331,33 7,341,347,352..4FC)
91619-61220	Bolt, Stud	Transmission Case & Oil Pan (Atm) ([05.1999 - 06.2004] A443E (9905-0406)XZU301,302,306,307,312,321,322,331,33 7,341,347,352..4FC)
96132-41000	Clip, No.1(For Idle-Up Hose)	Transmission Case & Oil Pan (Atm) ([05.1999 - 06.2004] A443E (9905-0406)XZU301,302,306,307,312,321,322,331,33 7,341,347,352..4FC)
96132-51000	Clip Or Clamp(For Ventilation Hose)	Transmission Case & Oil Pan (Atm) ([05.1999 - 06.2004] A443E (9905-0406)XZU301,302,306,307,312,321,322,331,33 7,341,347,352..4FC)

Source: Public OEM parts-catalog data
Variants: 1 / 14
Category: 237
Collected: 2026-08-03
