Search › Model › XZU321

XZU321

Toyota DYNA-TOYOACE · 1999 · 4,368 parts · 279 categories

4,368 items

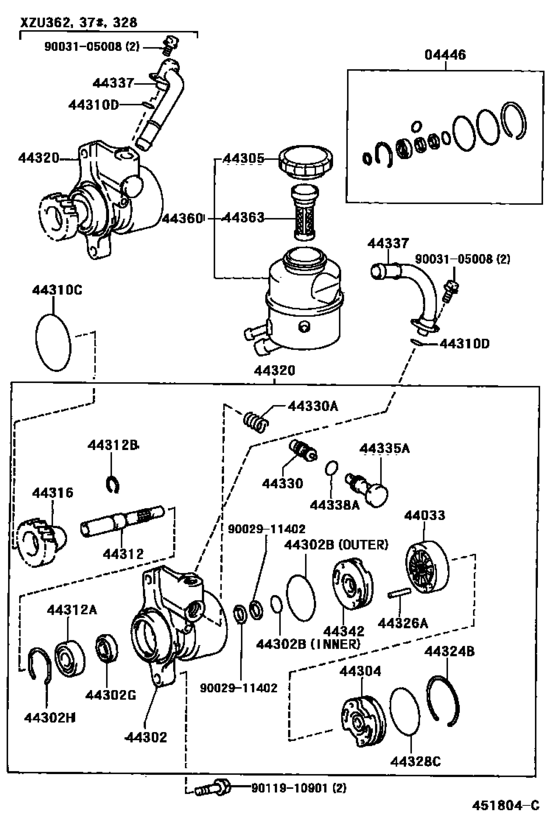

Vane Pump & Reservoir (Power Steering) ([05.1999 - 06.2004] (9905-0406)XZU341 ; (9905-0406)XZU300,301,302,30 6,307,31#,32#,33#,340,342,346,347,3 5#,362,37#,382..D SL,DSLL) 39

#	OEM	Part name
4446	04446-37010	Gasket Kit, Power Steering Pump
44033	44033-60010	Rotor Sub-Assy, W/cam & Vane
44033	44033-EV010	Rotor Sub-Assy, W/cam & Vane
44302	44302-37060	Housing Sub-Assy, Vane Pump, Front
44302	44302-EV040	Housing Sub-Assy, Vane Pump, Front
44302	90029-20056	Ring, O, No.1(For Vane Pump Housing)
44302	90029-20057	Ring, O, No.1(For Vane Pump Housing)
44302	90029-21018	Seal, Oil, No.2(For Vane Pump Housing)
44302	90029-52010	Ring, Snap, No.1(For Vane Pump Housing)
44304	44304-37060	Housing Sub-Assy, Vane Pump, Rear
44305	44305-12030	Cap Sub-Assy, Vane Pump Oil Reservoir
44305	44305-12040	Cap Sub-Assy, Vane Pump Oil Reservoir
44310	90301-60002	Ring, O(For Vane Pump)
44310	90301-15019	Ring, O(For Vane Pump Union)
44312	44312-60030	Shaft, Vane Pump
44312	90029-36010	Bearing(For Vane Pump Shaft)
44312	90029-52402	Ring, Shaft Spring(For Hyd Motor Vane Pump Drive Shaft)
44316	44316-37010	Gear, Vane Pump
44320	44310-37060	Pump Assy, Vane
44320	44310-37062	Pump Assy, Vane
44324	90029-52012	Ring, Hole Snap(For Pump Housing Rear)
44326	90029-14205	Pin, Straight(For Vane Pump Cam Ring)
44328	90029-20058	Ring, O(For Pump Housing End)
44330	40410-37060	Valve Assy, Flow Control
44330	40420-37060	Valve Assy, Flow Control
44330	40430-37060	Valve Assy, Flow Control
44330	44330-37060	Valve Assy, Flow Control
44330	90029-60013	Spring, Compression(For Flow Control Valve)
44335	44335-37010	Orifice, Flow Control Valve
44337	44337-37080	Union, Power Steering Suction Port
44337	44337-37270	Union, Power Steering Suction Port
44338	96711-19016	Ring, O (For 5Th Shift Arm Shaft)
44342	44342-37060	Plate, Vane Pump Side, Rear
44342	44342-37061	Plate, Vane Pump Side, Rear
44360	44360-37130	Reservoir Assy, Vane Pump Oil
44363	44363-37130	Strainer, Oil(For Vane Pump)
9002911402	90029-11402	New Genuine Part
9003105008	90031-05008	Bolt(for Turbocharger Stay)
9011910901	90119-10901	New Genuine Part

OEM	Part name	Category
04446-37010	Gasket Kit, Power Steering Pump	Vane Pump & Reservoir (Power Steering) ([05.1999 - 06.2004] (9905-0406)XZU341 ; (9905-0406)XZU300,301,302,30 6,307,31#,32#,33#,340,342,346,347,3 5#,362,37#,382..D SL,DSLL)
40410-37060	Valve Assy, Flow Control	Vane Pump & Reservoir (Power Steering) ([05.1999 - 06.2004] (9905-0406)XZU341 ; (9905-0406)XZU300,301,302,30 6,307,31#,32#,33#,340,342,346,347,3 5#,362,37#,382..D SL,DSLL)
40420-37060	Valve Assy, Flow Control	Vane Pump & Reservoir (Power Steering) ([05.1999 - 06.2004] (9905-0406)XZU341 ; (9905-0406)XZU300,301,302,30 6,307,31#,32#,33#,340,342,346,347,3 5#,362,37#,382..D SL,DSLL)
40430-37060	Valve Assy, Flow Control	Vane Pump & Reservoir (Power Steering) ([05.1999 - 06.2004] (9905-0406)XZU341 ; (9905-0406)XZU300,301,302,30 6,307,31#,32#,33#,340,342,346,347,3 5#,362,37#,382..D SL,DSLL)
44033-60010	Rotor Sub-Assy, W/cam & Vane	Vane Pump & Reservoir (Power Steering) ([05.1999 - 06.2004] (9905-0406)XZU341 ; (9905-0406)XZU300,301,302,30 6,307,31#,32#,33#,340,342,346,347,3 5#,362,37#,382..D SL,DSLL)
44033-EV010	Rotor Sub-Assy, W/cam & Vane	Vane Pump & Reservoir (Power Steering) ([05.1999 - 06.2004] (9905-0406)XZU341 ; (9905-0406)XZU300,301,302,30 6,307,31#,32#,33#,340,342,346,347,3 5#,362,37#,382..D SL,DSLL)
44302-37060	Housing Sub-Assy, Vane Pump, Front	Vane Pump & Reservoir (Power Steering) ([05.1999 - 06.2004] (9905-0406)XZU341 ; (9905-0406)XZU300,301,302,30 6,307,31#,32#,33#,340,342,346,347,3 5#,362,37#,382..D SL,DSLL)
44302-EV040	Housing Sub-Assy, Vane Pump, Front	Vane Pump & Reservoir (Power Steering) ([05.1999 - 06.2004] (9905-0406)XZU341 ; (9905-0406)XZU300,301,302,30 6,307,31#,32#,33#,340,342,346,347,3 5#,362,37#,382..D SL,DSLL)
44304-37060	Housing Sub-Assy, Vane Pump, Rear	Vane Pump & Reservoir (Power Steering) ([05.1999 - 06.2004] (9905-0406)XZU341 ; (9905-0406)XZU300,301,302,30 6,307,31#,32#,33#,340,342,346,347,3 5#,362,37#,382..D SL,DSLL)
44305-12030	Cap Sub-Assy, Vane Pump Oil Reservoir	Vane Pump & Reservoir (Power Steering) ([05.1999 - 06.2004] (9905-0406)XZU341 ; (9905-0406)XZU300,301,302,30 6,307,31#,32#,33#,340,342,346,347,3 5#,362,37#,382..D SL,DSLL)
44305-12040	Cap Sub-Assy, Vane Pump Oil Reservoir	Vane Pump & Reservoir (Power Steering) ([05.1999 - 06.2004] (9905-0406)XZU341 ; (9905-0406)XZU300,301,302,30 6,307,31#,32#,33#,340,342,346,347,3 5#,362,37#,382..D SL,DSLL)
44310-37060	Pump Assy, Vane	Vane Pump & Reservoir (Power Steering) ([05.1999 - 06.2004] (9905-0406)XZU341 ; (9905-0406)XZU300,301,302,30 6,307,31#,32#,33#,340,342,346,347,3 5#,362,37#,382..D SL,DSLL)
44310-37062	Pump Assy, Vane	Vane Pump & Reservoir (Power Steering) ([05.1999 - 06.2004] (9905-0406)XZU341 ; (9905-0406)XZU300,301,302,30 6,307,31#,32#,33#,340,342,346,347,3 5#,362,37#,382..D SL,DSLL)
44312-60030	Shaft, Vane Pump	Vane Pump & Reservoir (Power Steering) ([05.1999 - 06.2004] (9905-0406)XZU341 ; (9905-0406)XZU300,301,302,30 6,307,31#,32#,33#,340,342,346,347,3 5#,362,37#,382..D SL,DSLL)
44316-37010	Gear, Vane Pump	Vane Pump & Reservoir (Power Steering) ([05.1999 - 06.2004] (9905-0406)XZU341 ; (9905-0406)XZU300,301,302,30 6,307,31#,32#,33#,340,342,346,347,3 5#,362,37#,382..D SL,DSLL)
44330-37060	Valve Assy, Flow Control	Vane Pump & Reservoir (Power Steering) ([05.1999 - 06.2004] (9905-0406)XZU341 ; (9905-0406)XZU300,301,302,30 6,307,31#,32#,33#,340,342,346,347,3 5#,362,37#,382..D SL,DSLL)
44335-37010	Orifice, Flow Control Valve	Vane Pump & Reservoir (Power Steering) ([05.1999 - 06.2004] (9905-0406)XZU341 ; (9905-0406)XZU300,301,302,30 6,307,31#,32#,33#,340,342,346,347,3 5#,362,37#,382..D SL,DSLL)
44337-37080	Union, Power Steering Suction Port	Vane Pump & Reservoir (Power Steering) ([05.1999 - 06.2004] (9905-0406)XZU341 ; (9905-0406)XZU300,301,302,30 6,307,31#,32#,33#,340,342,346,347,3 5#,362,37#,382..D SL,DSLL)
44337-37270	Union, Power Steering Suction Port	Vane Pump & Reservoir (Power Steering) ([05.1999 - 06.2004] (9905-0406)XZU341 ; (9905-0406)XZU300,301,302,30 6,307,31#,32#,33#,340,342,346,347,3 5#,362,37#,382..D SL,DSLL)
44342-37060	Plate, Vane Pump Side, Rear	Vane Pump & Reservoir (Power Steering) ([05.1999 - 06.2004] (9905-0406)XZU341 ; (9905-0406)XZU300,301,302,30 6,307,31#,32#,33#,340,342,346,347,3 5#,362,37#,382..D SL,DSLL)
44342-37061	Plate, Vane Pump Side, Rear	Vane Pump & Reservoir (Power Steering) ([05.1999 - 06.2004] (9905-0406)XZU341 ; (9905-0406)XZU300,301,302,30 6,307,31#,32#,33#,340,342,346,347,3 5#,362,37#,382..D SL,DSLL)
44360-37130	Reservoir Assy, Vane Pump Oil	Vane Pump & Reservoir (Power Steering) ([05.1999 - 06.2004] (9905-0406)XZU341 ; (9905-0406)XZU300,301,302,30 6,307,31#,32#,33#,340,342,346,347,3 5#,362,37#,382..D SL,DSLL)
44363-37130	Strainer, Oil(For Vane Pump)	Vane Pump & Reservoir (Power Steering) ([05.1999 - 06.2004] (9905-0406)XZU341 ; (9905-0406)XZU300,301,302,30 6,307,31#,32#,33#,340,342,346,347,3 5#,362,37#,382..D SL,DSLL)
90029-11402	New Genuine Part	Vane Pump & Reservoir (Power Steering) ([05.1999 - 06.2004] (9905-0406)XZU341 ; (9905-0406)XZU300,301,302,30 6,307,31#,32#,33#,340,342,346,347,3 5#,362,37#,382..D SL,DSLL)
90029-14205	Pin, Straight(For Vane Pump Cam Ring)	Vane Pump & Reservoir (Power Steering) ([05.1999 - 06.2004] (9905-0406)XZU341 ; (9905-0406)XZU300,301,302,30 6,307,31#,32#,33#,340,342,346,347,3 5#,362,37#,382..D SL,DSLL)
90029-20056	Ring, O, No.1(For Vane Pump Housing)	Vane Pump & Reservoir (Power Steering) ([05.1999 - 06.2004] (9905-0406)XZU341 ; (9905-0406)XZU300,301,302,30 6,307,31#,32#,33#,340,342,346,347,3 5#,362,37#,382..D SL,DSLL)
90029-20057	Ring, O, No.1(For Vane Pump Housing)	Vane Pump & Reservoir (Power Steering) ([05.1999 - 06.2004] (9905-0406)XZU341 ; (9905-0406)XZU300,301,302,30 6,307,31#,32#,33#,340,342,346,347,3 5#,362,37#,382..D SL,DSLL)
90029-20058	Ring, O(For Pump Housing End)	Vane Pump & Reservoir (Power Steering) ([05.1999 - 06.2004] (9905-0406)XZU341 ; (9905-0406)XZU300,301,302,30 6,307,31#,32#,33#,340,342,346,347,3 5#,362,37#,382..D SL,DSLL)
90029-21018	Seal, Oil, No.2(For Vane Pump Housing)	Vane Pump & Reservoir (Power Steering) ([05.1999 - 06.2004] (9905-0406)XZU341 ; (9905-0406)XZU300,301,302,30 6,307,31#,32#,33#,340,342,346,347,3 5#,362,37#,382..D SL,DSLL)
90029-36010	Bearing(For Vane Pump Shaft)	Vane Pump & Reservoir (Power Steering) ([05.1999 - 06.2004] (9905-0406)XZU341 ; (9905-0406)XZU300,301,302,30 6,307,31#,32#,33#,340,342,346,347,3 5#,362,37#,382..D SL,DSLL)
90029-52010	Ring, Snap, No.1(For Vane Pump Housing)	Vane Pump & Reservoir (Power Steering) ([05.1999 - 06.2004] (9905-0406)XZU341 ; (9905-0406)XZU300,301,302,30 6,307,31#,32#,33#,340,342,346,347,3 5#,362,37#,382..D SL,DSLL)
90029-52012	Ring, Hole Snap(For Pump Housing Rear)	Vane Pump & Reservoir (Power Steering) ([05.1999 - 06.2004] (9905-0406)XZU341 ; (9905-0406)XZU300,301,302,30 6,307,31#,32#,33#,340,342,346,347,3 5#,362,37#,382..D SL,DSLL)
90029-52402	Ring, Shaft Spring(For Hyd Motor Vane Pump Drive Shaft)	Vane Pump & Reservoir (Power Steering) ([05.1999 - 06.2004] (9905-0406)XZU341 ; (9905-0406)XZU300,301,302,30 6,307,31#,32#,33#,340,342,346,347,3 5#,362,37#,382..D SL,DSLL)
90029-60013	Spring, Compression(For Flow Control Valve)	Vane Pump & Reservoir (Power Steering) ([05.1999 - 06.2004] (9905-0406)XZU341 ; (9905-0406)XZU300,301,302,30 6,307,31#,32#,33#,340,342,346,347,3 5#,362,37#,382..D SL,DSLL)
90031-05008	Bolt(for Turbocharger Stay)	Vane Pump & Reservoir (Power Steering) ([05.1999 - 06.2004] (9905-0406)XZU341 ; (9905-0406)XZU300,301,302,30 6,307,31#,32#,33#,340,342,346,347,3 5#,362,37#,382..D SL,DSLL)
90119-10901	New Genuine Part	Vane Pump & Reservoir (Power Steering) ([05.1999 - 06.2004] (9905-0406)XZU341 ; (9905-0406)XZU300,301,302,30 6,307,31#,32#,33#,340,342,346,347,3 5#,362,37#,382..D SL,DSLL)
90301-15019	Ring, O(For Vane Pump Union)	Vane Pump & Reservoir (Power Steering) ([05.1999 - 06.2004] (9905-0406)XZU341 ; (9905-0406)XZU300,301,302,30 6,307,31#,32#,33#,340,342,346,347,3 5#,362,37#,382..D SL,DSLL)
90301-60002	Ring, O(For Vane Pump)	Vane Pump & Reservoir (Power Steering) ([05.1999 - 06.2004] (9905-0406)XZU341 ; (9905-0406)XZU300,301,302,30 6,307,31#,32#,33#,340,342,346,347,3 5#,362,37#,382..D SL,DSLL)
96711-19016	Ring, O (For 5Th Shift Arm Shaft)	Vane Pump & Reservoir (Power Steering) ([05.1999 - 06.2004] (9905-0406)XZU341 ; (9905-0406)XZU300,301,302,30 6,307,31#,32#,33#,340,342,346,347,3 5#,362,37#,382..D SL,DSLL)
