Search › Model › XZU321

XZU321

Toyota DYNA-TOYOACE · 1999 · 4,368 parts · 279 categories

4,368 items

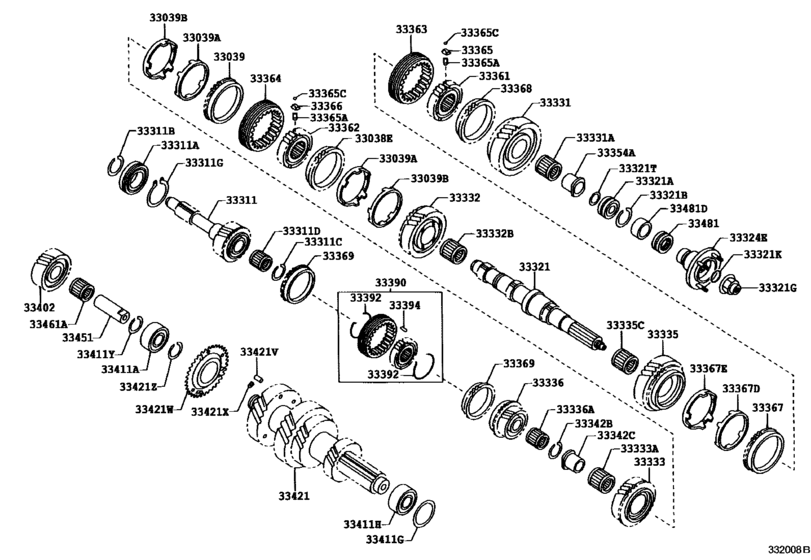

Transmission Gear (Mtm) ([06.2002 - 06.2004] MYY5A (0206-0406)XZU32#,350..5F ; (0206-0406)XZU302..5 F..20T..1NO ; (0206-0406)XZU301,330 ..T3,T5..20T,40T) 37

#	OEM	Part name
33038	33037-37021	Ring Set, Synchronizer, No.1
33039	33038-37011	Ring Set, Synchronizer, No.2
33311	33301-37150	Shaft, Input
33311	90363-50007	Bearing (For Input Shaft Front)
33311	90363-50012	BEARING RADIAL BALL
33311	90520-99010	Ring, Shaft Snap (For Front Bearing)
33311	96151-04500	Ring, Hole Snap (For Needle Roller)
33311	90361-09002	Bearing, Input Shaft
33321	33321-37060	Shaft, Output
33321	90363-38007	Bearing (For Output Shaft Rear)
33321	90179-24008	Nut (For Manual Transmission Output Shaft Rear Set)
33321	90301-31003	Ring, O(For Manual Transmisson Output Shaft Rear Set Nut)
33331	33331-37050	Gear, Reverse
33331	90364-47008	Bearing (For Reverse Gear)
33332	33033-37030	Gear, 2Nd
33332	90364-50003	Bearing, Needle Roller (For 2Nd Gear)
33333	33034-37030	Gear, 3Rd
33333	90364-58007	Bearing, Needle Roller (For 3Rd Gear)
33335	33335-37080	Gear, 1St
33335	90364-44004	Bearing (For Reverse Gear)
33336	33036-37040	Gear, 5Th
33336	90364-38020	Bearing, Needle Roller (For 5Th Gear)
33354	33354-37010	Washer, Reverse Gear Thrust
33361	33361-37030	Hub, Transmission Clutch, No.1
33362	33361-37040	Hub, Transmission Clutch, No.1
33363	33363-37040	Sleeve, Transmission Hub, No.1
33364	33364-37030	Sleeve, Transmission Hub, No.2
33364	33364-37031	Sleeve, Transmission Hub, No.2
33365	33365-37030	Key, Synchromesh Shifting, No.1
33366	33365-60010	Key, Synchromesh Shifting, No.1
33368	33368-60022	Ring, Synchronizer, No.2
33392	33371-60010	Spring, Synchromesh Shifting Key, No.1
33411	90365-30030	Bearing Or Roller(For Counter Gear Front)
33421	33421-37070	Gear, Counter
33451	33451-37020	Shaft, Reverse Idler Gear
33481	33481-36160	Gear, Speedometer Drive (Mtm)
33481	33487-37020	Spacer (For Speedometer Drive Gear)

OEM	Part name	Category
33033-37030	Gear, 2Nd	Transmission Gear (Mtm) ([06.2002 - 06.2004] MYY5A (0206-0406)XZU32#,350..5F ; (0206-0406)XZU302..5 F..20T..1NO ; (0206-0406)XZU301,330 ..T3,T5..20T,40T)
33034-37030	Gear, 3Rd	Transmission Gear (Mtm) ([06.2002 - 06.2004] MYY5A (0206-0406)XZU32#,350..5F ; (0206-0406)XZU302..5 F..20T..1NO ; (0206-0406)XZU301,330 ..T3,T5..20T,40T)
33036-37040	Gear, 5Th	Transmission Gear (Mtm) ([06.2002 - 06.2004] MYY5A (0206-0406)XZU32#,350..5F ; (0206-0406)XZU302..5 F..20T..1NO ; (0206-0406)XZU301,330 ..T3,T5..20T,40T)
33037-37021	Ring Set, Synchronizer, No.1	Transmission Gear (Mtm) ([06.2002 - 06.2004] MYY5A (0206-0406)XZU32#,350..5F ; (0206-0406)XZU302..5 F..20T..1NO ; (0206-0406)XZU301,330 ..T3,T5..20T,40T)
33038-37011	Ring Set, Synchronizer, No.2	Transmission Gear (Mtm) ([06.2002 - 06.2004] MYY5A (0206-0406)XZU32#,350..5F ; (0206-0406)XZU302..5 F..20T..1NO ; (0206-0406)XZU301,330 ..T3,T5..20T,40T)
33301-37150	Shaft, Input	Transmission Gear (Mtm) ([06.2002 - 06.2004] MYY5A (0206-0406)XZU32#,350..5F ; (0206-0406)XZU302..5 F..20T..1NO ; (0206-0406)XZU301,330 ..T3,T5..20T,40T)
33321-37060	Shaft, Output	Transmission Gear (Mtm) ([06.2002 - 06.2004] MYY5A (0206-0406)XZU32#,350..5F ; (0206-0406)XZU302..5 F..20T..1NO ; (0206-0406)XZU301,330 ..T3,T5..20T,40T)
33331-37050	Gear, Reverse	Transmission Gear (Mtm) ([06.2002 - 06.2004] MYY5A (0206-0406)XZU32#,350..5F ; (0206-0406)XZU302..5 F..20T..1NO ; (0206-0406)XZU301,330 ..T3,T5..20T,40T)
33335-37080	Gear, 1St	Transmission Gear (Mtm) ([06.2002 - 06.2004] MYY5A (0206-0406)XZU32#,350..5F ; (0206-0406)XZU302..5 F..20T..1NO ; (0206-0406)XZU301,330 ..T3,T5..20T,40T)
33354-37010	Washer, Reverse Gear Thrust	Transmission Gear (Mtm) ([06.2002 - 06.2004] MYY5A (0206-0406)XZU32#,350..5F ; (0206-0406)XZU302..5 F..20T..1NO ; (0206-0406)XZU301,330 ..T3,T5..20T,40T)
33361-37030	Hub, Transmission Clutch, No.1	Transmission Gear (Mtm) ([06.2002 - 06.2004] MYY5A (0206-0406)XZU32#,350..5F ; (0206-0406)XZU302..5 F..20T..1NO ; (0206-0406)XZU301,330 ..T3,T5..20T,40T)
33361-37040	Hub, Transmission Clutch, No.1	Transmission Gear (Mtm) ([06.2002 - 06.2004] MYY5A (0206-0406)XZU32#,350..5F ; (0206-0406)XZU302..5 F..20T..1NO ; (0206-0406)XZU301,330 ..T3,T5..20T,40T)
33363-37040	Sleeve, Transmission Hub, No.1	Transmission Gear (Mtm) ([06.2002 - 06.2004] MYY5A (0206-0406)XZU32#,350..5F ; (0206-0406)XZU302..5 F..20T..1NO ; (0206-0406)XZU301,330 ..T3,T5..20T,40T)
33364-37030	Sleeve, Transmission Hub, No.2	Transmission Gear (Mtm) ([06.2002 - 06.2004] MYY5A (0206-0406)XZU32#,350..5F ; (0206-0406)XZU302..5 F..20T..1NO ; (0206-0406)XZU301,330 ..T3,T5..20T,40T)
33364-37031	Sleeve, Transmission Hub, No.2	Transmission Gear (Mtm) ([06.2002 - 06.2004] MYY5A (0206-0406)XZU32#,350..5F ; (0206-0406)XZU302..5 F..20T..1NO ; (0206-0406)XZU301,330 ..T3,T5..20T,40T)
33365-37030	Key, Synchromesh Shifting, No.1	Transmission Gear (Mtm) ([06.2002 - 06.2004] MYY5A (0206-0406)XZU32#,350..5F ; (0206-0406)XZU302..5 F..20T..1NO ; (0206-0406)XZU301,330 ..T3,T5..20T,40T)
33365-60010	Key, Synchromesh Shifting, No.1	Transmission Gear (Mtm) ([06.2002 - 06.2004] MYY5A (0206-0406)XZU32#,350..5F ; (0206-0406)XZU302..5 F..20T..1NO ; (0206-0406)XZU301,330 ..T3,T5..20T,40T)
33368-60022	Ring, Synchronizer, No.2	Transmission Gear (Mtm) ([06.2002 - 06.2004] MYY5A (0206-0406)XZU32#,350..5F ; (0206-0406)XZU302..5 F..20T..1NO ; (0206-0406)XZU301,330 ..T3,T5..20T,40T)
33371-60010	Spring, Synchromesh Shifting Key, No.1	Transmission Gear (Mtm) ([06.2002 - 06.2004] MYY5A (0206-0406)XZU32#,350..5F ; (0206-0406)XZU302..5 F..20T..1NO ; (0206-0406)XZU301,330 ..T3,T5..20T,40T)
33421-37070	Gear, Counter	Transmission Gear (Mtm) ([06.2002 - 06.2004] MYY5A (0206-0406)XZU32#,350..5F ; (0206-0406)XZU302..5 F..20T..1NO ; (0206-0406)XZU301,330 ..T3,T5..20T,40T)
33451-37020	Shaft, Reverse Idler Gear	Transmission Gear (Mtm) ([06.2002 - 06.2004] MYY5A (0206-0406)XZU32#,350..5F ; (0206-0406)XZU302..5 F..20T..1NO ; (0206-0406)XZU301,330 ..T3,T5..20T,40T)
33481-36160	Gear, Speedometer Drive (Mtm)	Transmission Gear (Mtm) ([06.2002 - 06.2004] MYY5A (0206-0406)XZU32#,350..5F ; (0206-0406)XZU302..5 F..20T..1NO ; (0206-0406)XZU301,330 ..T3,T5..20T,40T)
33487-37020	Spacer (For Speedometer Drive Gear)	Transmission Gear (Mtm) ([06.2002 - 06.2004] MYY5A (0206-0406)XZU32#,350..5F ; (0206-0406)XZU302..5 F..20T..1NO ; (0206-0406)XZU301,330 ..T3,T5..20T,40T)
90179-24008	Nut (For Manual Transmission Output Shaft Rear Set)	Transmission Gear (Mtm) ([06.2002 - 06.2004] MYY5A (0206-0406)XZU32#,350..5F ; (0206-0406)XZU302..5 F..20T..1NO ; (0206-0406)XZU301,330 ..T3,T5..20T,40T)
90301-31003	Ring, O(For Manual Transmisson Output Shaft Rear Set Nut)	Transmission Gear (Mtm) ([06.2002 - 06.2004] MYY5A (0206-0406)XZU32#,350..5F ; (0206-0406)XZU302..5 F..20T..1NO ; (0206-0406)XZU301,330 ..T3,T5..20T,40T)
90361-09002	Bearing, Input Shaft	Transmission Gear (Mtm) ([06.2002 - 06.2004] MYY5A (0206-0406)XZU32#,350..5F ; (0206-0406)XZU302..5 F..20T..1NO ; (0206-0406)XZU301,330 ..T3,T5..20T,40T)
90363-38007	Bearing (For Output Shaft Rear)	Transmission Gear (Mtm) ([06.2002 - 06.2004] MYY5A (0206-0406)XZU32#,350..5F ; (0206-0406)XZU302..5 F..20T..1NO ; (0206-0406)XZU301,330 ..T3,T5..20T,40T)
90363-50007	Bearing (For Input Shaft Front)	Transmission Gear (Mtm) ([06.2002 - 06.2004] MYY5A (0206-0406)XZU32#,350..5F ; (0206-0406)XZU302..5 F..20T..1NO ; (0206-0406)XZU301,330 ..T3,T5..20T,40T)
90363-50012	BEARING RADIAL BALL	Transmission Gear (Mtm) ([06.2002 - 06.2004] MYY5A (0206-0406)XZU32#,350..5F ; (0206-0406)XZU302..5 F..20T..1NO ; (0206-0406)XZU301,330 ..T3,T5..20T,40T)
90364-38020	Bearing, Needle Roller (For 5Th Gear)	Transmission Gear (Mtm) ([06.2002 - 06.2004] MYY5A (0206-0406)XZU32#,350..5F ; (0206-0406)XZU302..5 F..20T..1NO ; (0206-0406)XZU301,330 ..T3,T5..20T,40T)
90364-44004	Bearing (For Reverse Gear)	Transmission Gear (Mtm) ([06.2002 - 06.2004] MYY5A (0206-0406)XZU32#,350..5F ; (0206-0406)XZU302..5 F..20T..1NO ; (0206-0406)XZU301,330 ..T3,T5..20T,40T)
90364-47008	Bearing (For Reverse Gear)	Transmission Gear (Mtm) ([06.2002 - 06.2004] MYY5A (0206-0406)XZU32#,350..5F ; (0206-0406)XZU302..5 F..20T..1NO ; (0206-0406)XZU301,330 ..T3,T5..20T,40T)
90364-50003	Bearing, Needle Roller (For 2Nd Gear)	Transmission Gear (Mtm) ([06.2002 - 06.2004] MYY5A (0206-0406)XZU32#,350..5F ; (0206-0406)XZU302..5 F..20T..1NO ; (0206-0406)XZU301,330 ..T3,T5..20T,40T)
90364-58007	Bearing, Needle Roller (For 3Rd Gear)	Transmission Gear (Mtm) ([06.2002 - 06.2004] MYY5A (0206-0406)XZU32#,350..5F ; (0206-0406)XZU302..5 F..20T..1NO ; (0206-0406)XZU301,330 ..T3,T5..20T,40T)
90365-30030	Bearing Or Roller(For Counter Gear Front)	Transmission Gear (Mtm) ([06.2002 - 06.2004] MYY5A (0206-0406)XZU32#,350..5F ; (0206-0406)XZU302..5 F..20T..1NO ; (0206-0406)XZU301,330 ..T3,T5..20T,40T)
90520-99010	Ring, Shaft Snap (For Front Bearing)	Transmission Gear (Mtm) ([06.2002 - 06.2004] MYY5A (0206-0406)XZU32#,350..5F ; (0206-0406)XZU302..5 F..20T..1NO ; (0206-0406)XZU301,330 ..T3,T5..20T,40T)
96151-04500	Ring, Hole Snap (For Needle Roller)	Transmission Gear (Mtm) ([06.2002 - 06.2004] MYY5A (0206-0406)XZU32#,350..5F ; (0206-0406)XZU302..5 F..20T..1NO ; (0206-0406)XZU301,330 ..T3,T5..20T,40T)
