Search › Model › XZU321

XZU321

Toyota DYNA-TOYOACE · 1999 · 4,368 parts · 279 categories
XZU321 ×

← Back to categories

4,368 items

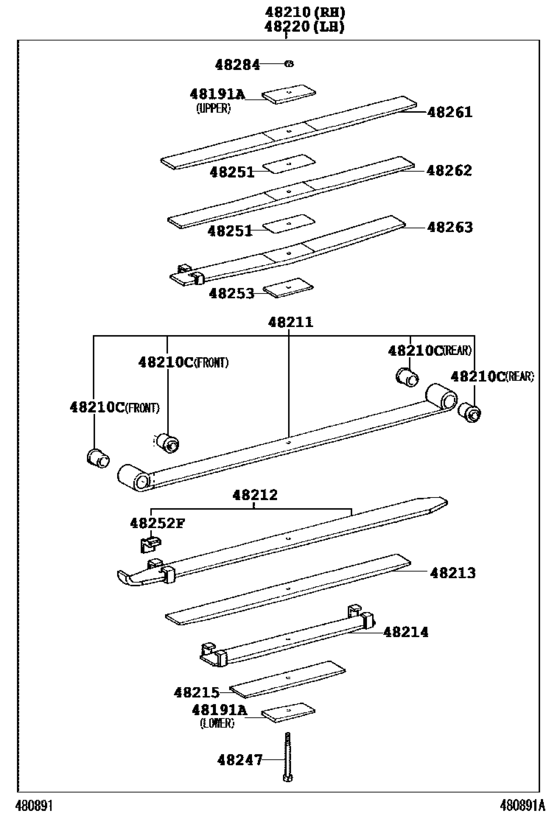

Rear Spring & Shock Absorber ([05.1999 - ] MAIN 5+HELPER 3-LEAF (9905- )XZU32#..30T) 28
#OEMPart name
48191 48192-37020 Wedge, Caster(For Rear Leaf Spring)
48191 48192-37040 Wedge, Caster(For Rear Leaf Spring)
48210 48210-3V420 Spring Assy, Rear Rh
48210 48210-3V421 Spring Assy, Rear Rh
48210 90389-16024 Bush(For Rear Spring Leaf)
48210 90389-16026 Bush, Front Spring No.2 Shackle
48211 48201-3V420 Leaf, Rear Spring, No.1
48211 48201-3V421 Leaf, Rear Spring, No.1
48212 48202-3V420 Leaf, Rear Spring, No.2
48212 48202-3V421 Leaf, Rear Spring, No.2
48213 48213-3V420 Leaf, Rear Spring, No.3
48213 48213-3V421 Leaf, Rear Spring, No.3
48214 48203-3V420 Leaf, Rear Spring, No.4
48214 48203-3V421 Leaf, Rear Spring, No.4
48215 48215-3V420 Leaf, Rear Spring, No.5
48215 48215-3V421 Leaf, Rear Spring, No.5
48247 48247-37780 Bolt, Rear Spring, Center
48251 48251-36530 Spacer, Front Leaf Spring, No.1
48252 48252-37380 Silencer, Rear Spring
48253 48253-25670 Leaf, Front Spring, No.5
48261 48216-3V420 Leaf, Rear Helper Spring, No.1
48261 48216-3V421 Leaf, Rear Helper Spring, No.1
48262 48217-3V420 Leaf, Rear Helper Spring, No.2
48262 48217-3V421 Leaf, Rear Helper Spring, No.2
48263 48204-3V420 Leaf, Rear Helper Spring, No.3
48263 48204-3V421 Leaf, Rear Helper Spring, No.3
48284 48299-27620 Nut, Front Spring Center Bolt
48284 48284-0W060 Nut, Front Spring Center Bolt
