Search › Model › XZU321

XZU321

Toyota DYNA-TOYOACE · 1999 · 4,368 parts · 279 categories

4,368 items

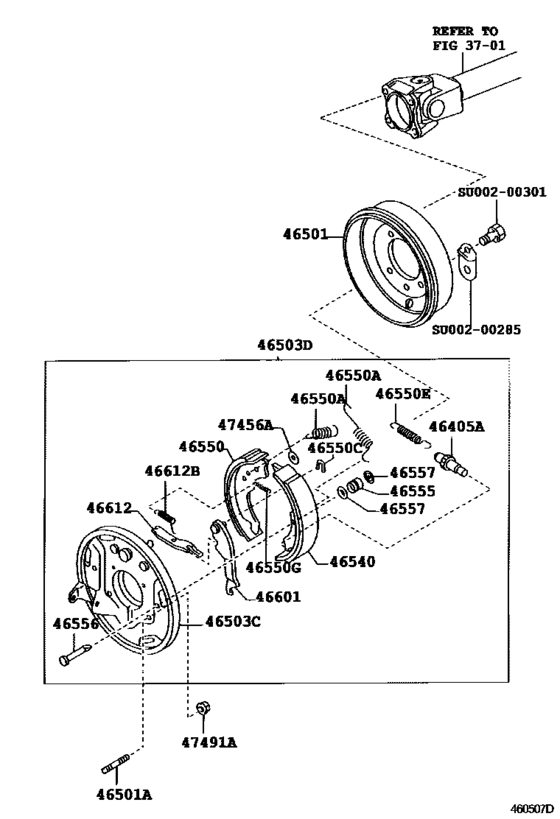

Parking Brake & Cable ([06.2002 - 06.2004] MYY5A (0206-0406)XZU32#,350..5F ; (0206-0406)XZU302..5 F..20T..1NO ; (0206-0406)XZU301,330 ..T3,T5..20T,40T) 20

#	OEM	Part name
0	90119-06931	New Genuine Part
46501	46501-37060	Drum Sub-Assy, Parking Brake
46501	46511-37080	Drum Sub-Assy, Parking Brake
46501	46511-37200	Drum Sub-Assy, Parking Brake
46501	90031-01170	Bolt, Serration(For Parking Brake Drum)
46503	46503-36011	Plate Sub-Assy, Parking Brake
46503	46503-37071	Plate Sub-Assy, Parking Brake
46540	46530-25020	Shoe Assy, Parking Brake, Rh Or Center No.1
46540	46530-37030	Shoe Assy, Parking Brake, Rh Or Center No.1
46550	90506-18001	Spring, Tension
46550	90213-06013	Washer, Type C(For Parking Brake Shoe)
46550	90506-14012	Spring, Tension, No.2(For Parking Brake Shoe Return)
46550	90506-14013	Spring, Tension, No.3(For Parking Brake Shoe Return)
46555	90501-16025	Spring, Brake Shoe Hold Down
46556	47447-22010	Pin, Shoe Hold Down Spring
46557	47449-20011	Cup, Brake Shoe Hold Down
46601	46601-36010	Lever Sub-Assy, Parking Brake Shoe
46612	46612-36010	Strut, Parking Brake Shoe Lever
46612	90504-10001	Spring, Compression(For Parking Brake Shoe Strut)
47491	90177-12003	Plug, Shoe Adjusting Hole(For Parking Brake Shoe)

OEM	Part name	Category
46501-37060	Drum Sub-Assy, Parking Brake	Parking Brake & Cable ([06.2002 - 06.2004] MYY5A (0206-0406)XZU32#,350..5F ; (0206-0406)XZU302..5 F..20T..1NO ; (0206-0406)XZU301,330 ..T3,T5..20T,40T)
46503-36011	Plate Sub-Assy, Parking Brake	Parking Brake & Cable ([06.2002 - 06.2004] MYY5A (0206-0406)XZU32#,350..5F ; (0206-0406)XZU302..5 F..20T..1NO ; (0206-0406)XZU301,330 ..T3,T5..20T,40T)
46503-37071	Plate Sub-Assy, Parking Brake	Parking Brake & Cable ([06.2002 - 06.2004] MYY5A (0206-0406)XZU32#,350..5F ; (0206-0406)XZU302..5 F..20T..1NO ; (0206-0406)XZU301,330 ..T3,T5..20T,40T)
46511-37080	Drum Sub-Assy, Parking Brake	Parking Brake & Cable ([06.2002 - 06.2004] MYY5A (0206-0406)XZU32#,350..5F ; (0206-0406)XZU302..5 F..20T..1NO ; (0206-0406)XZU301,330 ..T3,T5..20T,40T)
46511-37200	Drum Sub-Assy, Parking Brake	Parking Brake & Cable ([06.2002 - 06.2004] MYY5A (0206-0406)XZU32#,350..5F ; (0206-0406)XZU302..5 F..20T..1NO ; (0206-0406)XZU301,330 ..T3,T5..20T,40T)
46530-25020	Shoe Assy, Parking Brake, Rh Or Center No.1	Parking Brake & Cable ([06.2002 - 06.2004] MYY5A (0206-0406)XZU32#,350..5F ; (0206-0406)XZU302..5 F..20T..1NO ; (0206-0406)XZU301,330 ..T3,T5..20T,40T)
46530-37030	Shoe Assy, Parking Brake, Rh Or Center No.1	Parking Brake & Cable ([06.2002 - 06.2004] MYY5A (0206-0406)XZU32#,350..5F ; (0206-0406)XZU302..5 F..20T..1NO ; (0206-0406)XZU301,330 ..T3,T5..20T,40T)
46601-36010	Lever Sub-Assy, Parking Brake Shoe	Parking Brake & Cable ([06.2002 - 06.2004] MYY5A (0206-0406)XZU32#,350..5F ; (0206-0406)XZU302..5 F..20T..1NO ; (0206-0406)XZU301,330 ..T3,T5..20T,40T)
46612-36010	Strut, Parking Brake Shoe Lever	Parking Brake & Cable ([06.2002 - 06.2004] MYY5A (0206-0406)XZU32#,350..5F ; (0206-0406)XZU302..5 F..20T..1NO ; (0206-0406)XZU301,330 ..T3,T5..20T,40T)
47447-22010	Pin, Shoe Hold Down Spring	Parking Brake & Cable ([06.2002 - 06.2004] MYY5A (0206-0406)XZU32#,350..5F ; (0206-0406)XZU302..5 F..20T..1NO ; (0206-0406)XZU301,330 ..T3,T5..20T,40T)
47449-20011	Cup, Brake Shoe Hold Down	Parking Brake & Cable ([06.2002 - 06.2004] MYY5A (0206-0406)XZU32#,350..5F ; (0206-0406)XZU302..5 F..20T..1NO ; (0206-0406)XZU301,330 ..T3,T5..20T,40T)
90031-01170	Bolt, Serration(For Parking Brake Drum)	Parking Brake & Cable ([06.2002 - 06.2004] MYY5A (0206-0406)XZU32#,350..5F ; (0206-0406)XZU302..5 F..20T..1NO ; (0206-0406)XZU301,330 ..T3,T5..20T,40T)
90119-06931	New Genuine Part	Parking Brake & Cable ([06.2002 - 06.2004] MYY5A (0206-0406)XZU32#,350..5F ; (0206-0406)XZU302..5 F..20T..1NO ; (0206-0406)XZU301,330 ..T3,T5..20T,40T)
90177-12003	Plug, Shoe Adjusting Hole(For Parking Brake Shoe)	Parking Brake & Cable ([06.2002 - 06.2004] MYY5A (0206-0406)XZU32#,350..5F ; (0206-0406)XZU302..5 F..20T..1NO ; (0206-0406)XZU301,330 ..T3,T5..20T,40T)
90213-06013	Washer, Type C(For Parking Brake Shoe)	Parking Brake & Cable ([06.2002 - 06.2004] MYY5A (0206-0406)XZU32#,350..5F ; (0206-0406)XZU302..5 F..20T..1NO ; (0206-0406)XZU301,330 ..T3,T5..20T,40T)
90501-16025	Spring, Brake Shoe Hold Down	Parking Brake & Cable ([06.2002 - 06.2004] MYY5A (0206-0406)XZU32#,350..5F ; (0206-0406)XZU302..5 F..20T..1NO ; (0206-0406)XZU301,330 ..T3,T5..20T,40T)
90504-10001	Spring, Compression(For Parking Brake Shoe Strut)	Parking Brake & Cable ([06.2002 - 06.2004] MYY5A (0206-0406)XZU32#,350..5F ; (0206-0406)XZU302..5 F..20T..1NO ; (0206-0406)XZU301,330 ..T3,T5..20T,40T)
90506-14012	Spring, Tension, No.2(For Parking Brake Shoe Return)	Parking Brake & Cable ([06.2002 - 06.2004] MYY5A (0206-0406)XZU32#,350..5F ; (0206-0406)XZU302..5 F..20T..1NO ; (0206-0406)XZU301,330 ..T3,T5..20T,40T)
90506-14013	Spring, Tension, No.3(For Parking Brake Shoe Return)	Parking Brake & Cable ([06.2002 - 06.2004] MYY5A (0206-0406)XZU32#,350..5F ; (0206-0406)XZU302..5 F..20T..1NO ; (0206-0406)XZU301,330 ..T3,T5..20T,40T)
90506-18001	Spring, Tension	Parking Brake & Cable ([06.2002 - 06.2004] MYY5A (0206-0406)XZU32#,350..5F ; (0206-0406)XZU302..5 F..20T..1NO ; (0206-0406)XZU301,330 ..T3,T5..20T,40T)
