Search › Model › XZU321

XZU321

Toyota DYNA-TOYOACE · 1999 · 4,368 parts · 279 categories
XZU321 ×

← Back to categories

4,368 items

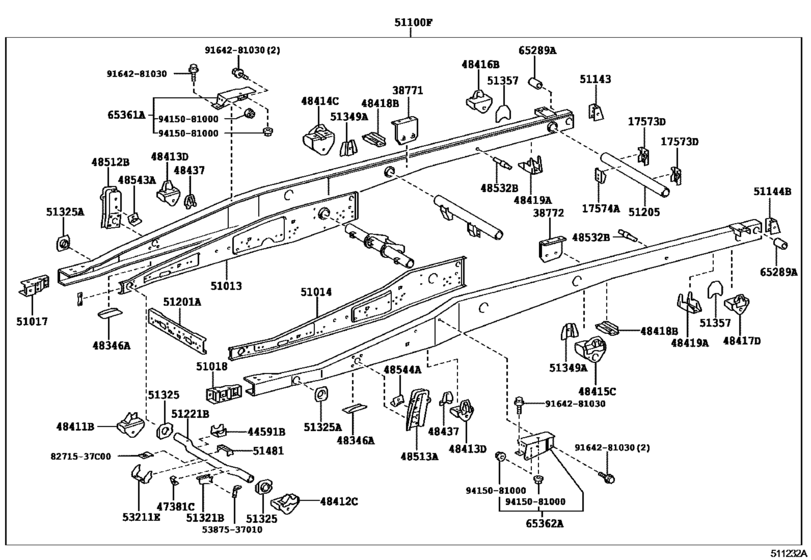

Frame ([06.2004 - 10.2006] ﾌﾚｰﾑ (0406-0610)XZU321) 56
#OEMPart name
17573 17573-78030 Bracket, Exhaust Pipe Support, No.3
17574 17574-78060 Bracket, Exhaust Pipe Support, No.4
38771 38771-37010 Stay, Trunnion Bracket, Rh
38772 38772-37010 Stay, Trunnion Bracket, Lh
44591 44591-37220 Bracket, Brake Actuator
47381 47381-37060 Bracket, Tube Clamp
47381 47381-37310 Bracket, Tube Clamp
48346 48346-37030 Stopper, Bumper, Fr
48411 48411-37051 Bracket, Spring, No.1 Rh
48412 48412-37041 Bracket, Spring, No.1 Lh
48413 48413-37040 Bracket, Spring, No.2
48414 48414-37090 Bracket, Spring, No.3 Rh
48415 48415-37010 Bracket, Spring, No.3 Lh
48416 48416-37070 Bracket, Spring, No.4 Rh
48418 48418-37020 Bracket, Spring, No.6
48419 48419-37020 Bracket, Spring, No.7
48437 48437-37010 Attachment, Spring Bracket
48512 48512-37050 Bracket, Front Shock Absorber, Upper Rh
48513 48512-37130 Bracket, Front Shock Absorber, Upper Lh
48532 48532-37010 Pin, Rear Shock Absorber Upper Pivot
48543 48543-37010 Reinforcement, Front Absorber Bracket, Rh
51013 51013-37350 Channel Sub-Assy, Side Rail, Inner Front Rh
51014 51014-37320 Channel Sub-Assy, Side Rail, Inner Front Lh
51017 51017-37050 Reinforcement Sub-Assy, Side Rail, No.1 Rh
51018 51018-37040 Reinforcement Sub-Assy, Side Rail, No.1 Lh
51018 51018-37050 Reinforcement Sub-Assy, Side Rail, No.1 Lh
51100 51001-37G80 Frame Sub-Assy
51100 51001-37G81 Frame Sub-Assy
51100 51002-3V340 Frame Sub-Assy
51100 51003-37710 Frame Sub-Assy
51143 51143-37040 Reinforcement, Side Rail, Rear Rh
51201 51211-37100 Crossmember Sub-Assy, Frame, Front
51201 51211-37102 Crossmember Sub-Assy, Frame, Front
51201 51211-37101 Crossmember Sub-Assy, Frame, Front
51205 51241-37030 Crossmember Sub-Assy, Frame, No.3
51221 51221-37160 Crossmember, Front Suspension
51221 51221-37161 Crossmember, Front Suspension
51321 51321-37040 Gusset, Crossmember, No.2
51321 51321-37080 Gusset, Crossmember, No.2
51325 51325-37020 Retainer, Frame No.2 Crossmember
51325 51325-37021 Retainer, Frame No.2 Crossmember
51325 51325-37040 Retainer, Frame No.2 Crossmember
51349 51349-37012 Reinforcement, Rear Spring Front Bracket, No.2
51357 51357-37020 Reinforcement, Rear Spring Rear Bracket, Rh
51481 51481-37070 Bracket, Power Steering Tube Clamp
53211 53211-37030 Support, Radiator
53211 53211-37050 Support, Radiator
65289 65289-37010 Support, Vessel Hinge
65361 65361-37010 Stay, Vessel Lock, Rh
65361 65361-37011 Stay, Vessel Lock, Rh
65362 65362-37010 Stay, Vessel Lock, Lh
65362 65362-37011 Stay, Vessel Lock, Lh
8271537 82715-37C00 Bracket,wiring Harness Clamp
5387537010 53875-37010 Bracket, Air Duct Clamp
9164281030 91642-81030 Bolt
9415081000 94150-81000 NUT FLANGE
