XZU321

Toyota DYNA-TOYOACE · 1999 · 4,368 parts · 279 categories
XZU321 ×

← Back to categories

4,368 items

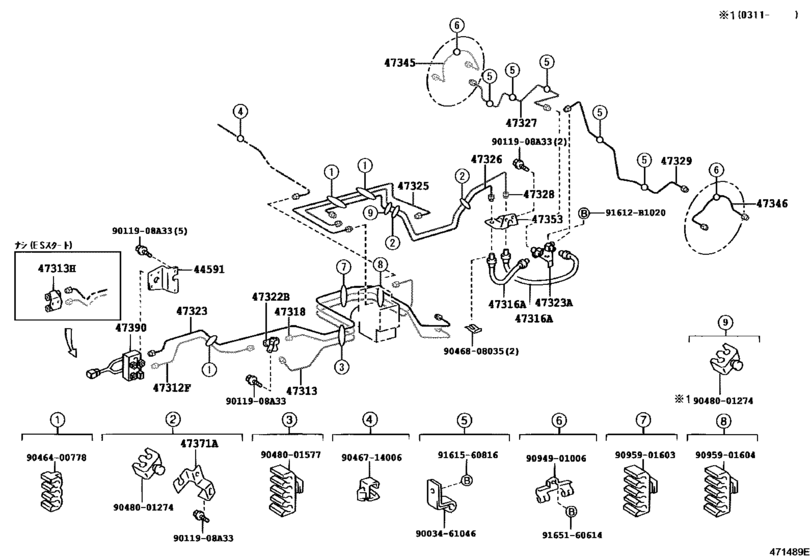

Brake Tube & Clamp ([05.1999 - 06.2004] (9905-0406)XZU32#) 40
#OEMPart name
44591 44591-37050 Bracket, Brake Actuator, No.1
47312 47312-37140 Tube, Front Brake, Frame, No.2
47313 47313-37200 Tube, Front Brake, No.3
47313 47313-37410 Tube, Front Brake, No.3
47313 47313-37440 Tube, Front Brake, No.3
47313 90904-12076 Way, No.3(For Front Brake Tube)
47316 90947-02B78 Hose, Flexible(For Rear Brake Tube)
47318 47318-37120 Tube, Front Brake, No.8
47322 90904-13054 Way, No.2(For Rear Brake Tube)
47323 47323-37120 Tube, Rear Brake, No.3
47323 47323-37390 Tube, Rear Brake, No.3
47323 47323-37550 Tube, Rear Brake, No.3
47323 90412-12052 Way, No.3(For Rear Brake Tube)
47325 47325-37190 Tube, Rear Brake, No.5
47325 47325-37330 Tube, Rear Brake, No.5
47326 47326-37220 Tube, Rear Brake, No.6
47326 47326-37530 Tube, Rear Brake, No.6
47327 47327-37310 Tube, Rear Brake, No.7
47328 47328-37070 Tube, Rear Brake, No.8
47328 47328-37380 Tube, Rear Brake, No.8
47329 47329-37170 Tube, Rear Brake, No.9
47345 47345-36050 Tube, Wheel Cylinder, Rear Rh
47353 47353-37120 Bracket, Flexible Hose(For Rear)
47371 47371-37030 Clamp, Brake Tube, No.1
47390 47390-37011 Valve Assy, Hill Holder Brake Lock
91612 91612-B1020 Bolt (For Transfer Case)Cover No.2
9011908 90119-08A33 BOLT
9003461046 90034-61046 New Genuine Part
9046400778 90464-00778 Clamp, Brake Tube, No.1
9046714006 90467-14006 New Genuine Part
9046808035 90468-08035 CLIP
9046808035 90468-A0007 New Genuine Part
9048001274 90480-01274 Grommet, No.2(For Front Brake Tube)
9048001577 90480-01577 GROMMET
9094901006 90949-01006 CLAMP
9095901603 90959-01603 Clamp, Brake Tube, No.5
9095901604 90959-01604 Clamp, Brake Tube, No.7
9161560816 91615-60816 Bolt(For Oil Receiver Pipe)
9161560816 91611-60814 Bolt
9165160614 91651-60614 Bolt
