Search › Model › XZU321

XZU321

Toyota DYNA-TOYOACE · 1999 · 4,368 parts · 279 categories
XZU321 ×

← Back to categories

4,368 items

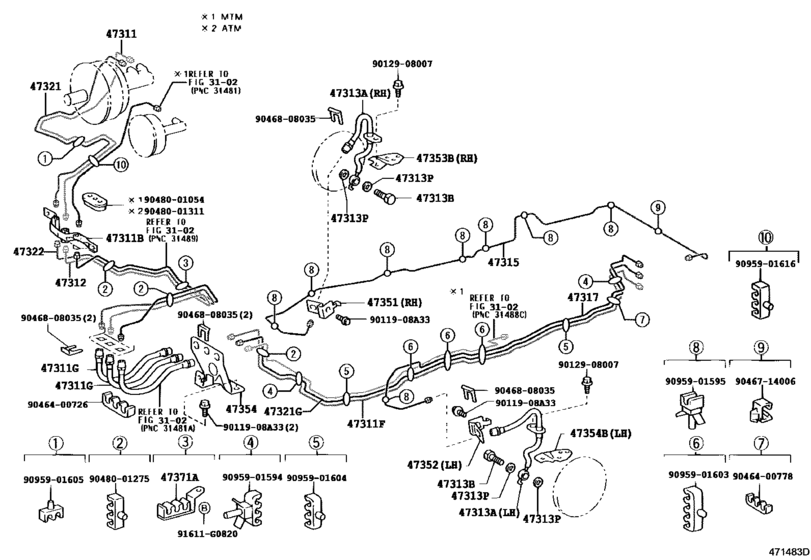

Brake Tube & Clamp ([05.1999 - 06.2004] (9905-0406)XZU31#,32#,351,352) 47
#OEMPart name
47311 47311-37160 Tube, Front Brake, No.1
47311 47311-37162 Tube, Front Brake, No.1
47311 47311-37161 Tube, Front Brake, No.1
47311 47391-37010 Way, No.1(For Front Brake Tube)
47311 47311-37250 Tube, Front Brake, Frame No.1
47311 47311-37440 Tube, Front Brake, Frame No.1
47311 90947-02A79 Hose, Flexible(For Brake Tube)
47311 90947-02D83 Hose, Flexible(For Brake Tube)
47312 47312-37060 Tube, Front Brake, No.2
47312 47312-37490 Tube, Front Brake, No.2
47313 90947-02A72 Hose, Flexible, No.1(For Front)
47313 90947-02B27 Hose, Flexible, No.1(For Front)
47313 90401-10015 Bolt, Union(For Clutch Mas Cylinder To Flexible Hose Tube)
47313 47389-30010 Gasket(For Clutch Master Cylinder To Flexible Hose Tube)
47315 47315-37120 Tube, Front Brake, No.5
47315 47315-37121 Tube, Front Brake, No.5
47317 47317-37110 Tube, Front Brake, No.7
47317 47317-37111 Tube, Front Brake, No.7
47321 47321-37160 Tube, Rear Brake, No.1
47321 47321-37420 Tube, Rear Brake, No.1
47321 47321-37250 Tube, Rear Brake, Frame No.1
47322 47322-37200 Tube, Rear Brake, No.2
47322 47322-37580 Tube, Rear Brake, No.2
47351 47351-37130 Bracket, Flexible Hose(For Front Rh)
47352 47352-37050 Bracket, Flexible Hose(For Front Lh)
47353 47353-37150 Bracket, Flexible Hose, No.3
47354 47354-37120 Bracket, Front Flexible Hose
47354 47354-37121 Bracket, Front Flexible Hose
47354 47354-37160 Bracket, Flexible Hose, No.4
47371 47371-37030 Clamp, Brake Tube, No.1
91611 91611-G0820 Bolt
9011908 90119-08A33 BOLT
9012908007 90129-08007 New Genuine Part
9046400726 90464-00726 Clamp, Brake Tube, No.4
9046400778 90464-00778 Clamp, Brake Tube, No.1
9046714006 90467-14006 New Genuine Part
9046808035 90468-08035 CLIP
9046808035 90468-A0007 New Genuine Part
9048001054 90480-01054 Grommet(For Brake Tube)
9048001275 90480-01275 Clamp, Brake Tube, No.7
9048001311 90480-01311 Grommet(For Brake Tube)
9095901594 90959-01594 Clamp, Brake Tube, No.9
9095901595 90959-01595 Clamp, Brake Tube, No.1
9095901603 90959-01603 Clamp, Brake Tube, No.5
9095901604 90959-01604 Clamp, Brake Tube, No.7
9095901605 90959-01605 New Genuine Part
9095901616 90959-01616 New Genuine Part
