| 04474-36020 |
Cylinder Kit, Rear Wheel |

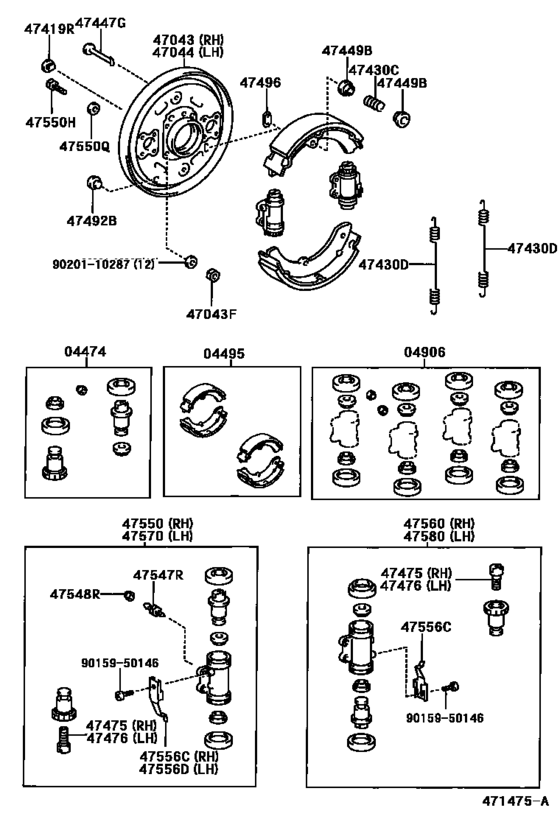

Rear Drum Brake Wheel Cylinder & Backing Plate ([07.1999 - ] (9907- )XZU300,320,330..20T,30T) |
| 04474-36030 |
Cylinder Kit, Rear Wheel |
Rear Drum Brake Wheel Cylinder & Backing Plate ([07.1999 - ] (9907- )XZU300,320,330..20T,30T) |
| 04494-36210 |
Shoe Kit, Front Brake |
Rear Drum Brake Wheel Cylinder & Backing Plate ([07.1999 - ] (9907- )XZU300,320,330..20T,30T) |
| 04494-36290 |
Shoe Kit, Front Brake |
Rear Drum Brake Wheel Cylinder & Backing Plate ([07.1999 - ] (9907- )XZU300,320,330..20T,30T) |
| 04906-36170 |
Cup Kit, Rear Wheel Cylinder |
Rear Drum Brake Wheel Cylinder & Backing Plate ([07.1999 - ] (9907- )XZU300,320,330..20T,30T) |
| 31478-30010 |
Bleeder Plug Cap |
Rear Drum Brake Wheel Cylinder & Backing Plate ([07.1999 - ] (9907- )XZU300,320,330..20T,30T) |
| 47043-36160 |
Plate Sub-Assy, Brake Backing, Rear Rh |
Rear Drum Brake Wheel Cylinder & Backing Plate ([07.1999 - ] (9907- )XZU300,320,330..20T,30T) |
| 47044-36160 |
Plate Sub-Assy, Brake Backing, Rear Lh |
Rear Drum Brake Wheel Cylinder & Backing Plate ([07.1999 - ] (9907- )XZU300,320,330..20T,30T) |
| 47419-35011 |
Plug, Hole(For Front Brake) |
Rear Drum Brake Wheel Cylinder & Backing Plate ([07.1999 - ] (9907- )XZU300,320,330..20T,30T) |
| 47447-60010 |
Pin, Shoe Hold Down Spring(For Front Brake) |
Rear Drum Brake Wheel Cylinder & Backing Plate ([07.1999 - ] (9907- )XZU300,320,330..20T,30T) |
| 47449-30020 |
Cup, Shoe Hold Down Spring(For Front Brake) |
Rear Drum Brake Wheel Cylinder & Backing Plate ([07.1999 - ] (9907- )XZU300,320,330..20T,30T) |
| 47491-36010 |
Plug, Hole(For Front Brake) |
Rear Drum Brake Wheel Cylinder & Backing Plate ([07.1999 - ] (9907- )XZU300,320,330..20T,30T) |
| 47491-36020 |
Plug, Hole(For Rear Brake) |
Rear Drum Brake Wheel Cylinder & Backing Plate ([07.1999 - ] (9907- )XZU300,320,330..20T,30T) |
| 47492-06010 |
Plug, Shoe Inspection(For Rear Brake) |
Rear Drum Brake Wheel Cylinder & Backing Plate ([07.1999 - ] (9907- )XZU300,320,330..20T,30T) |
| 47492-28010 |
Plug, Shoe Inspection(For Rear Brake) |
Rear Drum Brake Wheel Cylinder & Backing Plate ([07.1999 - ] (9907- )XZU300,320,330..20T,30T) |
| 47547-27020 |
Plug, Bleeder(For Front Drum Brake) |
Rear Drum Brake Wheel Cylinder & Backing Plate ([07.1999 - ] (9907- )XZU300,320,330..20T,30T) |
| 47550-37120 |
Cylinder Assy, Rear Wheel Brake(For Rh, Front Or Upper) |
Rear Drum Brake Wheel Cylinder & Backing Plate ([07.1999 - ] (9907- )XZU300,320,330..20T,30T) |
| 47550-37121 |
Cylinder Assy, Rear Wheel Brake(For Rh, Front Or Upper) |
Rear Drum Brake Wheel Cylinder & Backing Plate ([07.1999 - ] (9907- )XZU300,320,330..20T,30T) |
| 47553-36060 |
Bolt, Rear Wheel Cylinder Adjusting, Rh (For Rear Brake) |
Rear Drum Brake Wheel Cylinder & Backing Plate ([07.1999 - ] (9907- )XZU300,320,330..20T,30T) |
| 47554-36060 |
Bolt, Rear Wheel Cylinder Adjusting, Lh(For Rear Brake) |
Rear Drum Brake Wheel Cylinder & Backing Plate ([07.1999 - ] (9907- )XZU300,320,330..20T,30T) |
| 47555-36051 |
Spring, Adjuster Lock(For Front Brake) |
Rear Drum Brake Wheel Cylinder & Backing Plate ([07.1999 - ] (9907- )XZU300,320,330..20T,30T) |
| 47560-36200 |
Cylinder Assy, Rear Wheel Brake(For Rh, Rear Or Lower) |
Rear Drum Brake Wheel Cylinder & Backing Plate ([07.1999 - ] (9907- )XZU300,320,330..20T,30T) |
| 47560-36201 |
Cylinder Assy, Rear Wheel Brake(For Rh, Rear Or Lower) |
Rear Drum Brake Wheel Cylinder & Backing Plate ([07.1999 - ] (9907- )XZU300,320,330..20T,30T) |
| 47570-37080 |
Cylinder Assy, Rear Wheel Brake(For Lh, Front Or Upper) |
Rear Drum Brake Wheel Cylinder & Backing Plate ([07.1999 - ] (9907- )XZU300,320,330..20T,30T) |
| 47570-37081 |
Cylinder Assy, Rear Wheel Brake(For Lh, Front Or Upper) |
Rear Drum Brake Wheel Cylinder & Backing Plate ([07.1999 - ] (9907- )XZU300,320,330..20T,30T) |
| 47580-36200 |
Cylinder Assy, Rear Wheel Brake(For Lh, Rear Or Lower) |
Rear Drum Brake Wheel Cylinder & Backing Plate ([07.1999 - ] (9907- )XZU300,320,330..20T,30T) |
| 47580-36201 |
Cylinder Assy, Rear Wheel Brake(For Lh, Rear Or Lower) |
Rear Drum Brake Wheel Cylinder & Backing Plate ([07.1999 - ] (9907- )XZU300,320,330..20T,30T) |
| 90101-10127 |
Bolt(For Front Wheel Cylinder) |
Rear Drum Brake Wheel Cylinder & Backing Plate ([07.1999 - ] (9907- )XZU300,320,330..20T,30T) |
| 90159-50146 |
SCREW |
Rear Drum Brake Wheel Cylinder & Backing Plate ([07.1999 - ] (9907- )XZU300,320,330..20T,30T) |
| 90201-10287 |
Washer(For Front Wheel Cylinder) |
Rear Drum Brake Wheel Cylinder & Backing Plate ([07.1999 - ] (9907- )XZU300,320,330..20T,30T) |
| 90501-20012 |
Spring(For Front Brake Shoe Hold Down) |
Rear Drum Brake Wheel Cylinder & Backing Plate ([07.1999 - ] (9907- )XZU300,320,330..20T,30T) |
| 90507-29006 |
Spring, Tension(For Front Brake Shoe Return) |
Rear Drum Brake Wheel Cylinder & Backing Plate ([07.1999 - ] (9907- )XZU300,320,330..20T,30T) |
| 94130-01002 |
Nut, Booster Sleeve Cylinder |
Rear Drum Brake Wheel Cylinder & Backing Plate ([07.1999 - ] (9907- )XZU300,320,330..20T,30T) |
