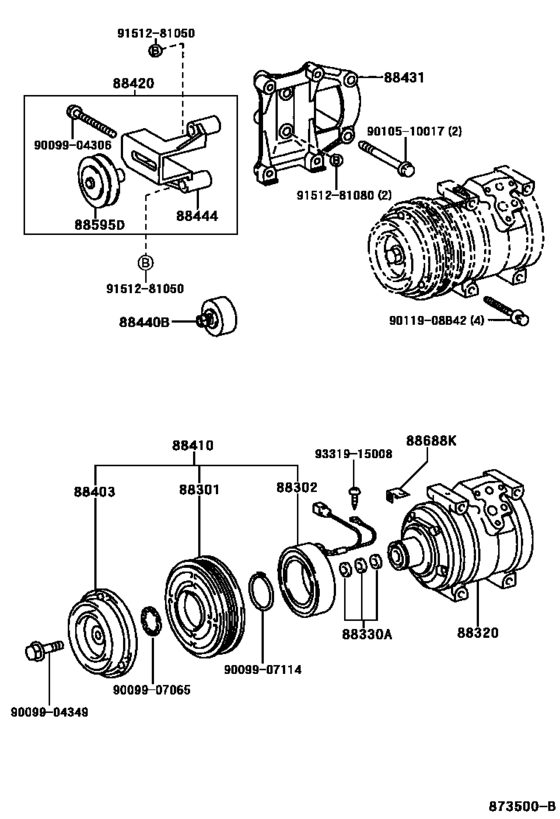

| 88320-37070 |
Compressor Assy, Cooler |
Heating & Air Conditioning - Compressor ([07.1999 - ] (9907- )XZU300,320,330,340) |
| 88335-14020 |
Washer |
Heating & Air Conditioning - Compressor ([07.1999 - ] (9907- )XZU300,320,330,340) |
| 88403-16011 |
Hub Sub-Assy, Magnet Clutch |
Heating & Air Conditioning - Compressor ([07.1999 - ] (9907- )XZU300,320,330,340) |
| 88410-37080 |
Clutch Assy, Magnet |
Heating & Air Conditioning - Compressor ([07.1999 - ] (9907- )XZU300,320,330,340) |
| 88411-60090 |
Stator Sub-Assy, Magnet Clutch |
Heating & Air Conditioning - Compressor ([07.1999 - ] (9907- )XZU300,320,330,340) |
| 88412-37010 |
Rotor Sub-Assy, Magnet Clutch |
Heating & Air Conditioning - Compressor ([07.1999 - ] (9907- )XZU300,320,330,340) |
| 88420-37100 |
Pulley Assy, Idle, W/bracket |
Heating & Air Conditioning - Compressor ([07.1999 - ] (9907- )XZU300,320,330,340) |
| 88431-37080 |
Bracket, Compressor Mounting, No.1 |
Heating & Air Conditioning - Compressor ([07.1999 - ] (9907- )XZU300,320,330,340) |
| 88440-35010 |
Pulley Assy, Idle |
Heating & Air Conditioning - Compressor ([07.1999 - ] (9907- )XZU300,320,330,340) |
| 88440-37030 |
Pulley Assy, Idle |
Heating & Air Conditioning - Compressor ([07.1999 - ] (9907- )XZU300,320,330,340) |
| 88444-37120 |
Bracket, Idle Pulley |
Heating & Air Conditioning - Compressor ([07.1999 - ] (9907- )XZU300,320,330,340) |
| 88688-2D770 |
Bracket, Cooler Compressor |
Heating & Air Conditioning - Compressor ([07.1999 - ] (9907- )XZU300,320,330,340) |
| 90099-04306 |
Bolt, Idle Pulley |
Heating & Air Conditioning - Compressor ([07.1999 - ] (9907- )XZU300,320,330,340) |
| 90099-04349 |
Bolt, Magnet Clutch Setting |
Heating & Air Conditioning - Compressor ([07.1999 - ] (9907- )XZU300,320,330,340) |
| 90099-07065 |
SNAP RING |
Heating & Air Conditioning - Compressor ([07.1999 - ] (9907- )XZU300,320,330,340) |
| 90099-07114 |
Ring, Snap (For Magnet Clutch) |
Heating & Air Conditioning - Compressor ([07.1999 - ] (9907- )XZU300,320,330,340) |
| 90105-10017 |
Bolt |
Heating & Air Conditioning - Compressor ([07.1999 - ] (9907- )XZU300,320,330,340) |
| 90119-08B42 |
BOLT WWASHER |
Heating & Air Conditioning - Compressor ([07.1999 - ] (9907- )XZU300,320,330,340) |
| 91512-81050 |
New Genuine Part |
Heating & Air Conditioning - Compressor ([07.1999 - ] (9907- )XZU300,320,330,340) |
| 91512-81080 |
New Genuine Part |
Heating & Air Conditioning - Compressor ([07.1999 - ] (9907- )XZU300,320,330,340) |
| 93319-15008 |
SCREW |
Heating & Air Conditioning - Compressor ([07.1999 - ] (9907- )XZU300,320,330,340) |
