Search › Model › XZU320

XZU320

Toyota DYNA-TOYOACE · 1999 · 3,858 parts · 331 categories
XZU320 ×

← Back to categories

3,858 items

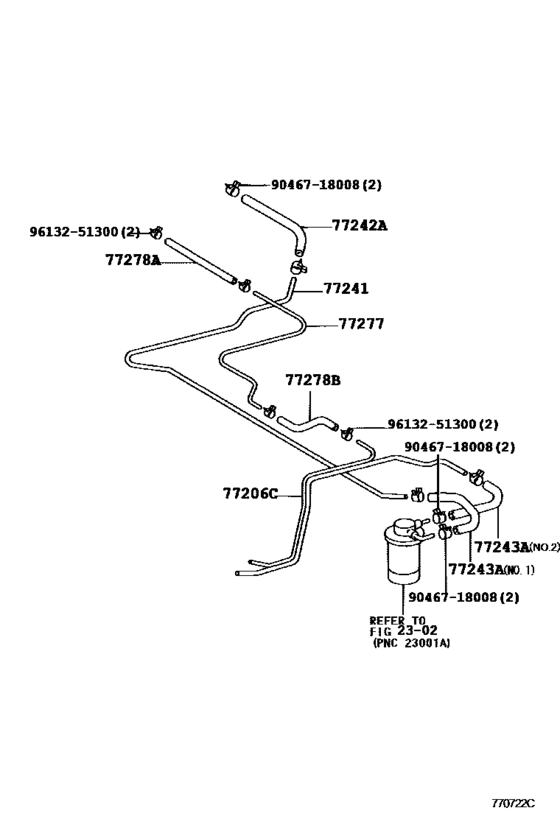

Fuel Tank & Tube ([07.1999 - ] FUEL TUBE (9907- )XZU320) 12
#OEMPart name
77206 77207-37010 Tube Sub-Assy, Fuel Main, No.2
77241 77207-37100 Tube, Fuel Main, No.1
77242 95332-12022 Hose, Fuel, No.1 (For Main Tube, No.2)
77242 95337-12022 Hose, Fuel, No.2 (For Main Tube, No.2)
77243 77259-37080 Hose, Fuel, No.1 (For Main Tube, No.3)
77243 95332-12038 Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter)
77277 77205-37240 Tube, Fuel Return, No.1
77278 95333-08030 Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter)
77278 95333-08020 Hose, Lpg Injector
77278 95337-08020 Hose, Fuel(For Fuel Evaporative Separator) - FUEL, NO.1(FOR RETURN TUBE, NO.1)
9046718008 90467-18008 Clip(For Water By-Pass Hose No.2)
9613251300 96132-51300 Clip(For Ventilation Hose No.2)
