Search › Model › XZU320

XZU320

Toyota DYNA-TOYOACE · 1999 · 3,858 parts · 331 categories

3,858 items

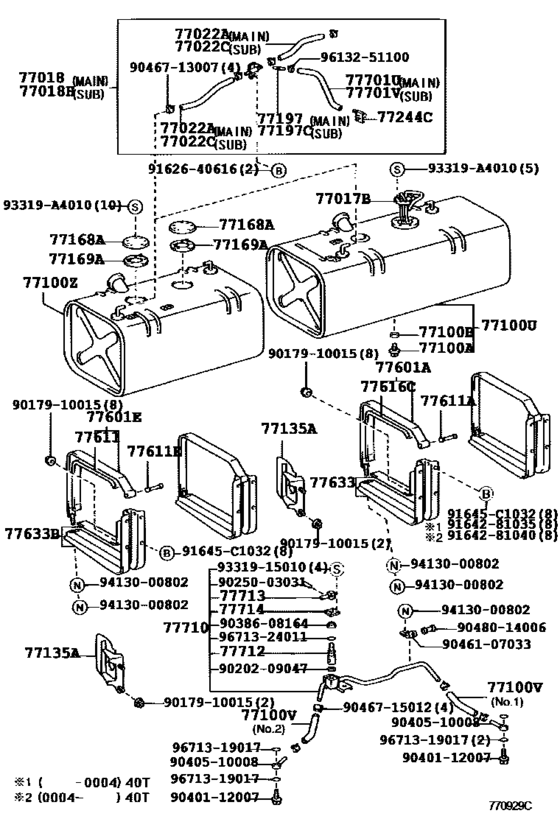

Fuel Tank & Tube ([07.1999 - ] FUEL TANK W(SUB TANK) (9907- )XZU300,320,330,34#) 36

#	OEM	Part name
77017	77017-37010	Tube Sub-Assy, Fuel Tank Vent
77018	77018-37050	Valve Sub-Assy, Fuel Vapour Separate
77022	95333-08030	Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter)
77100	90105-12116	Plug(For Fuel Tank)
77100	90430-12245	Gasket(For Fuel Tank)
77100	77001-37210	Tank Sub-Assy, Fuel
77100	77001-37212	Tank Sub-Assy, Fuel
77197	90977-02001	Orifice, Fuel Vapour
77601	77601-36150	Band Sub-Assy, Fuel Tank, No.1
77601	77601-37041	Band Sub-Assy, Fuel Tank, No.1
77611	77629-36010	Pin (For Fuel Tank Band)
77616	77616-36030	Band, Fuel Tank
77633	77501-37080	Stay, Fuel Tank
77701	95333-06040	Hose
91645	91645-C1032	Bolt, Fuel Tank
93319	93319-A4010	SCREW WWASHER
9017910015	90179-10015	NUT
9020209047	90202-09047	New Genuine Part
9025003031	90250-03031	Pin (For Down Shift Plug Sleeve)
9038608164	90386-08164	Bush (For Accelerator Pedal Rod)
9040112007	90401-12007	Bolt, Union, No.1
9040510008	90405-10008	Union(For Fuel Sub-Tank)
9046107033	90461-07033	New Genuine Part
9046713007	90467-13007	Clamp Or Clip(For Water By-Pass Hose No.2)
9046713007	96132-51300	Clip(For Ventilation Hose No.2)
9046715012	90467-15012	Clip Or Clamp(For Ventilation Hose)
9048014006	90480-14006	New Genuine Part
9162640616	91626-40616	New Genuine Part
9164281035	91642-81035	BOLT WWASHER
9164281040	91642-81040	New Genuine Part
9331915010	93319-15010	SCREW
9413000802	94130-00802	Nut, No.1 (For Center Support Bearing)
9413000802	90170-A0001	New Genuine Part
9613251100	96132-51100	Clip (For Hose)
9671319017	96713-19017	New Genuine Part
9671324011	96713-24011	New Genuine Part

OEM	Part name	Category
77001-37210	Tank Sub-Assy, Fuel	Fuel Tank & Tube ([07.1999 - ] FUEL TANK W(SUB TANK) (9907- )XZU300,320,330,34#)
77001-37212	Tank Sub-Assy, Fuel	Fuel Tank & Tube ([07.1999 - ] FUEL TANK W(SUB TANK) (9907- )XZU300,320,330,34#)
77017-37010	Tube Sub-Assy, Fuel Tank Vent	Fuel Tank & Tube ([07.1999 - ] FUEL TANK W(SUB TANK) (9907- )XZU300,320,330,34#)
77018-37050	Valve Sub-Assy, Fuel Vapour Separate	Fuel Tank & Tube ([07.1999 - ] FUEL TANK W(SUB TANK) (9907- )XZU300,320,330,34#)
77501-37080	Stay, Fuel Tank	Fuel Tank & Tube ([07.1999 - ] FUEL TANK W(SUB TANK) (9907- )XZU300,320,330,34#)
77601-36150	Band Sub-Assy, Fuel Tank, No.1	Fuel Tank & Tube ([07.1999 - ] FUEL TANK W(SUB TANK) (9907- )XZU300,320,330,34#)
77601-37041	Band Sub-Assy, Fuel Tank, No.1	Fuel Tank & Tube ([07.1999 - ] FUEL TANK W(SUB TANK) (9907- )XZU300,320,330,34#)
77616-36030	Band, Fuel Tank	Fuel Tank & Tube ([07.1999 - ] FUEL TANK W(SUB TANK) (9907- )XZU300,320,330,34#)
77629-36010	Pin (For Fuel Tank Band)	Fuel Tank & Tube ([07.1999 - ] FUEL TANK W(SUB TANK) (9907- )XZU300,320,330,34#)
90105-12116	Plug(For Fuel Tank)	Fuel Tank & Tube ([07.1999 - ] FUEL TANK W(SUB TANK) (9907- )XZU300,320,330,34#)
90170-A0001	New Genuine Part	Fuel Tank & Tube ([07.1999 - ] FUEL TANK W(SUB TANK) (9907- )XZU300,320,330,34#)
90179-10015	NUT	Fuel Tank & Tube ([07.1999 - ] FUEL TANK W(SUB TANK) (9907- )XZU300,320,330,34#)
90202-09047	New Genuine Part	Fuel Tank & Tube ([07.1999 - ] FUEL TANK W(SUB TANK) (9907- )XZU300,320,330,34#)
90250-03031	Pin (For Down Shift Plug Sleeve)	Fuel Tank & Tube ([07.1999 - ] FUEL TANK W(SUB TANK) (9907- )XZU300,320,330,34#)
90386-08164	Bush (For Accelerator Pedal Rod)	Fuel Tank & Tube ([07.1999 - ] FUEL TANK W(SUB TANK) (9907- )XZU300,320,330,34#)
90401-12007	Bolt, Union, No.1	Fuel Tank & Tube ([07.1999 - ] FUEL TANK W(SUB TANK) (9907- )XZU300,320,330,34#)
90405-10008	Union(For Fuel Sub-Tank)	Fuel Tank & Tube ([07.1999 - ] FUEL TANK W(SUB TANK) (9907- )XZU300,320,330,34#)
90430-12245	Gasket(For Fuel Tank)	Fuel Tank & Tube ([07.1999 - ] FUEL TANK W(SUB TANK) (9907- )XZU300,320,330,34#)
90461-07033	New Genuine Part	Fuel Tank & Tube ([07.1999 - ] FUEL TANK W(SUB TANK) (9907- )XZU300,320,330,34#)
90467-13007	Clamp Or Clip(For Water By-Pass Hose No.2)	Fuel Tank & Tube ([07.1999 - ] FUEL TANK W(SUB TANK) (9907- )XZU300,320,330,34#)
90467-15012	Clip Or Clamp(For Ventilation Hose)	Fuel Tank & Tube ([07.1999 - ] FUEL TANK W(SUB TANK) (9907- )XZU300,320,330,34#)
90480-14006	New Genuine Part	Fuel Tank & Tube ([07.1999 - ] FUEL TANK W(SUB TANK) (9907- )XZU300,320,330,34#)
90977-02001	Orifice, Fuel Vapour	Fuel Tank & Tube ([07.1999 - ] FUEL TANK W(SUB TANK) (9907- )XZU300,320,330,34#)
91626-40616	New Genuine Part	Fuel Tank & Tube ([07.1999 - ] FUEL TANK W(SUB TANK) (9907- )XZU300,320,330,34#)
91642-81035	BOLT WWASHER	Fuel Tank & Tube ([07.1999 - ] FUEL TANK W(SUB TANK) (9907- )XZU300,320,330,34#)
91642-81040	New Genuine Part	Fuel Tank & Tube ([07.1999 - ] FUEL TANK W(SUB TANK) (9907- )XZU300,320,330,34#)
91645-C1032	Bolt, Fuel Tank	Fuel Tank & Tube ([07.1999 - ] FUEL TANK W(SUB TANK) (9907- )XZU300,320,330,34#)
93319-15010	SCREW	Fuel Tank & Tube ([07.1999 - ] FUEL TANK W(SUB TANK) (9907- )XZU300,320,330,34#)
93319-A4010	SCREW WWASHER	Fuel Tank & Tube ([07.1999 - ] FUEL TANK W(SUB TANK) (9907- )XZU300,320,330,34#)
94130-00802	Nut, No.1 (For Center Support Bearing)	Fuel Tank & Tube ([07.1999 - ] FUEL TANK W(SUB TANK) (9907- )XZU300,320,330,34#)
95333-06040	Hose	Fuel Tank & Tube ([07.1999 - ] FUEL TANK W(SUB TANK) (9907- )XZU300,320,330,34#)
95333-08030	Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter)	Fuel Tank & Tube ([07.1999 - ] FUEL TANK W(SUB TANK) (9907- )XZU300,320,330,34#)
96132-51100	Clip (For Hose)	Fuel Tank & Tube ([07.1999 - ] FUEL TANK W(SUB TANK) (9907- )XZU300,320,330,34#)
96132-51300	Clip(For Ventilation Hose No.2)	Fuel Tank & Tube ([07.1999 - ] FUEL TANK W(SUB TANK) (9907- )XZU300,320,330,34#)
96713-19017	New Genuine Part	Fuel Tank & Tube ([07.1999 - ] FUEL TANK W(SUB TANK) (9907- )XZU300,320,330,34#)
96713-24011	New Genuine Part	Fuel Tank & Tube ([07.1999 - ] FUEL TANK W(SUB TANK) (9907- )XZU300,320,330,34#)

Source: Public OEM parts-catalog data
Variants: 2 / 5
Category: 331
Collected: 2026-08-03
